COMPONENTS OF CHILLER
4. COMPONENTS OF CHILLER

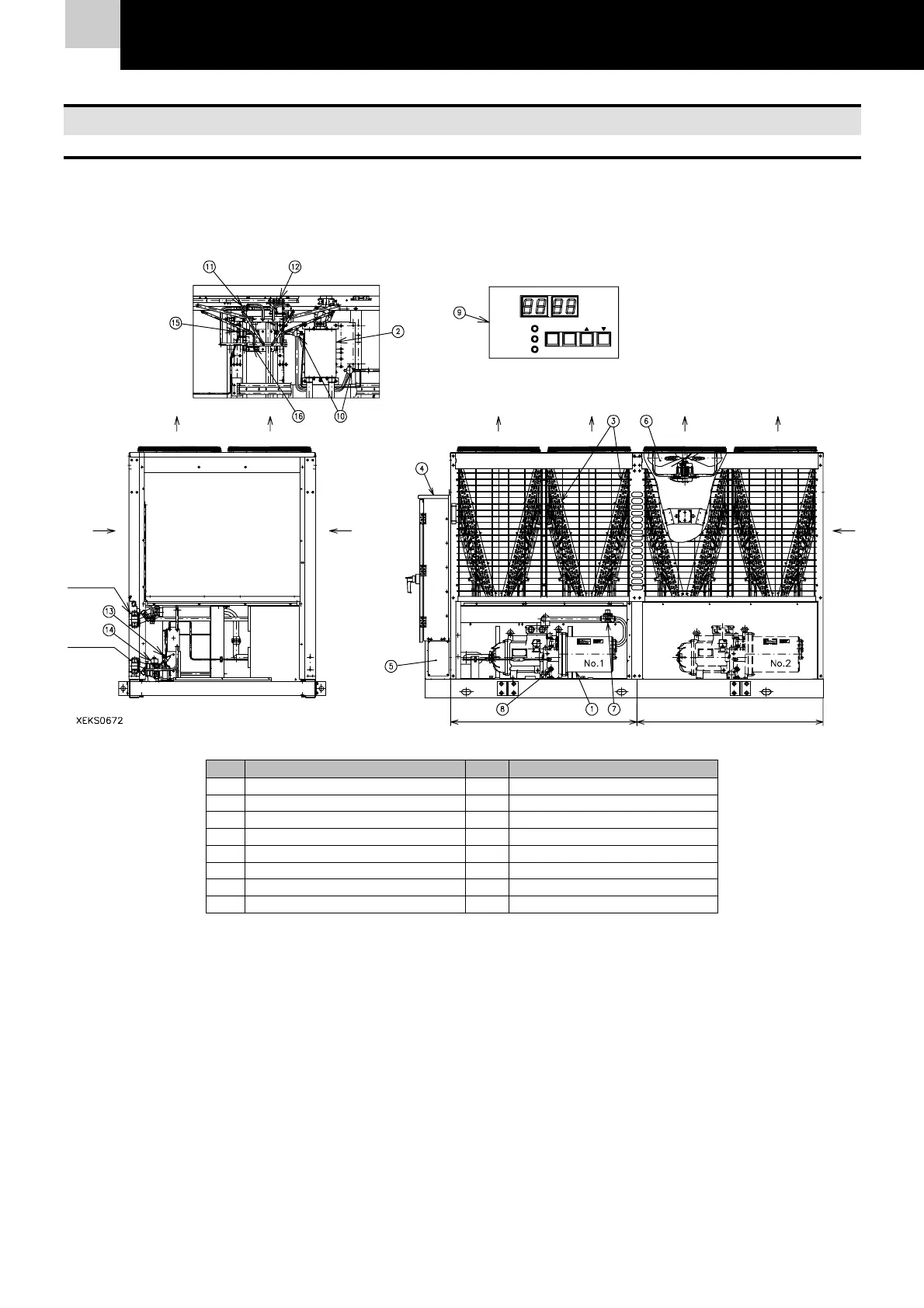

4.1. STRUCTURE DRAWING
"
HITACHI Air-Cooled Water Chiller (Example of 2 Compressor Chiller)
N°
°°
°
Name
N°
°°
°
Name
1 Compressor 9 Operation Switch
2 Water Cooler 10 Expansion Valve
3 Condenser 11 Liquid Line Stop Valve
4 Electrical Box 12 Dryer Strainer
5 Power Wiring Supply 13 Liquid Sight Glass
6 Fan 14 Solenoid Valve
7 Check Valve 15 Regulation Valve
8 Oil Sight Glass 16 Economizer
Air Inlet
Air Outlet
Air Outlet
Air Inlet Air Inlet
Water Inlet
Water Outlet
N°1 CYCLE
N°2 CYCLE
Air Outlet
Detail of LPIPE structure.
Remote/ Local Changeover
Switch is Rear Side.
POWER
OPERATION
ALARM
ON
OFF
CHECK
