PREPARATION INITIAL CHECK
5
/
9

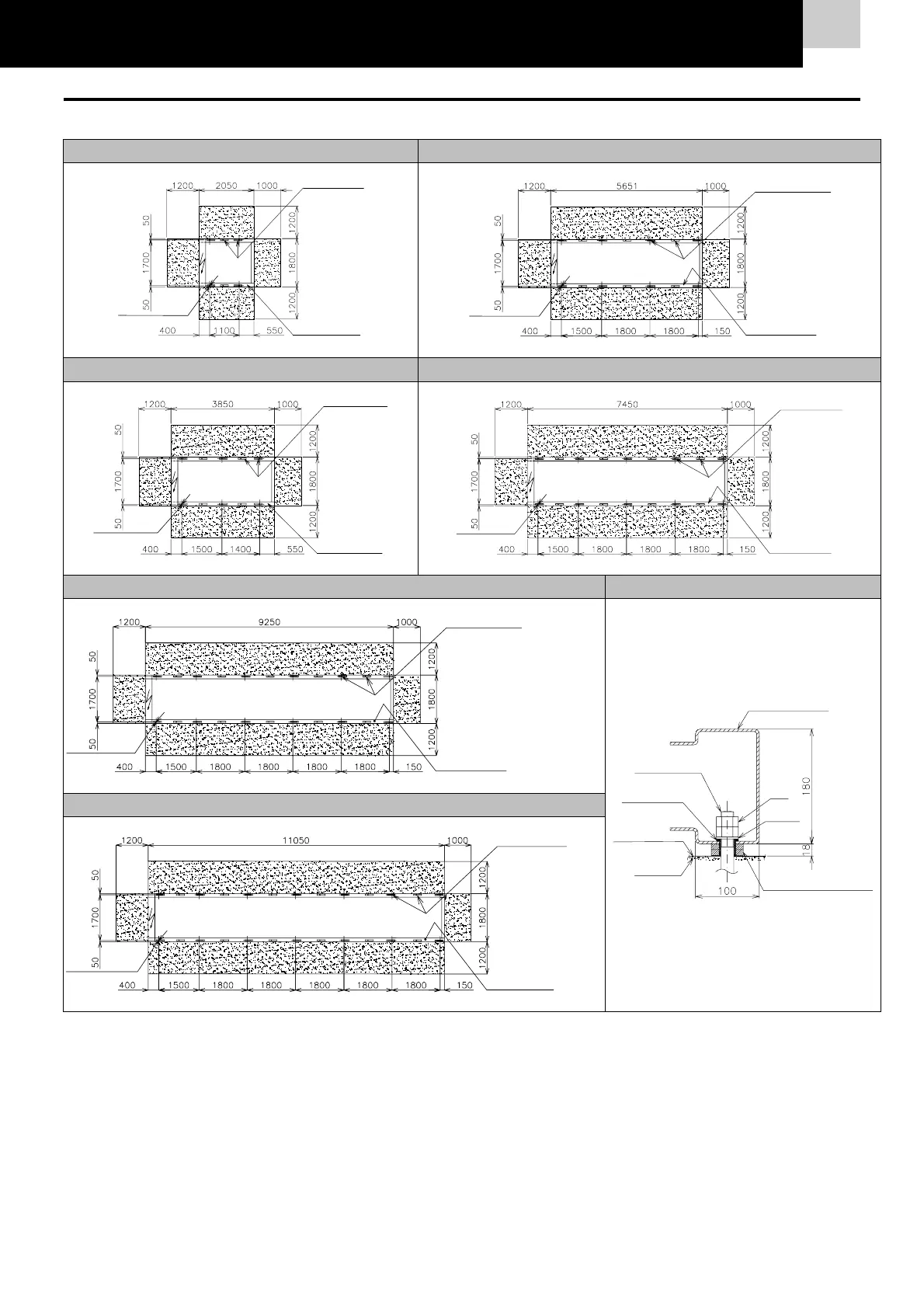

5.4. SERVICE SPACE AND FOUNDATION
RCUE 40, 50, 60, 70AG1 RCUE 150, 180, 200AG1
RCUE 80, 100, 120, 140AG1 RCUE 240, 270AG1
RCUE 300, 330AG1 Detail Of Foundation
RCUE 360, 400AG1
6-Ø26
(Mounting Holes)
Bottom Frame
Vibration-proof
Rubber mat
(10 positions)
4-Ø26
(Mounting Holes)
Bottom Frame
Vibration-proof
Rubber mat
(6 positions)
8-Ø26
(Mounting Holes)
Bottom Frame
Vibration-proof
Rubber mat
(14 positions)
Bottom Frame
Vibration-proof Rubber mat
(2 mats per position)
(OPTION)
Concrete
Steel Plate (1mm)
Rubber bush
(OPTION)
Foundation bolt
(M20)
Nut
Washer
Bottom Frame
Vibration-proof
Rubber mat
(18 positions)
10-Ø26
(Mounting Holes)
Vibration-proof
Rubber mat
(22 positions)
Bottom Frame
12-Ø26
(Mounting Holes)
Vibration-proof
Rubber mat
(26 positions)
Bottom Frame
14-Ø26
(Mounting Holes)
