PREPARATION INITIAL CHECK
5.3. CENTRE OF GRAVITY
Centre of Gravity

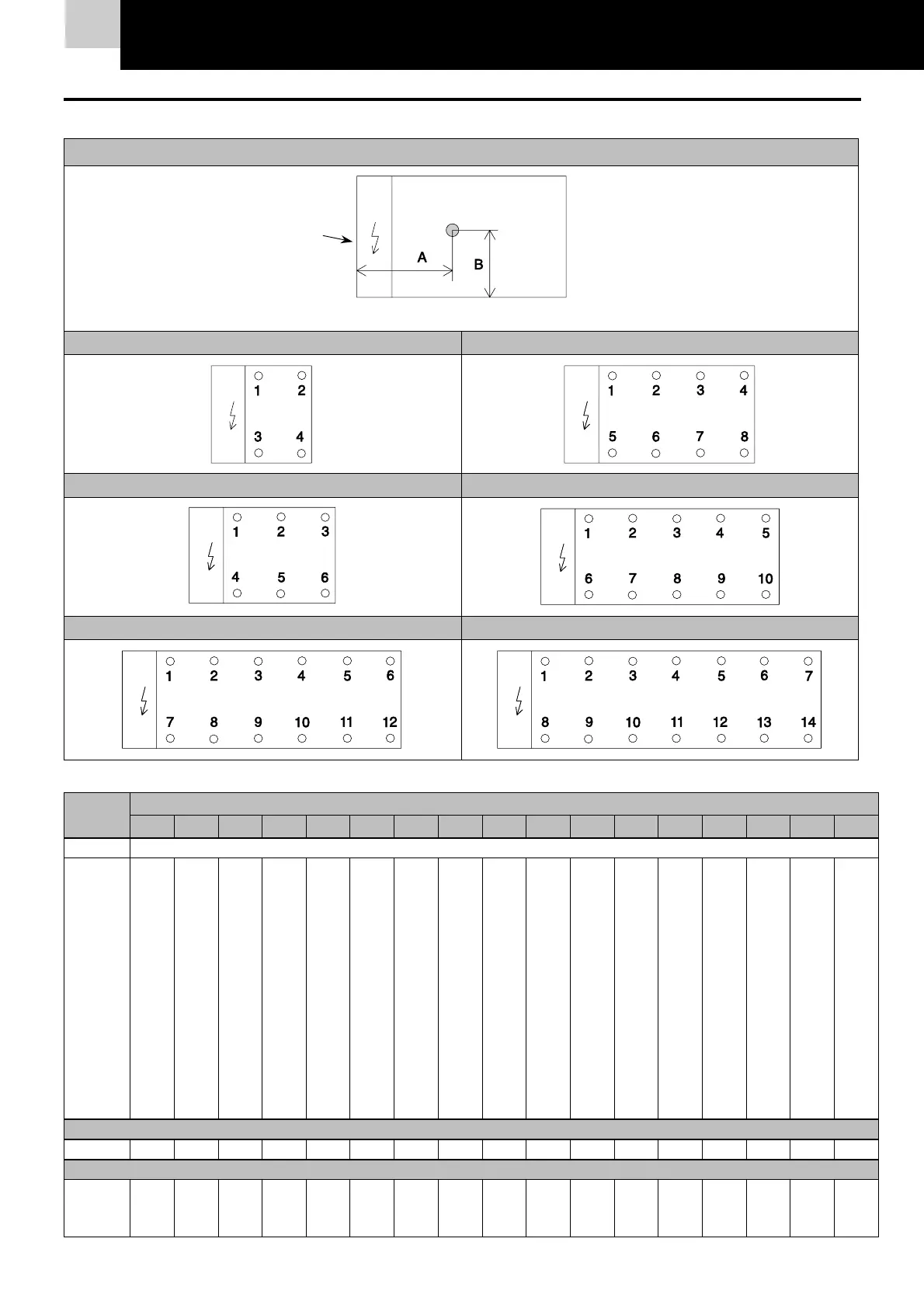

Fig.3. Centre of Gravity
RCUE 40, 50, 60, 70AG1 RCUE 150, 180, 200AG1
RCUE 80, 100, 120,140AG1 RCUE 240, 270AG1
RCUE 300, 330AG1 RCUE 360, 400AG1
RCUE–AG1
Model
40 50 60 70 80 100 120 140 150 180 200 240 270 300 330 360 400
Location Weight Distribution (kg)
1 321 333 368 372 385 401 448 453 447 489 495 513 520 530 536 540 547
2 321 333 368 372 385 401 448 453 447 489 495 513 520 530 536 540 547
3 459 477 527 533 385 401 448 453 447 489 495 513 520 530 536 540 547
4 459 477 527 533 552 575 642 650 447 489 495 513 520 530 536 540 547
5 552 575 642 650 641 701 710 513 520 530 536 540 547
6 552 575 642 650 641 701 710 735 744 530 536 540 547
7 641 701 710 735 744 759 769 540 547
8 641 701 710 735 744 759 769 774 784
9 735 744 759 769 774 784
10 735 744 759 769 774 784
11 759 769 774 784
12 759 769 774 784
13 774 784
14 774 784
Operating Weight
(Kg) 1,560 1,620 1,790 1,810 2,810 2,930 3,270 3,310 4,350 4,760 4,820 6,240 6,320 7,730 7,830 9,200 9,320
Location of Centre of Gravity (mm)
Dimension
A
1,000 1,000 1,000 1,000 1,900 1,900 1,900 1,900 2,800 2,800 2,800 3,700 3,700 4,600 4,600 5,500 5,500
Dimension
B
750 750 750 750 750 750 750 750 750 750 750 750 750 750 750 750 750
Centre of Gravity
Control Panel
