Hitachi SJ100 Series - Inverter Dimensions for Mounting

Step-by-Step Basic Installation
Inverter Mounting
and Installation
2–8

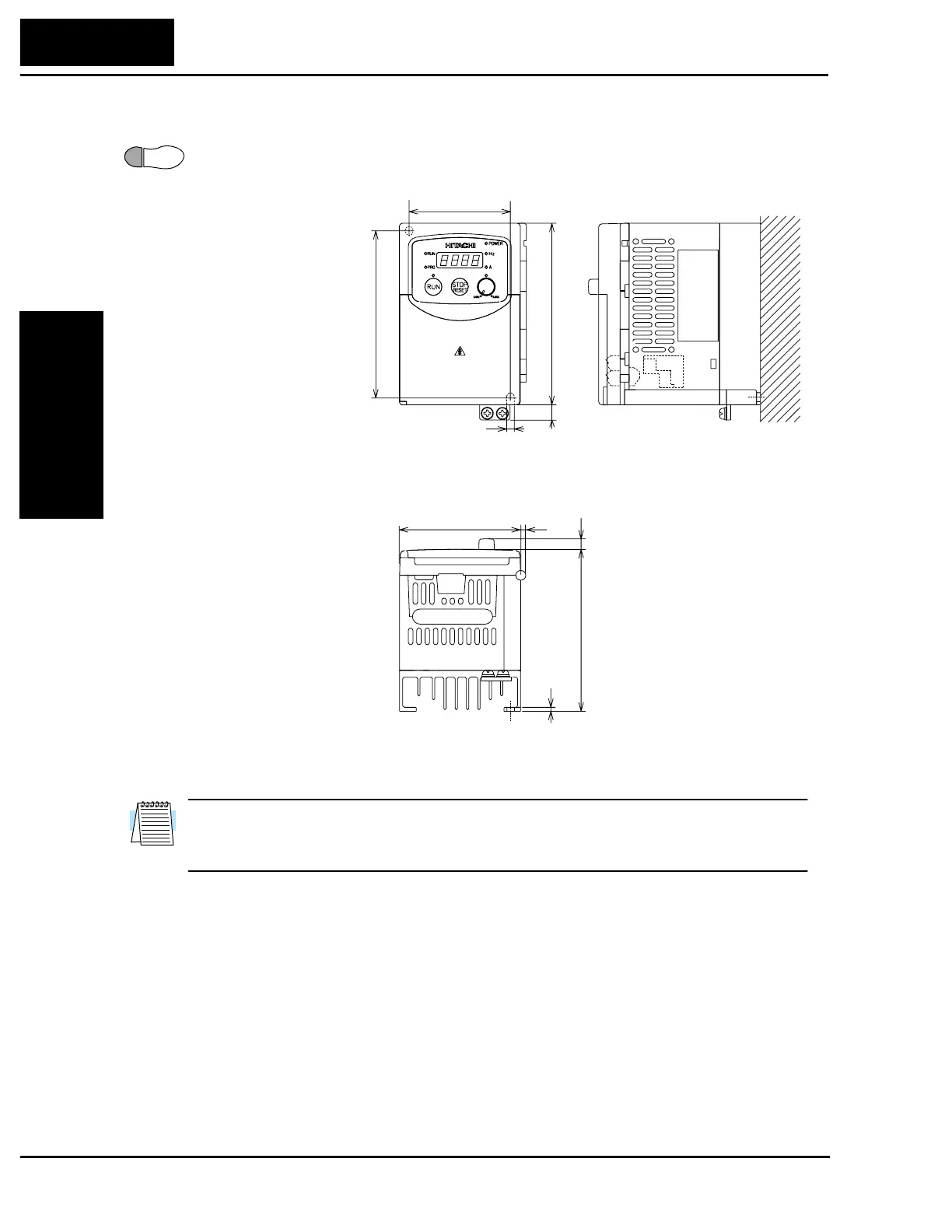

Inverter Dimensions for Mounting
Step 4: Locate the applicable drawing on the following pages for your inverter.
Dimensions are given in millimeters (inches) format.
NOTE: Some inverter housings require two mounting screws, while others require four.
Be sure to use lock washers or other means to ensure screws do not loosen due to
vibration.
4
MODEL H mm (in.)
External Dimensions
SJ100
-
002NFE
-002NFU
-004NFE
-004NFU
93 (3.66)
93 (3.66)
107 (4.21)
107 (4.21)
67(2.64)
110(4.33)
120(4.72)
5(0.20)
10(0.39)
80(3.15)
4(0.16)
7(0.28)
H=107(4.21)
2.5(0.10)
-005NFE
107 (4.21)
