Hardware overview

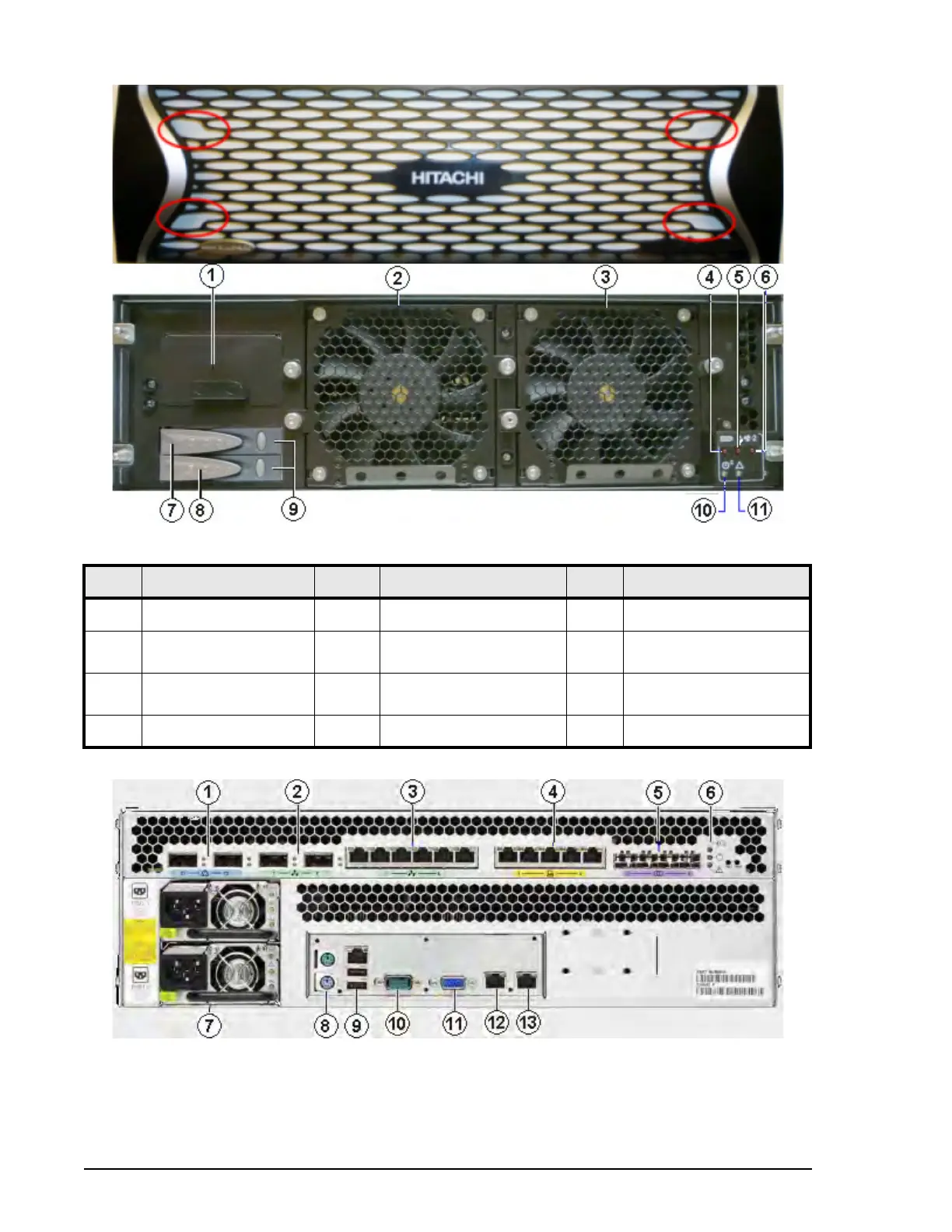

Figure 2-6 File module server, front view
Item Description Item Description Item Description
1
NVRAM backup battery
2
Fan 1
3
Fan 2
4
NVRAM battery backup
pack status LED
5
Fan 1 status LED
6
Fan 2 status LED
7
Hot-swappable power
supplies
8
Keyboard (purple) and
mouse (green) ports
9
USB ports
10
Serial port (RS-232)
11
Monitor port
Figure 2-7 File module server, rear view
