Hitachi VB 13Y - Page 17

--- 14 ---

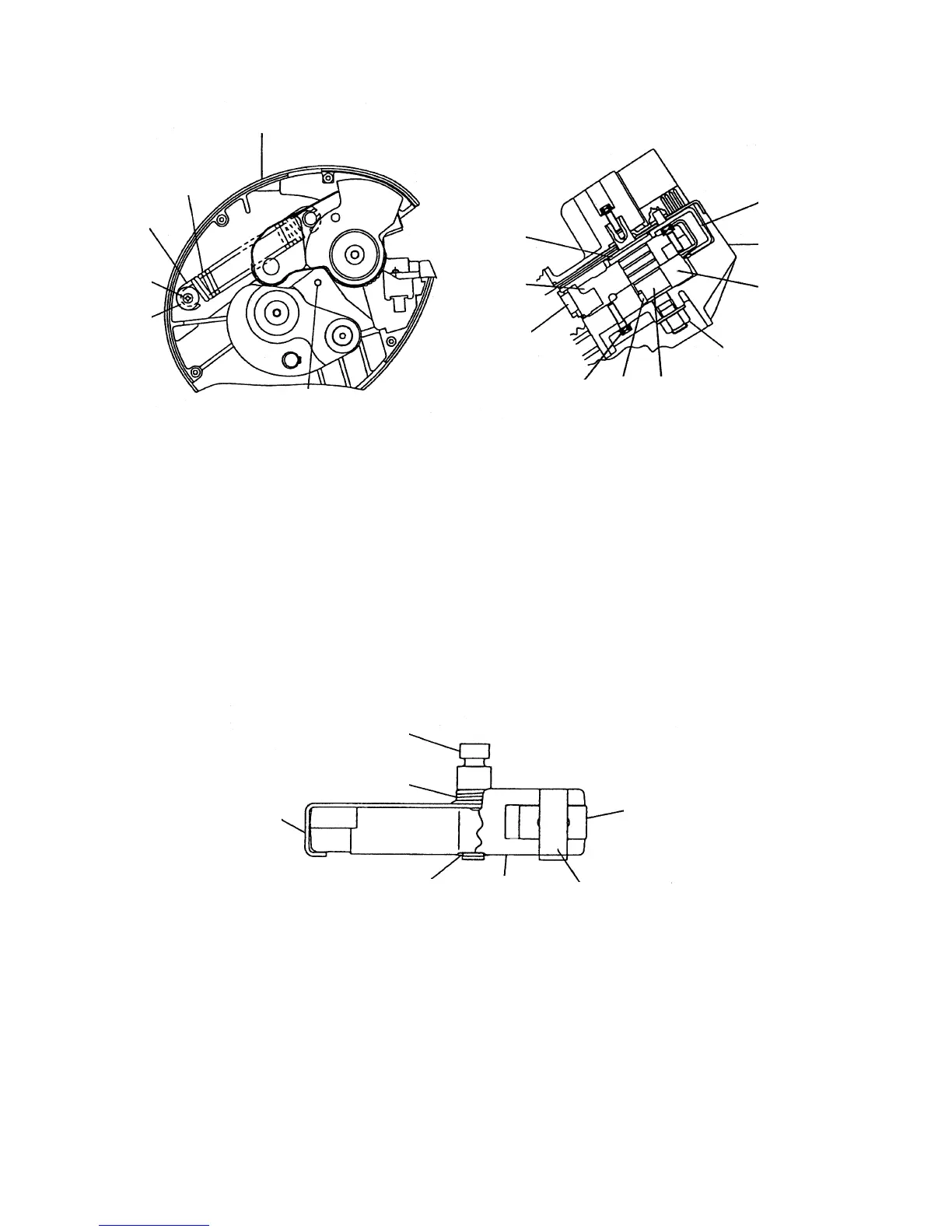

Fig. 19 Fig. 20
(8) Disassembly of bracket (A) and (B) unit (Fig. 20)
Press the Bolt (A) [65] with a hand press supporting Bracket (A) [68]. Then the Feather Key [66], Bracket (A)
[68] and Bracket (B) [73] can be removed.
(9) Disassembly of bracket (A) unit (Fig. 21)
1) Remove the Retaining Ring for D9 Shaft [61]. Then the Pin for Spring [72], Spring (C) [71] and Cutter
Guard [70] can be removed.
2) Pull out the Needle [60] with a hand press to remove Roller (C) [62] from Bracket (A) [68].
(10) Disassembly of the cam shaft unit (Fig. 22)
Remove the Cam [8] and two Feather Keys [34] from the Cam Shaft [12] with a hand press.
Fig. 21
[39]
[13]
[38]
[36]
[37]
[67]
[64]
[68]
[34]
[67]
[66]
[65]
[63]
[13]
[73]
[72]
[71]
[70]
[61] [68]
[62]
[60]
Hook
