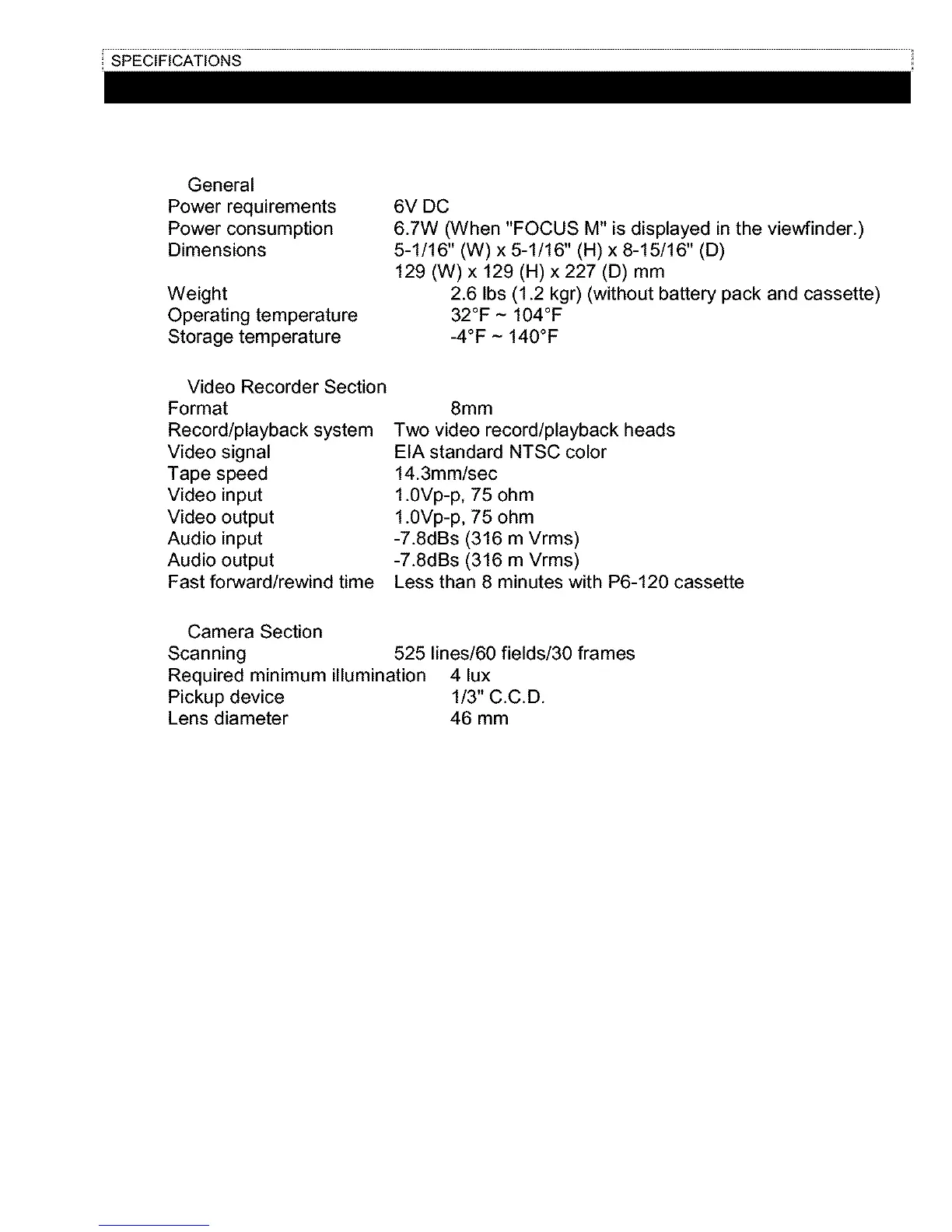

General
Power requirements
Power consumption
Dimensions
Weight
Operating temperature
Storage temperature
6V DC
6.7W (When "FOCUS M" is displayed inthe viewfinder.)
5-1/16" (W) x 5-1/16" (H) x 8-15/16" (D)
129 (W) x 129 (H) x 227 (D) mm
2.6 Ibs (1.2 kgr) (without battery pack and cassette)
32OF~ 104OF
_4OF~ 140OF
Video Recorder Section
Format
Record/playback system
Video signal
Tape speed
Video input
Video output
Audio input
Audio output
Fast forward/rewind time
8mm
Two video record/playback heads
EIA standard NTSC color
14.3mm/sec
1.0Vp-p, 75 ohm
1.0Vp-p, 75 ohm
-7.8dBs (316 m Vrms)
-7.8dBs (316 m Vrms)
Less than 8 minutes with P6-120 cassette
Camera Section
Scanning 525 lines/60 fields/30 frames
Required minimum illumination 4 lux
Pickup device 1/3" C.C.D.
Lens diameter 46 mm
