Hitachi WJ200 Series Quick Reference Guide

Chapter 3 Appearance
5

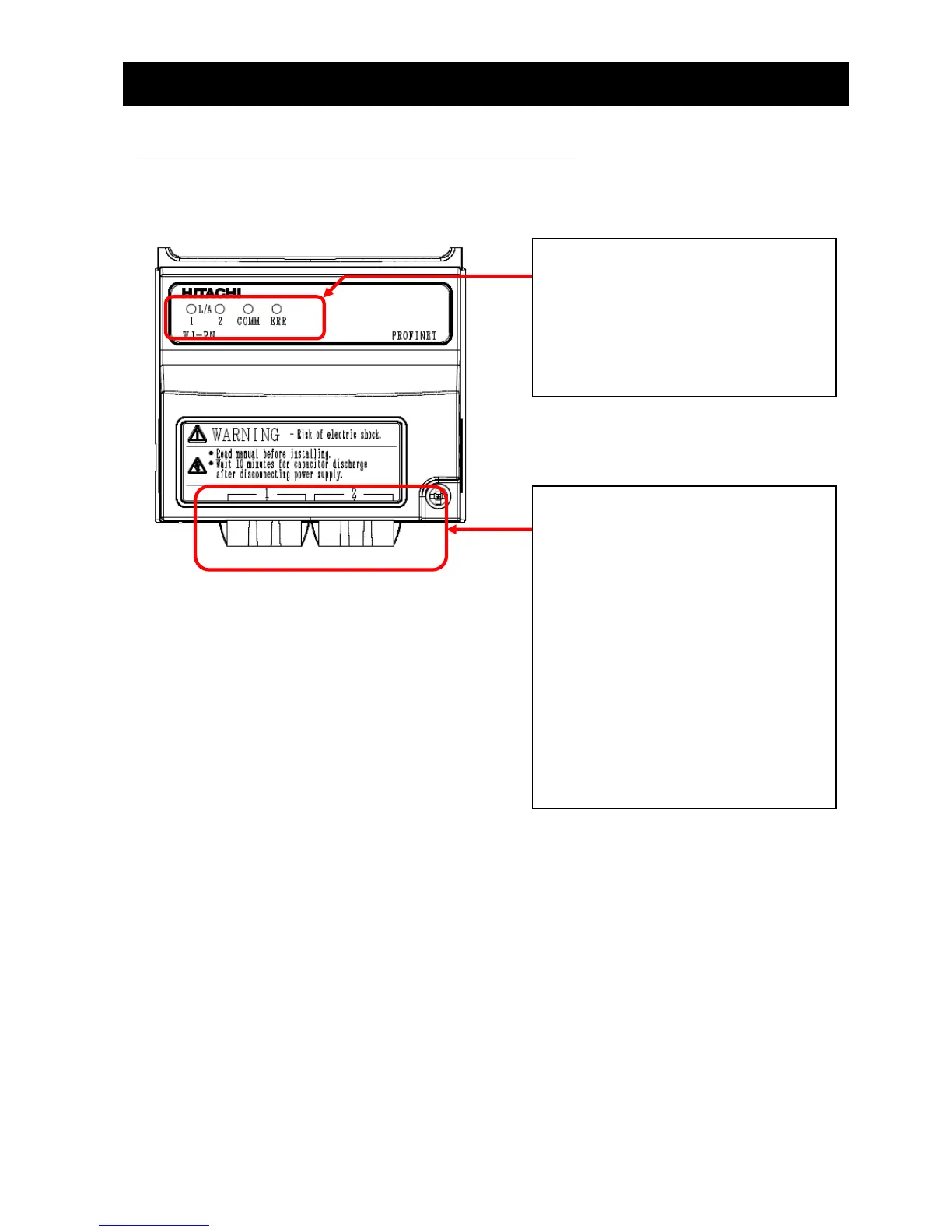

3.1 Appearance and each part name
The following is the external description of WJ-PN. For more information about LEDs and connectors,
please refer to the page mentioned.
LEDs:
These LEDs describe PROFINET states.
From left side:
- L / A 1
- L / A 2
- COMM
- ERR
Connectors:
You can connect the option to the
PROFINET network via these
connectors. Connector type is RJ-45,
electrical characteristics conform to
IEEE802.3 standard.
The left side is port 1, and the right side
is port 2.
NOTE:
Please fix the connected PROFINET
cables to prevent mechanical failure by
the vibration/gravity.
Install the ferrite core (included in
shipment) on the LAN cables (both port
1 and 2) near the connectors.

Hitachi WJ200 Series Specifications

General

Series	WJ200
Output Frequency	0.1 to 400 Hz
Control Method	V/f Control, Sensorless Vector Control
Overload Capacity	150% for 60 seconds
Enclosure	IP20
Communication	RS-485 (Modbus RTU)
Input Voltage	200-240V AC, 380-480V AC
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan cooled
Braking Unit	Built-in
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault
Analog Inputs	2
Analog Outputs	1
