Ec
lipse 7 Air
craft Contr
ols and Switch Assignments
Aircraft(ACRO) Section
19

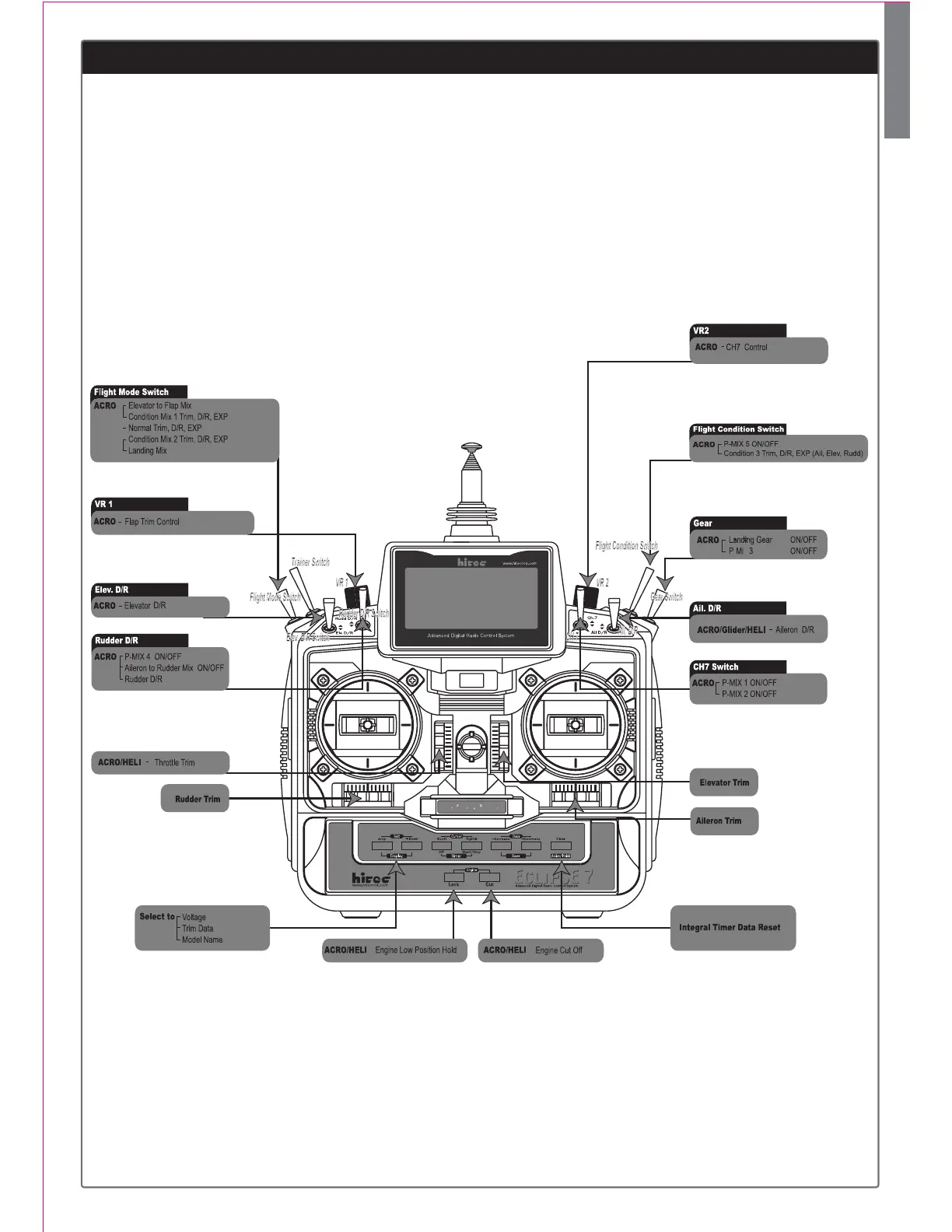

This figure shows the assignments for a
Mode 2
system as supplied by the factory for the North
American version.
Note that some of the functions will not operate until activated in the mixing menus.
18
20
Table of Contents
System Instruction Manual
2
Table of Contents
2
Introduction to the Eclipse 7 System
3
About this Manual
3
Eclipse 7 System Options
3
Flying Safety
4
Airplane Frequencies
4
Radio Installation Notes
5
Notes on Servos
5
Mounting
5
Servo Throw
5
Switch Harness Installation
5
Receiver Notes
5
Antenna
5
Connectors
5
Using the Aileron Extension
5
Vibration and Waterproofing
5
Other Adjustments
6
Adjustable Length Control Sticks
6
Stick Lever Tension Adjustment
6
Throttle Ratchet Change
6
Changing the Eclipse 7 Transmitter's Mode
6
Factory Service Repair Information
6
Eclipse 7 Controls and Switch Assignments Mode I
7
Transmitter Input Buttons
8
Receiver - Servo Connection List
8
Transmitter Displays & Messages
8
Warning Displays
9
Model Setup Functions
9
MODL - Model Select
10
COPY - Copy Model
10
ACRO, HELI, GLID - Model Type Select
10
Wing & Swashplate Type Selection
10
Model Name
11
Transmit Shift - SFT.N, SFT.P
11
TIME -Timer Function Setup
12
REST - Data Reset
12
Simple Transmitter Setup - Aerobatic Airplane (Acro)
13
Aircraft (Acro) Menu Functions
13
Simple Aerobatic Airplane Transmitter Setup
13
Airplane Model Function Descriptions
18
EPA - End Point Adjust
18
D/R - Dual Rates
18
D/R Dual Rates
18
EPA End Point Adjust (Servo Travels)
18
And Switch Assignments
19
EXP - Exponential
20
FLT.C - Flight Condition Menu
20
EXP Exponential Settings
20
FLT.C Flight Condition Select
20
STRM- Subtrim Settings
21
S.TRM Subtrim
21
REV - Servo Reversing
22
T.CUT - Throttle Cut(Engine Shut Off)Function
22
PMX1 to PMX5 - Programmable Mixes 1, 2, 3, 4, & 5
22
REV Servo Reverse
22
T.cut
22
PMX1-5 Programmable Mixer #1 - #5 (Five Total)
22
LAND - Landing Function
23
FLPT - Flap Trim Function
23
E->F - Elevator Flap Mixing
23
E->F Elevator Flap Mixing
23
LAND Landing Function Settings
23
FLPT Flap Trim
23
A->R - Aileron Rudder Mixing
24
ELVN - Elevon Mixing
24
A->R Rudder Coupling
24
ELVN Elevon Mixing (Tailless Models)
24
VTAL - V-Tail Mixing
25
VTAL V-Tail Mixing
25
FLPN - Flaperon Mixing
26
FLPN Flaperon (Combined Flaps & Ailerons)
26
Aircraft Flight Trimming Chart
27
Aircraft Trimming Chart
27
Glider (GLID) Menu Functions
28
Voltage/Timer Display Normal Display Mode
28
Eclipse 7 Glider Controls
29
And Switch Assignments
29
Competition Glider Quick Setup Instructions
30
Glider Model Function Descriptions
32
ADIF - Aileron Differential
32
VTAL - V-Tail Programming
33
E->F - Elevator Flap Mixing
33
A->R - Aileron Rudder Mixing
33
F->A - Flap Aileron Mixing
33
F->E - Flap Elevator Mixing
33
CROW - Crow Mixing (Airbrakes)
34
S.TM1, 2 - Speed Flap Trim Offsets
35
(4WNG Only)
35
AIL.T - Aileron Trim
35
A->F - Aileron Flap Mixing (4WNG Only)
35
DFL.T - Dual Flap Trim (4WNG Only)
36
Sailplane Trimming Chart
37
And Switch Assignments
38
Eclipse 7 Helicopter (HELI) Programming
39
Helicopter Setup Instructions
39
Menu Descriptions - Helicopter
41
Flight Conditions
41
R->T - Rudder Throttle Mixing
42
GYRO - Gyro Settings
42
HOLD - Throttle Hold
42
THCV - Throttle Curve
43
PTCV - Pitch Curve
43
RVMX - Revolution Mixing
44
SWAH - Swashplate Adjust (120', 180' Only)
44
Hovering Throttle Adjustment Knob
45
Hovering Pitch Adjustment Knob
45
Helicopter Flight Trimming Chart
45
Adjusting Hovering Pitch and Hovering Throttle
45
ACRO Model Data Recording Sheet
46
Glossary
46
GLID Model Data Recording Sheet
47
HELI Model Data Recording Sheet
47
