Model Setup Functions
7

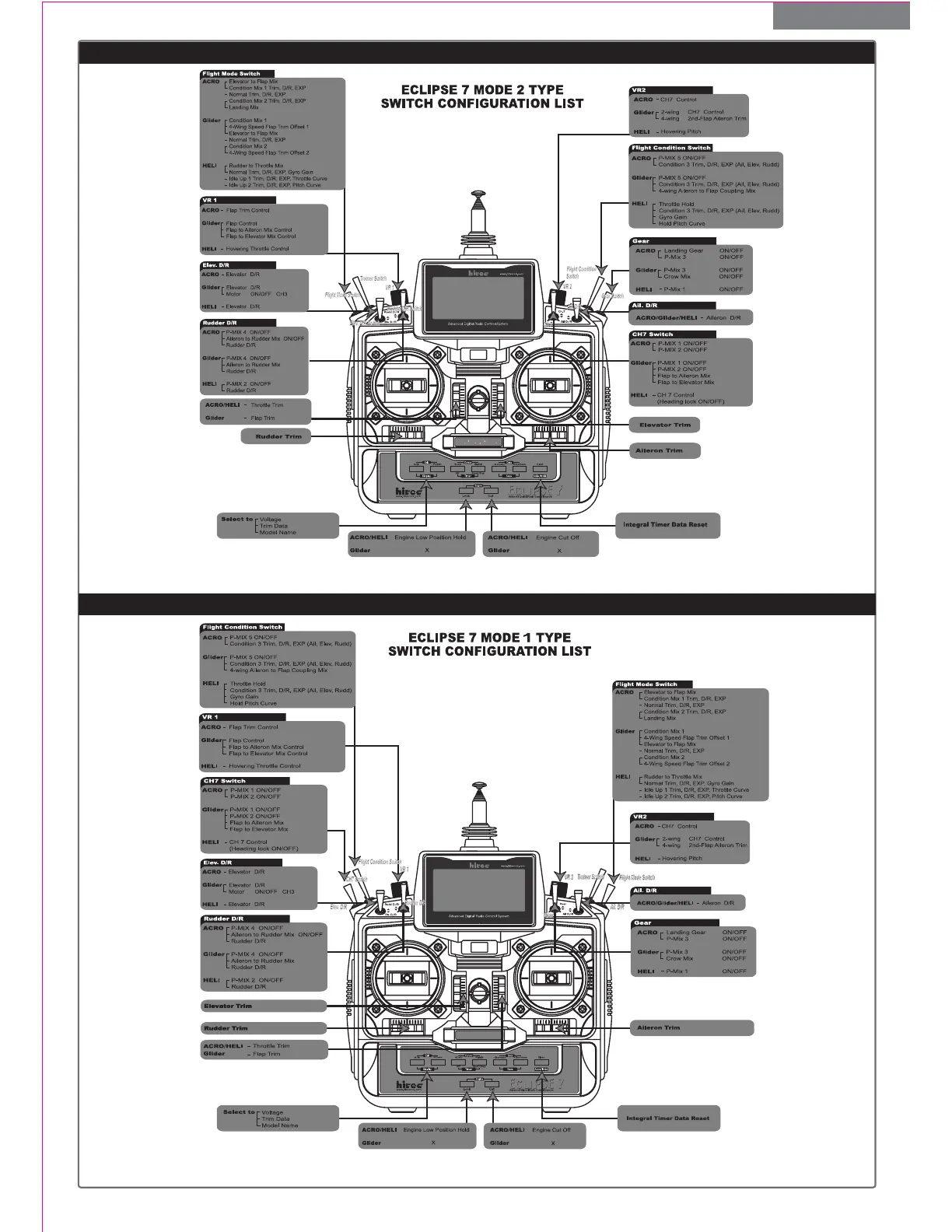

Eclipse 7 "Mode 2" Controls and Switch Assignments
Eclipse 7 "Mode 1" Controls and Switch Assignments
This figure shows the assignments for a Mode 2 system as supplied by the factory in North America.
Note that some of the functions will not operate until activated in the mixing menus.
This figure shows the assignments for a Mode 1 system as supplied by the factory (not in North American versions).
Note that some of the functions will not operate until activated in the mixing menus.
