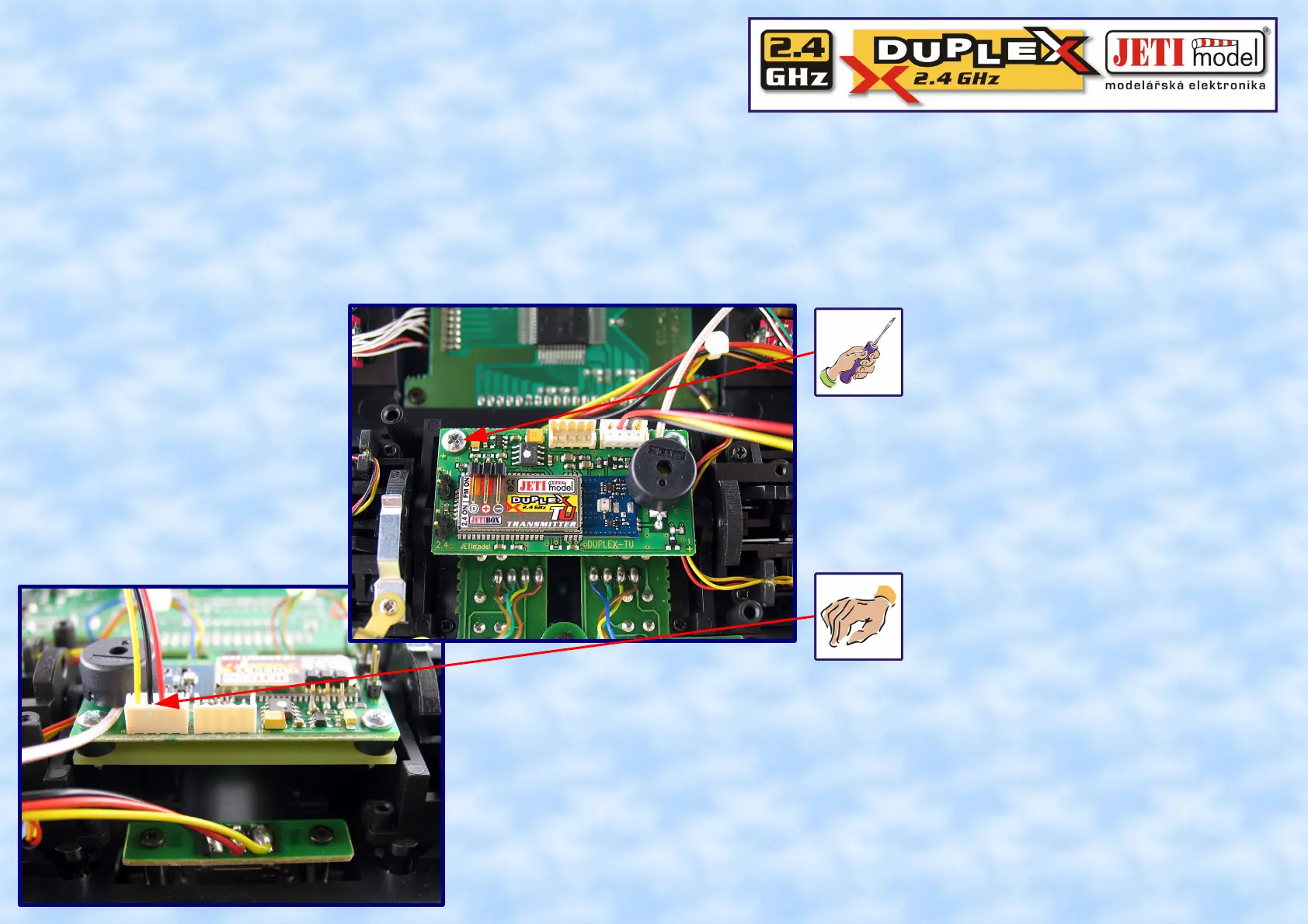

Screw Duplex TU module
to the carrier board
Connect Duplex module
with the transmitter by
cable
Fix Duplex TU module with remaining distance bars and screws from assembly kit.
Connect Duplex TU module with the transmitter by cabel from assembly kit.
