HITEC X1 mini User Manual

16 17
Charger Operation [cont.]

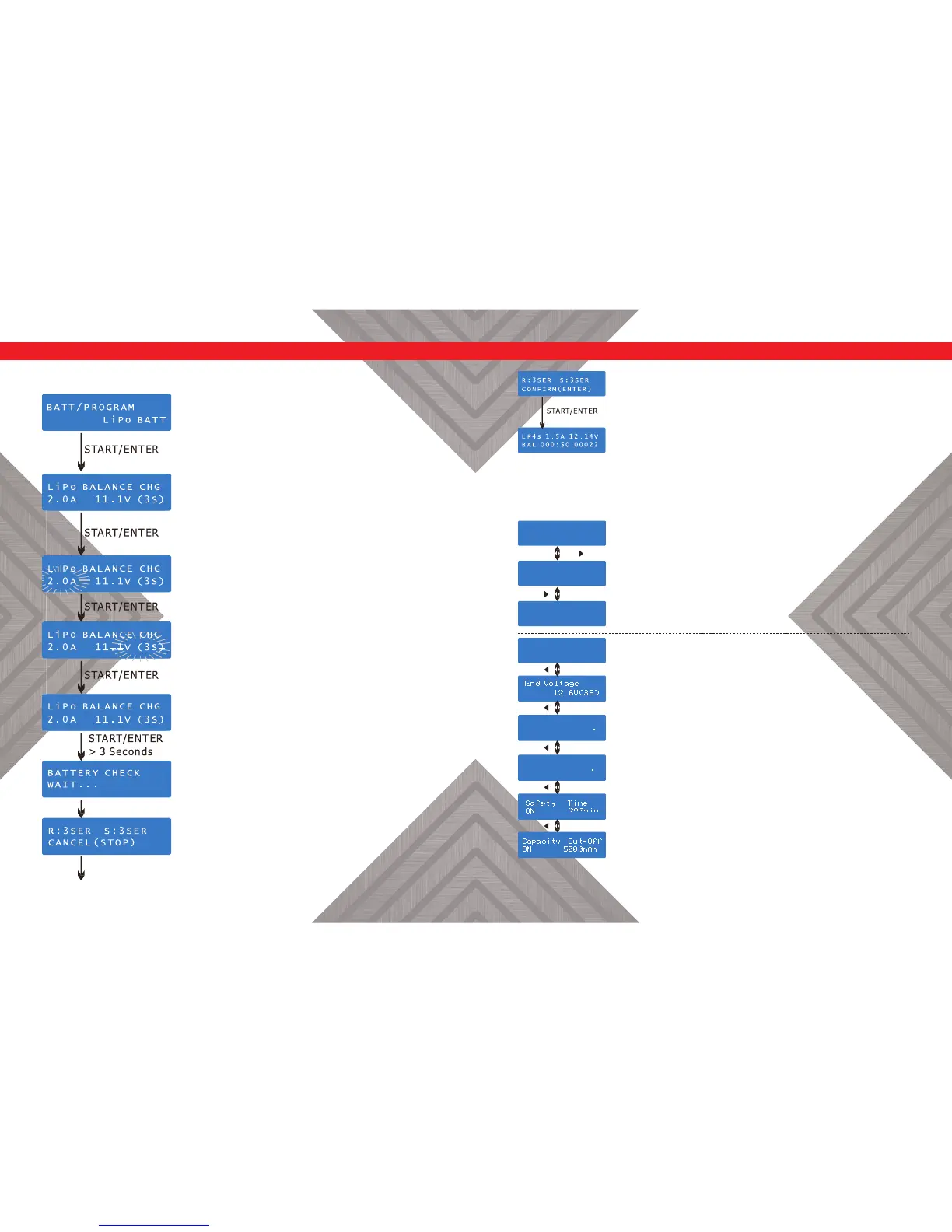

The following steps describe how to manualy setup the X1 mini:
Charger Operation [cont.]
3. BATT/PROGRAM Select: Press INC and DEC to
scroll through all programs and press START/ENTER
to enter the LiPo BATT Program.
4. Mode Select: Press INC and DEC to scroll through
all modes and press START/ENTER to enter LiPo
Balance Charge Mode.
5. Battery Setting: Press START/ENTER. The current
value will start to blink, Press INC and DEC to
change the value and press START/ENTER to con rm
your setting.
At the same time, the battery cell’s number will start
to blink. Press INC and DEC to change the value and
press START/ENTER to con rm your setting.
6. Program Start: Press and hold START/ENTER for 3
seconds to start the program.
The charger is detecting the number of cells.
R shows the number of cells detected by the
charger and S is the number of cells set by the
user at the previous screen. If the numbers are not
identical, press STOP to go back to the previous
screen and recheck the number of cells in the
battery pack before proceeding.
L P 4 s 1 . 5 A 1 2 . 1 4 V
B A L 0 0 0 : 5 0 0 0 0 2 2
INC
4 . 0 7 4 . 0 6 4 . 1 1 V
0 . 0 0 0 . 0 0 0 . 0 0 V
INC
F u e l = 9 0 % C
e l l = 4 . 1 0 V
L P 4 s 1 . 5 A 1 2 . 1 4 V
B A L 0 0 0 : 5 0 0 0 0 2 2
DEC
DEC
Ext. Temp ----
Int. Temp 37 C
DEC
Temp Cut-Off
50 C
DEC
DEC
If both numbers are identical, press START/ENTER to begin
the charging process.
Information Displayed While Operating
Pressing INC or DEC during the charging or discharging process allows the user
to view a variety of information on the LCD screen.
Real-time status: battery type, battery cell, charge current,
battery voltage, elapsed time and charged capacity.
7. Charging Status Monitor: During the charge process, the
real-time status will be visible on the left side of the screen.
Voltage of each cell in the battery pack when the battery is
connected with balance lead.
Charged capacity percentage and average cell voltage of the
battery pack.
Cut o temperature.
Final voltage when the program ends.
Internal and External temperature.
(Temperature probe required to show external temperature.)
Capacity cut-o ON and the setting value of capacity.
Safety timer ON and duration of time in minutes.
8. Program Stop: During the charging process, press STOP
to stop the charging process.
9. Program Complete: When the charging process  nishes, an audible sound will play.
