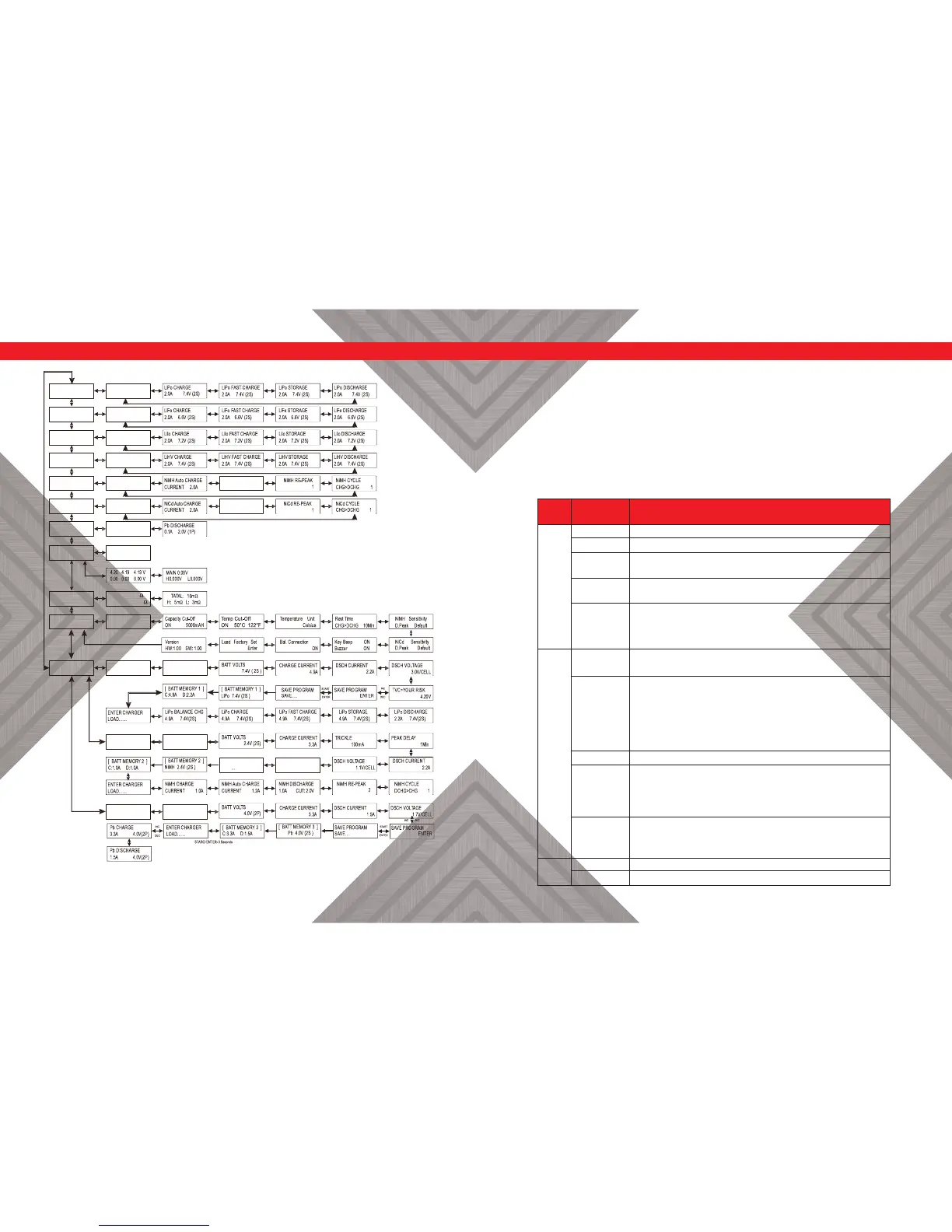

Program Flow Chart
For larger version visit www.hitecrcd.com
Charger Operation
Note: You should set up the upper limit of the charge current to
avoid damage by excessive feeding current. Some batteries of low
resistance and capacity can lead to higher current.
lithium battery which
NiMH
NiCd
RE-PEAK
CYCLE
Pb
Batt
Type
Operation
Program
Description
This charging mode is for charging LiPo/LiFe/LiIon/LiHV battery in normal mode.
This program is for charging or discharging
will not be used for long time.
The charging capacity may be less than normal charging but the
process time will be reduced.
This mode is for balancing the voltage of lithium-polymer battery
cells while charging.
The charger will charge NiMH and NiCd batteries using the
charge current set by the user.
In this program the charger detects the condition of the battery
which is connected to the output and automatically charges the
battery.
In re-peak charge mode, the charger can peak charge the
battery once, twice or three times in a row automatically. This is
good for confirming the battery is fully charged, and for checking
how well the battery receives fast charges.
1 to 5 cyclic and continuous process of charge>discharge or
discharge>charge is operable for battery refreshing and
balancing to stimulate the battery's activity.
LiPo
Lilon
LiFe
LiHV
CHARGE
DISCHARGE
STORAGE
FAST CHG
BAL CHARGE
CHARGE
AUTO CHG
DISCHARGE
CHARGE
DISCHARGE
This mode is for discharging LiPo/LiFe/LiIon/LiHV battery.
This mode is for discharging NiMH/NiCd battery.
This mode is for charging Pb battery.
This mode is for discharging Pb battery.
It is highly recommended to have the owchart handy while learning to operate
this charger. There are two main ways to setup the charger:
(1) Memory pro le are available for setting and storing charge or discharge
parameters for up to 10 di erent batteries. Once a battery’s information is
stored into memory, it will be retained until changed again manually. Recalling a
battery’s memory number makes the charger instantly ready to go!
(2) The other method is by manually setting up the charge or discharge process
each time. The X1 mini is capable of the following processes:
To Next Page
