Hitron CODA-551x User’s Guide

Click Confirm Setup in the EasyConnect: Wireless Settings screen. The following

screen displays.

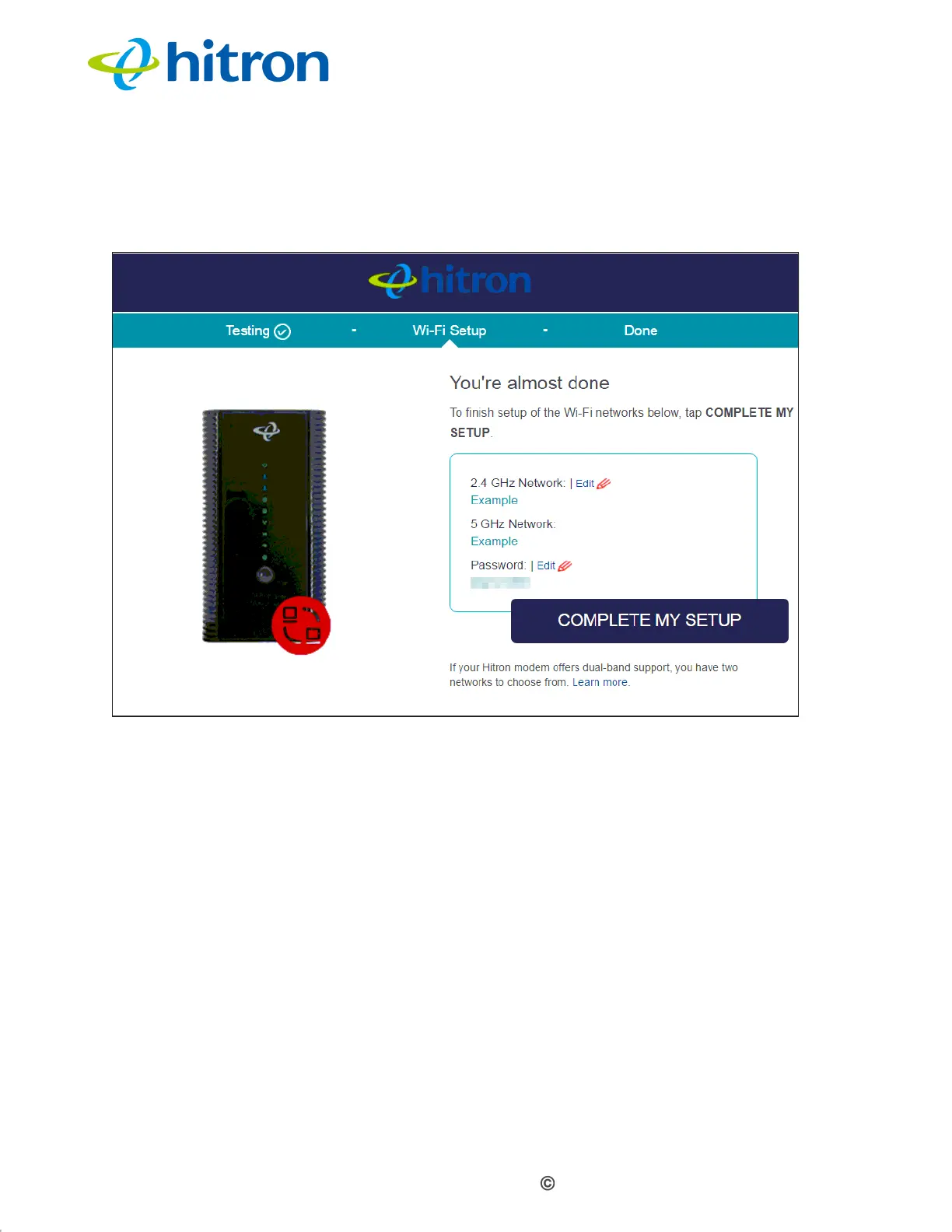

Figure 11: The EasyConnect: Setup Completion Screen

If you are happy with the settings, click Complete my setup.

NOTE: If you changed settings, make sure you keep a note of the new details.

Alternatively, click a setting’s Edit link to modify it before clicking Complete my

setup.
