1. Press and at the same time to execute Reset.
2. Press for 3 sec. to clear all stored points (depends on user's requirements to setup).
3. Use jog buttons or to move gripper to gripping center point and press to save button.
Ready indicator blinks 1 times when saved successfully.
4. Use jog buttons or to adjust gripping travel range, press 3 sec. to save tolerance point.
Ready indicator blinks 3 times when saved successfully (depends on user's requirements to
setup).
5. Use jog buttons or to move gripper to release point and press to save. Ready indicator
blinks 1 times when saved successfully.
[Explanation 1] Be sure to perform Reset during the period of setting and power restarting.
[Explanation 2] When gripping center point and release point are not set or setting is not
complete, full travel is gripped.

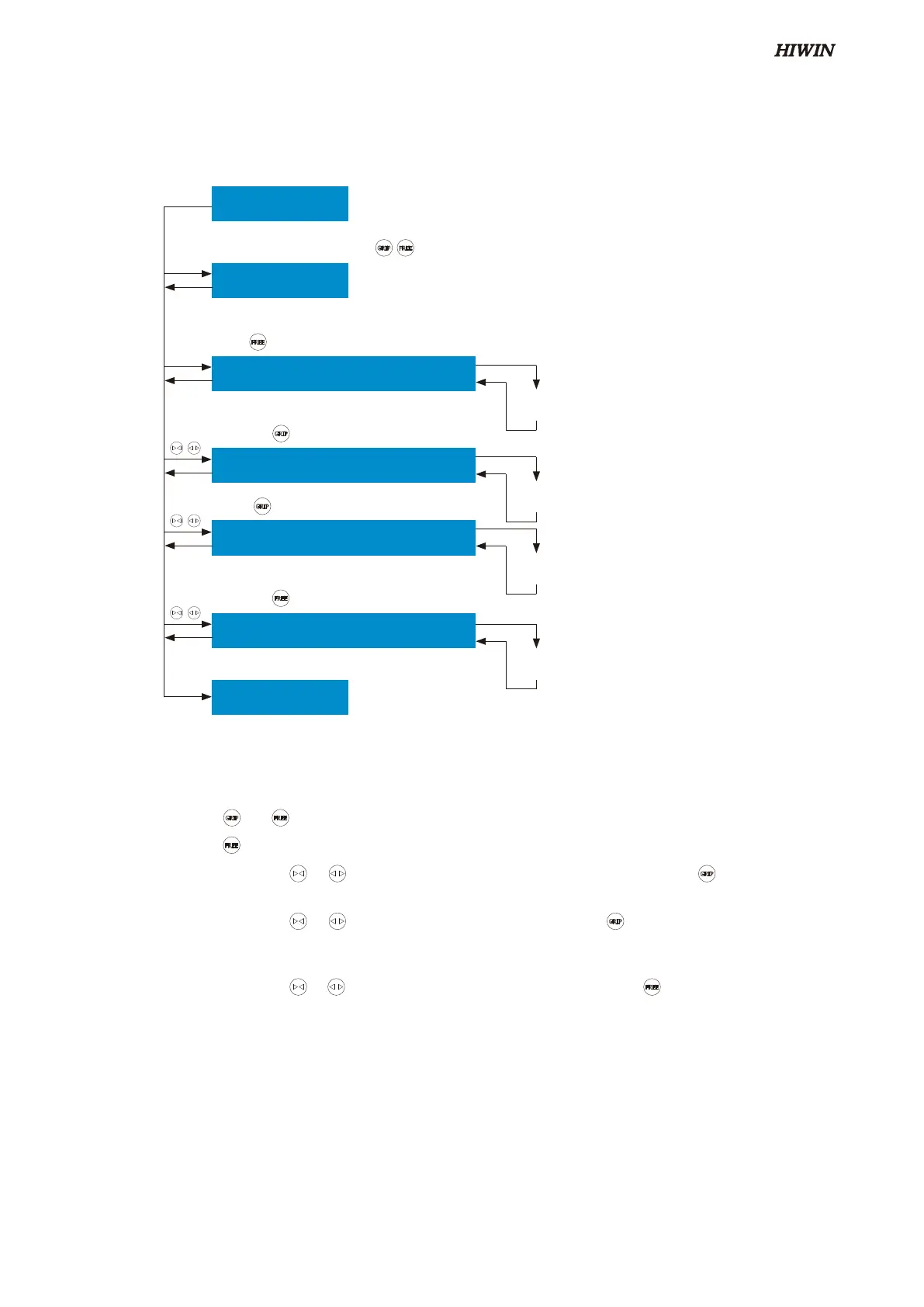

• Setup process
• Setup steps
Ready OFF
Reset
Clear all stored points
Gripping center
Tolerance point
Release point
Ready ON
Press at the same time
3 Sec.
3 Sec.
Be sure to perform Reset after powering up
Depends on user's requirements to setup
Depends on user's requirements to setup
LED Blue
Blinks 1 times
LED Blue
Blinks1 times
LED Blue
Blinks 3 times
LED Blue
Blinks 3 times
C11UE01-1907
15
