Hiwin S Series User Manual

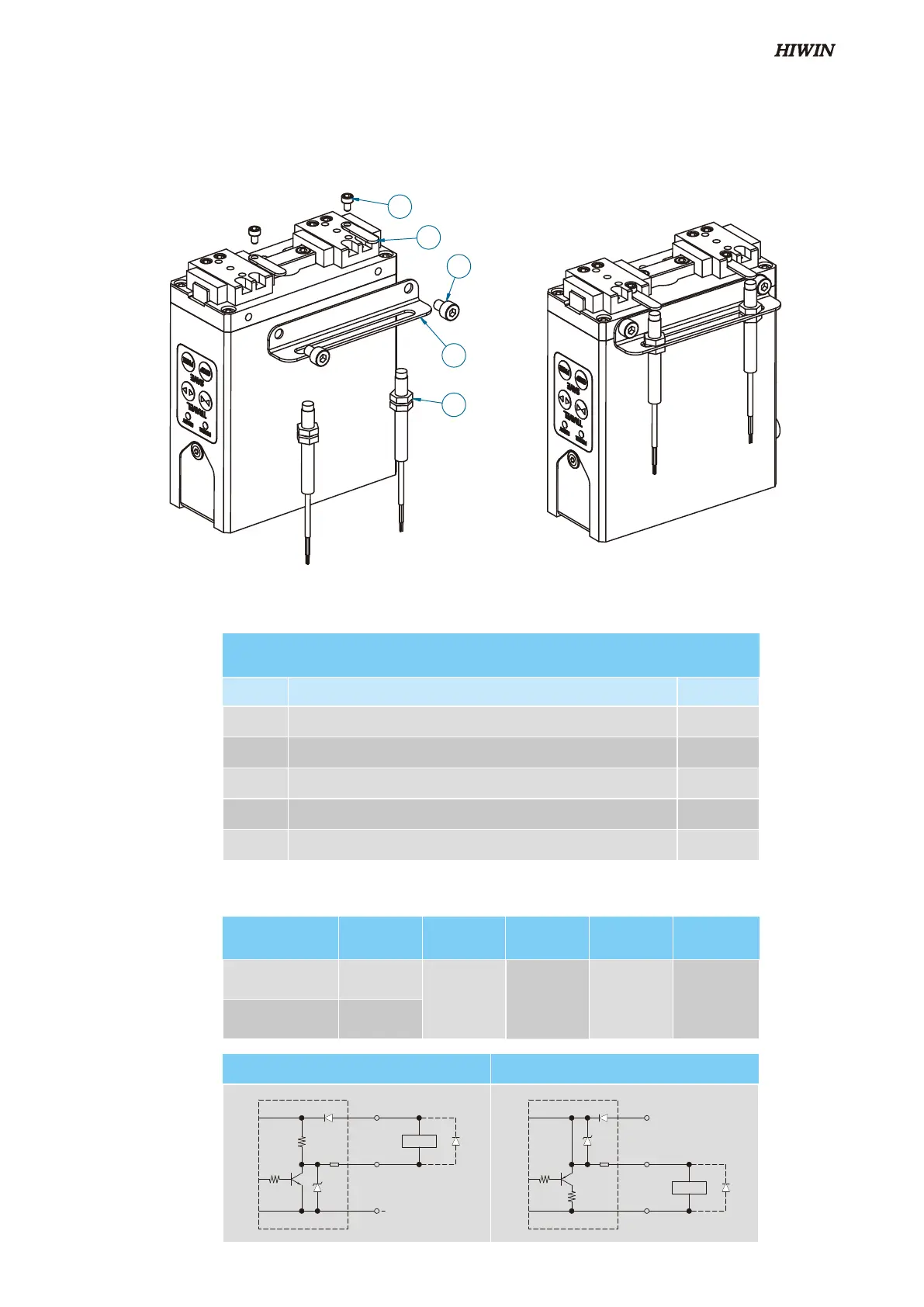

• SEG-24 sensor installation
1
2
3
4
5
SEG-24 sensor accessory kit
Item Name Amount
1 S24 sensor rack 1
2 Bolt (M4X0.7PX6L SUS) 2
3 S24 sensor plate 2
4 Bolt (M2.5X0.45PX4L SUS) 2
5 Proximity switch [Note 1] 2
[Note 1] Refer to table below for proximity switch specifications.
SEG-24
Sensor - assembly exploded diagram
SEG-24
Sensor - assembled product diagram
Specifications
Output
state
Output
method
Sensing
distance
Response
frequency
Operating
voltage
PM05-02N NO
NPN 1.5 mm 2.5 KHz 10~30 VDC
PM05-02NB NC
NPN PNP
Load
+10~30VDC1.Brown
3.Black
4.Blue
Output
4.7K
NPN
Load
+10~30VDC
1.Brown
3.Black
4.Blue
Output
4.7K
PNP
Load
+10~30VDC1.Brown
3.Black
4.Blue
Output
4.7K
NPN
Load
+10~30VDC
1.Brown
3.Black
4.Blue
Output
4.7K
PNP
C11UE01-1907
25
