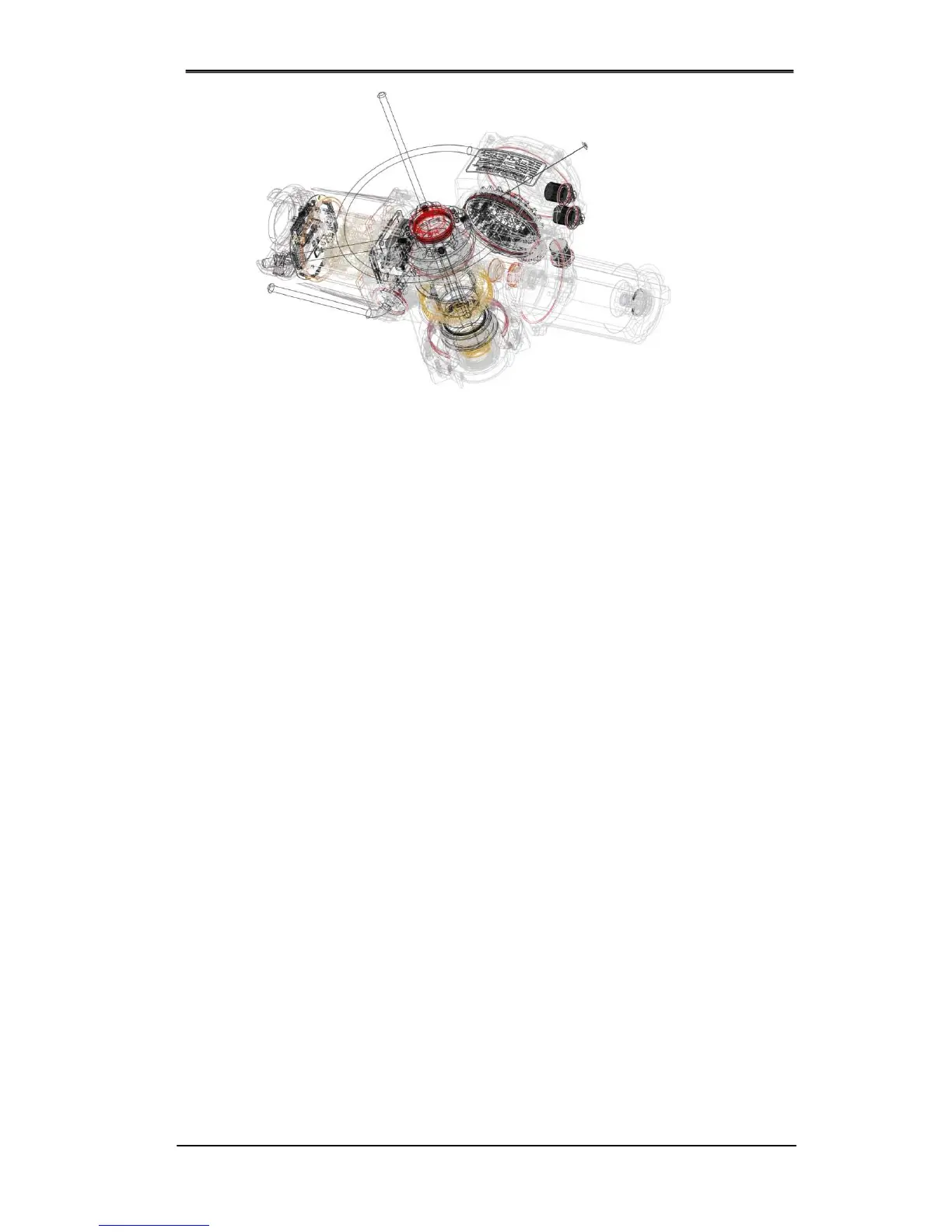

3.3 HM Standard Technical Data ( Standard )
Enclosure Rated Weatherproof IP67, IP68 (10m 72Hr) IEC60529
Enclosure High grade aluminium alloy, corrosion coated (HM04~HM60)
Nodular graphite cast iron& High grade aluminium alloy corrosion
coated (HM100~HM300)
Power Supply 110 / 220 VAC 1 Ph, (HM08,20,40) *HM40 Only 220V~
220 / 380 / 420 / 440/ 460/ 480V ~600V AC 3 Ph, 50/60Hz
Power voltage tolerance ± 10%
Starting voltage drop - 15%
(maximum)
Duty Rating HM04~300 3ph: 60starts/hour 15Minutes rated
HM08,20,40 1ph: 60starts/hour 15Minutes rated
HMS04~40: 1200starts/hour S4-50%
Torque HM04~300 3ph: 14~3000Nm direct drive. When combined with
gear box, up to 43000Nm or 500,000Nm quarter-turn available
HM08,20,40 1ph: 25Nm~450Nm
HMS04~40: 25Nm~450Nm
Motor induction motor
Monitoring Switches 4 Switches, 250 VAC 16A rating option: 8 Switches ~16 Switches
Travel Angle 0~10,000,000 turn
Indicator Digital Display position indicator
Signal lamp unit red : open , green : close , yellow : fault
Manual Override Declutch able manual override
Self Locking By means of worm gear
Conduit Entries PF1” x4 PF1½”X1
option(Explosion) : NPT1” x4EA, NPT1½”X1EA
Design Life Torque & thrust test: 50,000 Cycles
Lubrication Grease moly EP
Ambient Temperature -30 °C ~ + 70 °C
External Coating Anodizing & Dry powder polyester
Anti Vibration XYZ 1G 10~1000HZ
Anti Shock 5g Peak acceleration
Valve to” HM “interface Multi turn/ ISO5210 Part turn/ ISO5211
Local control & set up Two rotary selectors (control mode & local control)
Setup: setting tool ( remocon: remote control )
LCD’s displays
