Mounting Base
PCD A
B
Caution ;
 Do not attempt to work on your HKC actuator without first shutting off all
incoming power.
 Do not attach ropes or hooks to the hand wheel for the purpose of lifting by
hoist.

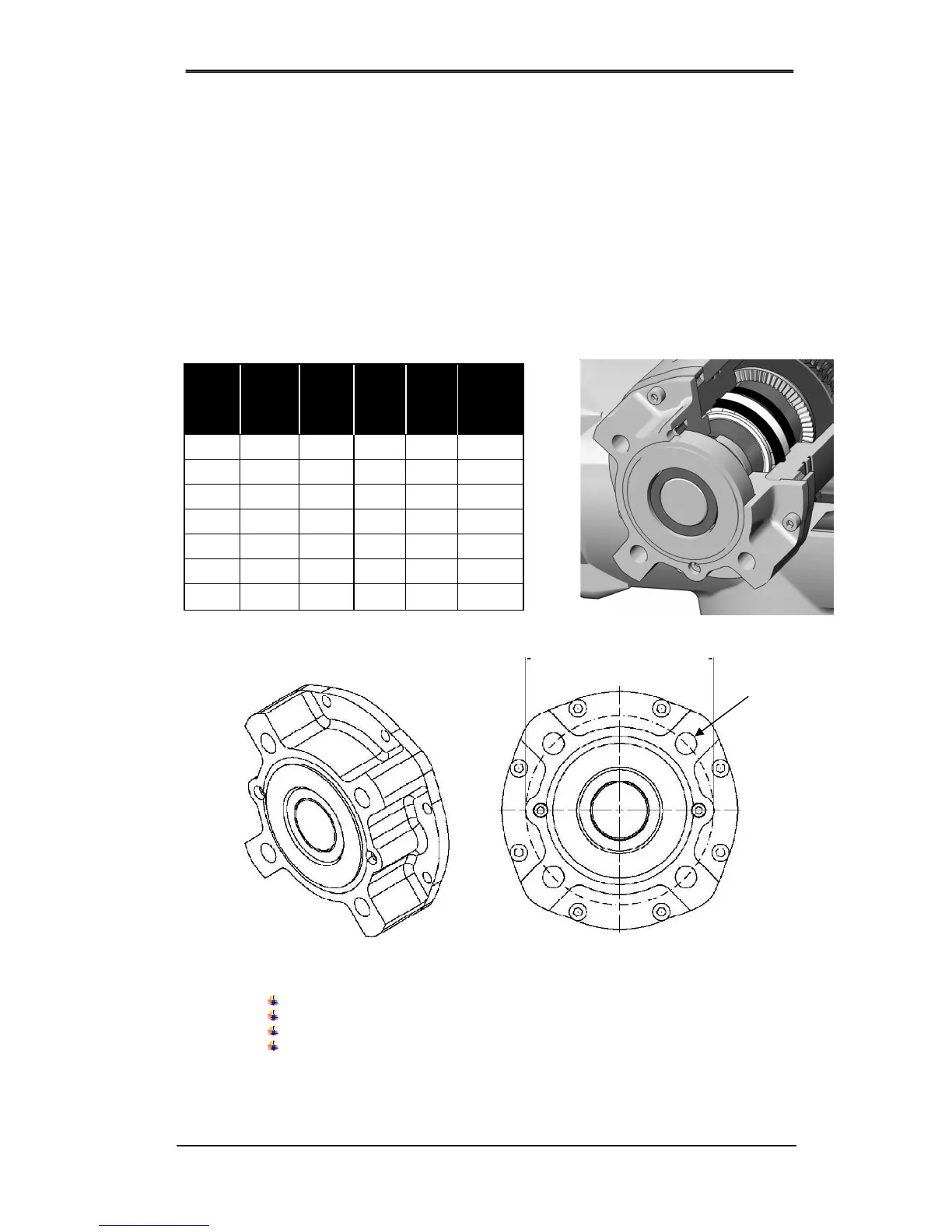

4.3.Actuator Mounting Details (ISO5211&5210)
4.3.1 Mounting base
Table : Torque and thrust values / ISO5210
Flange
Torque
Thrust
PCD
A
B
Number
of
Type
N.m Kn
mm
Bolt
F10 100 40
102
M10
4
F12 250 70
125
M12
4
F14 400 100
140
M16
4
F16 700 150
165
M20
4
F25 1,200
200 254
M16
8
F30 2,500 325
298
M20
8
Note :FLANGE SIZE
HM-004,008,011 (F10)
HM-020,040 (F14)
HM-060 (F16)
HM-100,150,200,300 (F25,F30)
