HKS EVC - Swing Valve Type

−14−
２．２．SwingValveType

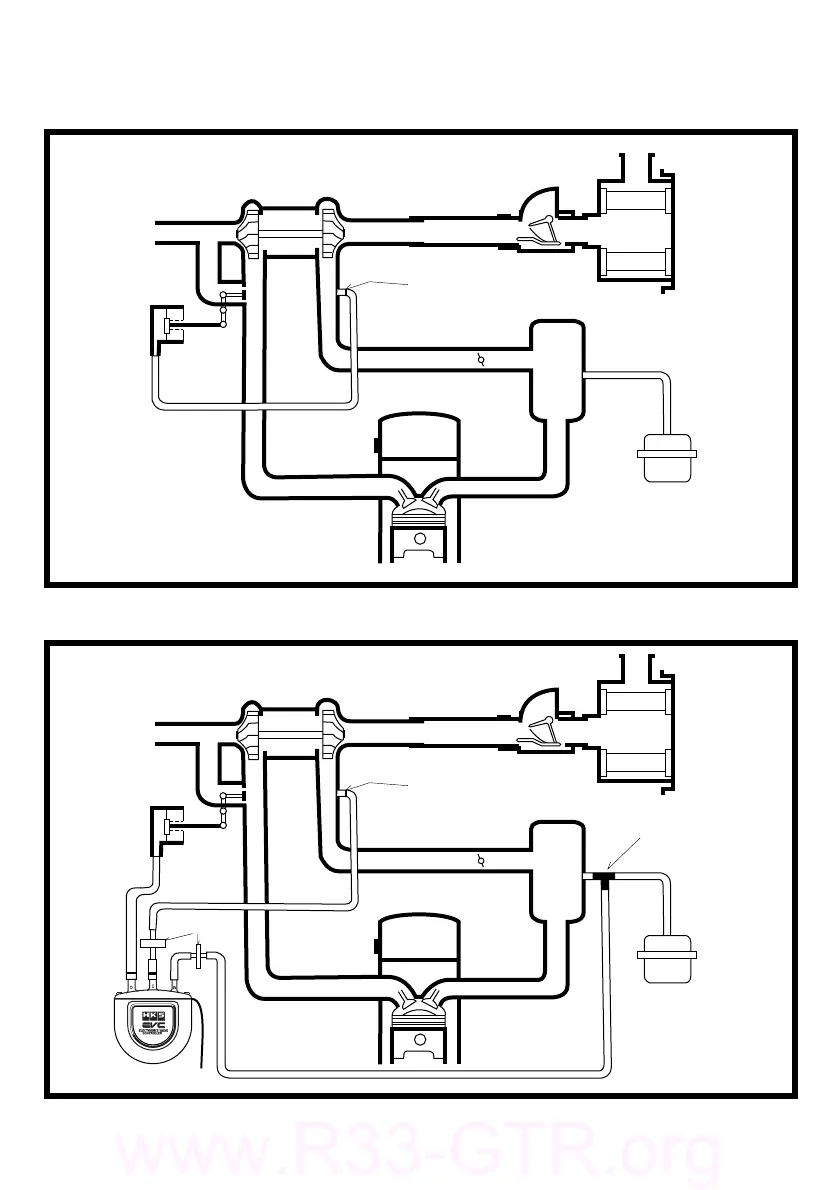

BeforeInstallation（BasicConnectionLayout）
AfterInstallation
Turbine
Actuator
Compressor
AirflowMeter
AirFilter
Nipple①
6mmHose
ThrottleValve
Intake
Manifold
FuelPressure
Regualtor
２．２．１．ForApplicationswithoutaBoostSolenoidValve
Turbine
Actuator
Compressor
AirflowMeter
AirFilter
Nipple①
6mmHose
ThrottleValve
Intake
Manifold
FuelPressure
Regulator
4mmHose
4x4x4mm
T‑Fitting
6mmHose
VacuumFilter
ＥＶＣSteppingMotor
