HLU HF R 48 R Series User Manual

14
06.2019
Operating manual
Centrifugal fans
HF R | RV | MRV
www.hlu.eu

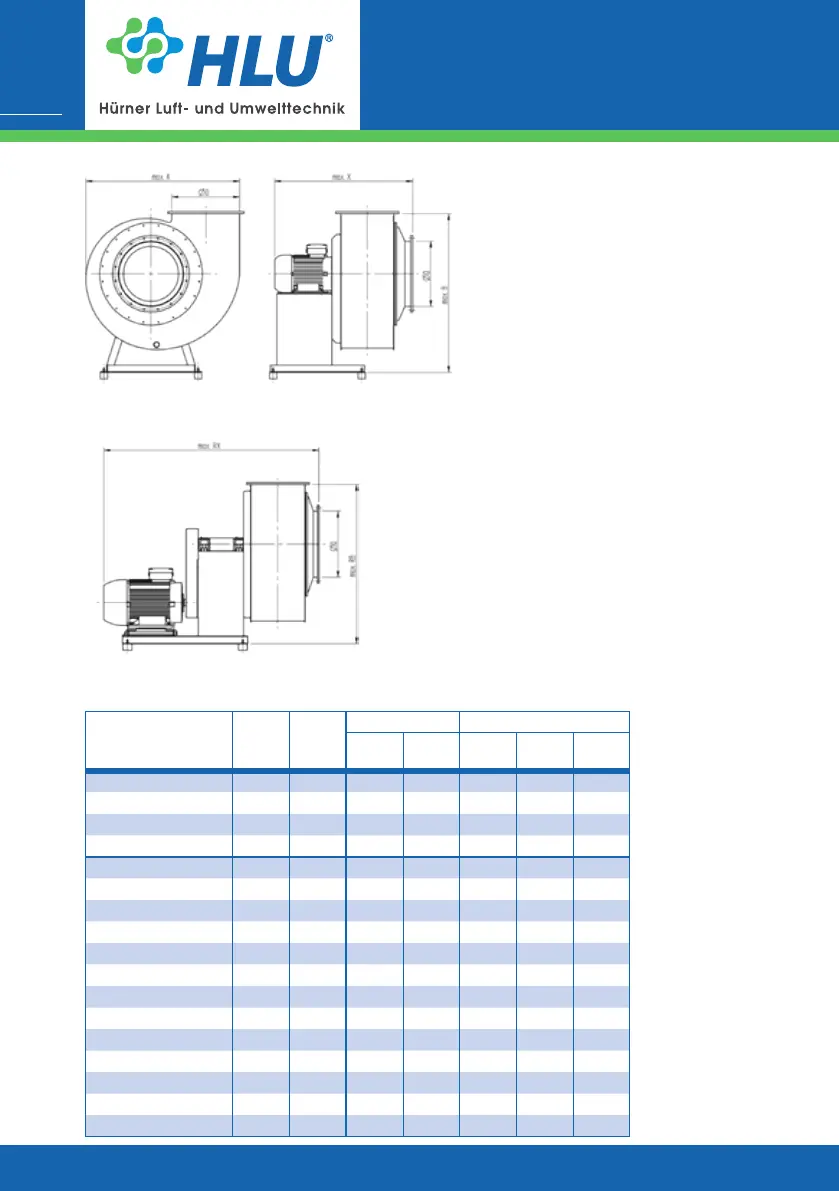

Fig. 2d| Overview of the fan RV / MRV | Belt drive
Fig. 2c| Overview of the fan RV / MRV | Direct drive
Type ØD
max.
A
Direct drive Belt drive
max.
B
max.
X
max.
RB
max.
RX
max.
kg
RV 20-80 80 400 550 500 600 850
RV 20-100 100 500 600 500 650 900
RV 20-125 125 600 750 550 800 1250
RV 20-140 140 700 800 550 800 1300
RV 28-200 200 600 700 600 700 1000 53
RV 28-225 225 650 750 650 700 1050 40
RV 28-250 250 700 800 650 750 1050 46
RV 28-280 280 800 900 950 850 1350
RV 28-315 315 900 950 1000 900 1400 80
RV 28-355 355 1000 1200 1000 1100 1850
RV 28-400 400 1100 1250 1050 1150 1850 180
RV 28-450 450 1250 1500 1250 1350 1950
RV 28-500 500 1400 1550 1300 1400 1950
RV 28-560 560 1550 1600 1400 1700 2150
RV 28-630 630 1700 1800 1550 1750 2250 380
RV 28-710 710 1900 2100 2050 2100 2700
RV 28-800 800 2150 2250 2150 2250 2800
