UK. SERVICE TRAINING CENTRE
Warning this information is for HOBART STILL trained personnel only.
Reproduction of this information is prohibited without the written consent of HOBART STILL.
Page: 4
02/95
1712
lockwasher added
The thread length of the stud has
been increased from 7/8" to 1"
which allows better adjustment of
the roller.

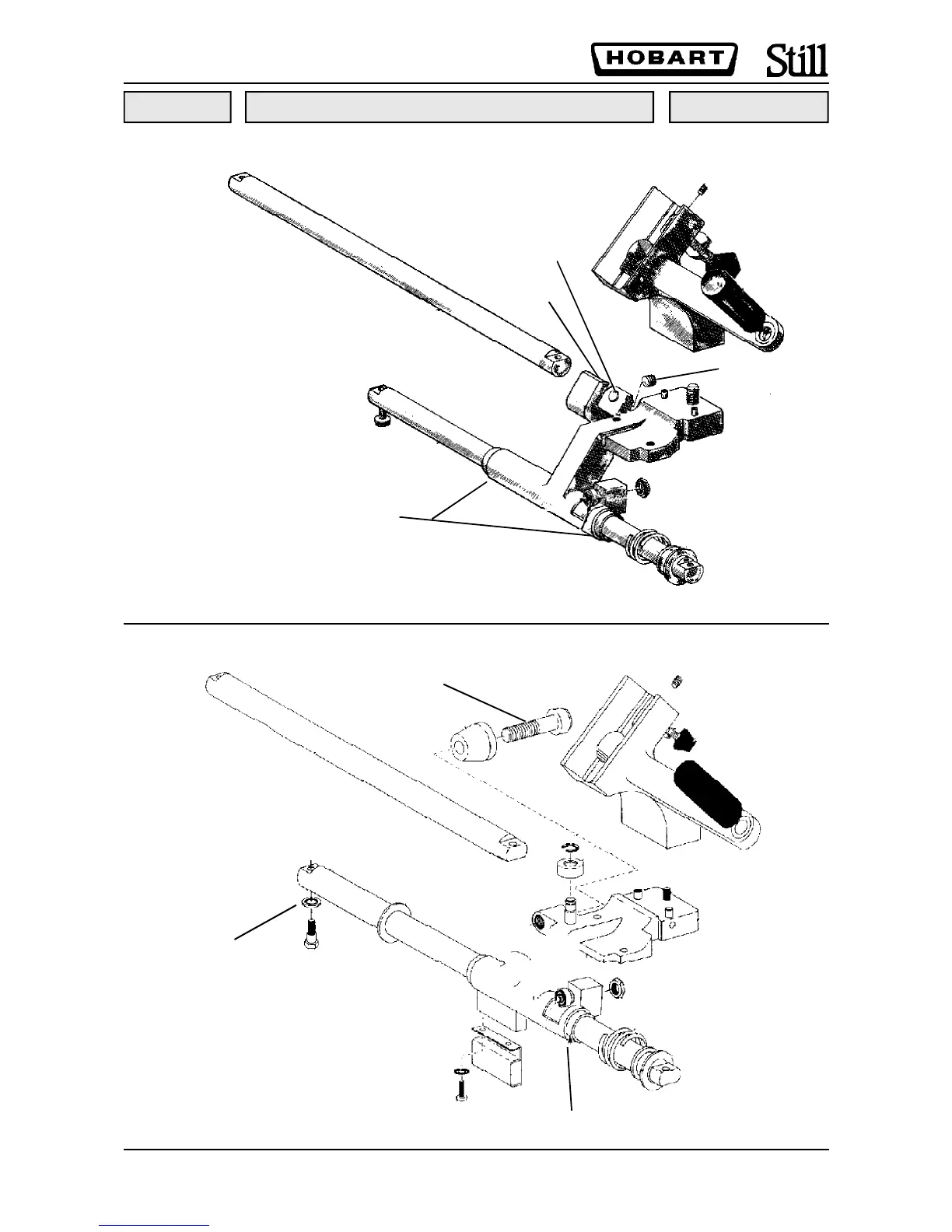

CARRIAGE - SERVICE
Bushing - Liner
LATER STYLE CARRIAGE
The carrige bushing are being replaced by 437610
which includes a liner (437612), so that if the
liner becomes worn only the liner needs changing
in future.
Conversion - Two new bushings required
1. Using a hacksaw to cut old bushes in two then
drive them out with a drift.
2. Drive in new bushes using block of wood or soft
material so as not to damage bushes. Fit the liners,
clean and lubricate the slide rods.
Plug .188"
Plug .312"
EARLY STYLE CARRIAGE
Adjusting screw
Lubrication of Carriage slide
rods
Only use White oil (Puremor 210)
Hobart grade "J"
Lubrication of Carriage slide
rods
Only use White oil (Puremor 210)
Hobart grade "J"
