MODEL 2000 SERIES SLICER REPLACEMENT PARTS
F-43081 Rev. D (September 2010)

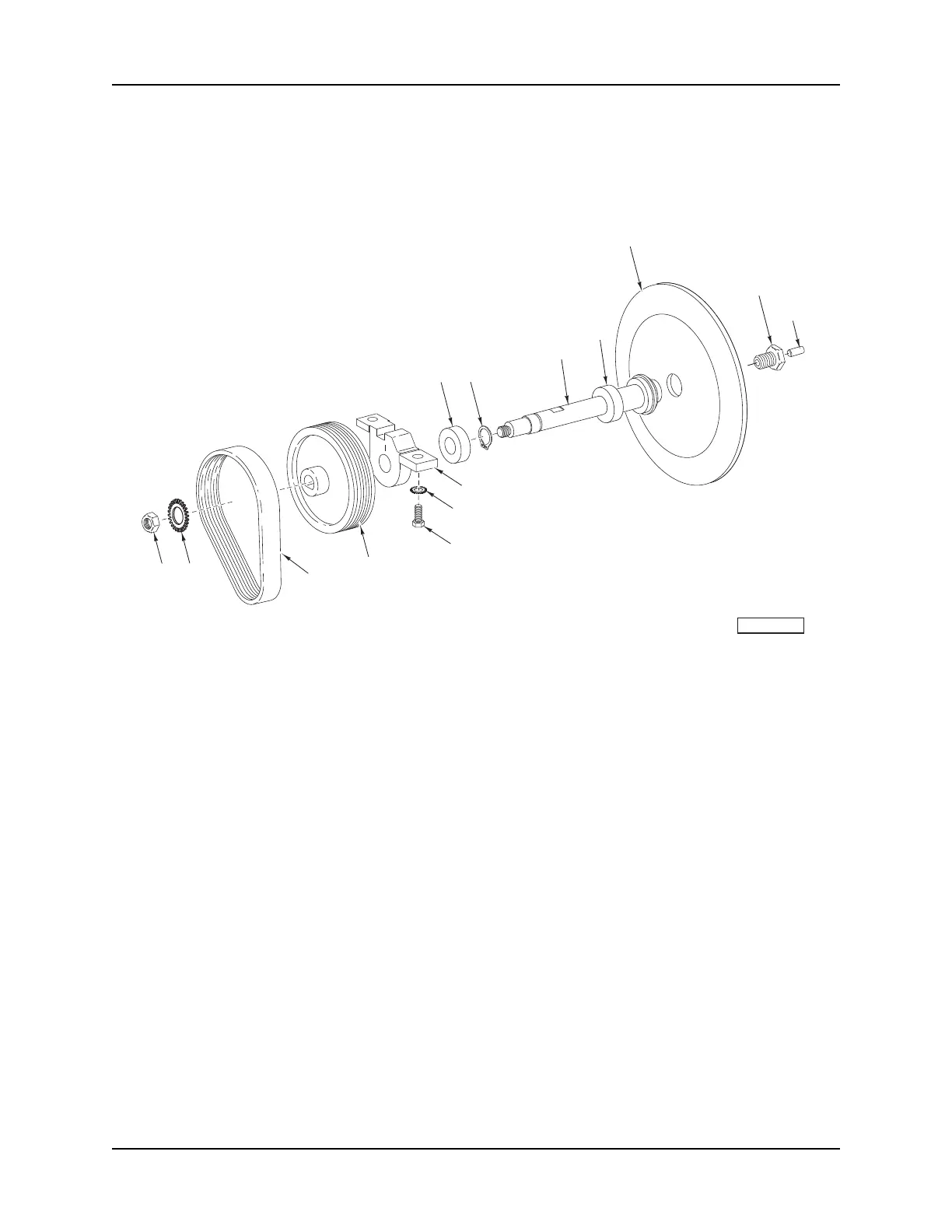

KNIFE SHAFT UNIT
ILLUS. PART NO. NAME OF PART AMT.
PL-57007
1 NS-017-41 Jam Nut
5
/8-18 Hex.....................................................................................................................1
2 WL-004-17 Lockwasher
5
/8 Light...................................................................................................................1
3 00-438845 Belt – Poly “V” ............................................................................................................................1
4 00-439049 Sheave – Poly “V” Large 6 Groove ............................................................................................1
5 SC-037-73 Cap Screw
3
/8-16 x 1 Hex Hd. .................................................................................................... 2
6 WL-007-25 Lockwasher
3
/8 External ............................................................................................................. 2
7 00-875180-00002 Retainer – Lower Hub & Bearing (Incls. Item 9) ........................................................................ 1
8 RR-009-07 Ring – Retaining ........................................................................................................................1
9 BB-021-66 Bearing – Ball ............................................................................................................................ 1
10 00-438915-00002 Shaft – Knife .............................................................................................................................. 1
11 BB-021-66 Ball Bearing ...............................................................................................................................1
12 00-439870-00005 Knife (Packaged) .......................................................................................................................1
13 00-439870-00006 Knife (Packaged) (2912B) .........................................................................................................1
14 00-073356-00002 Screw – Knife (Incls. Items 15 & 16) .......................................................................................... 1
15 SC-064-04 Set Screw
1
/4-28 x
3
/8 Hdls., Flat Pt. Nylok .................................................................................1
16 00-073265 Plug – Plate Thrust ....................................................................................................................1
PL-57007
4
5
6
12-13
14-15
10
11
9
2
1
8
16
7
3
2912 Slicer Technical Manual Page 23 of 72
