Hobart 2912 Slicer User Manual

- 7 -
MODEL 2000 SERIES SLICER REPLACEMENT PARTS
F-43081 Rev. D (September 2010)

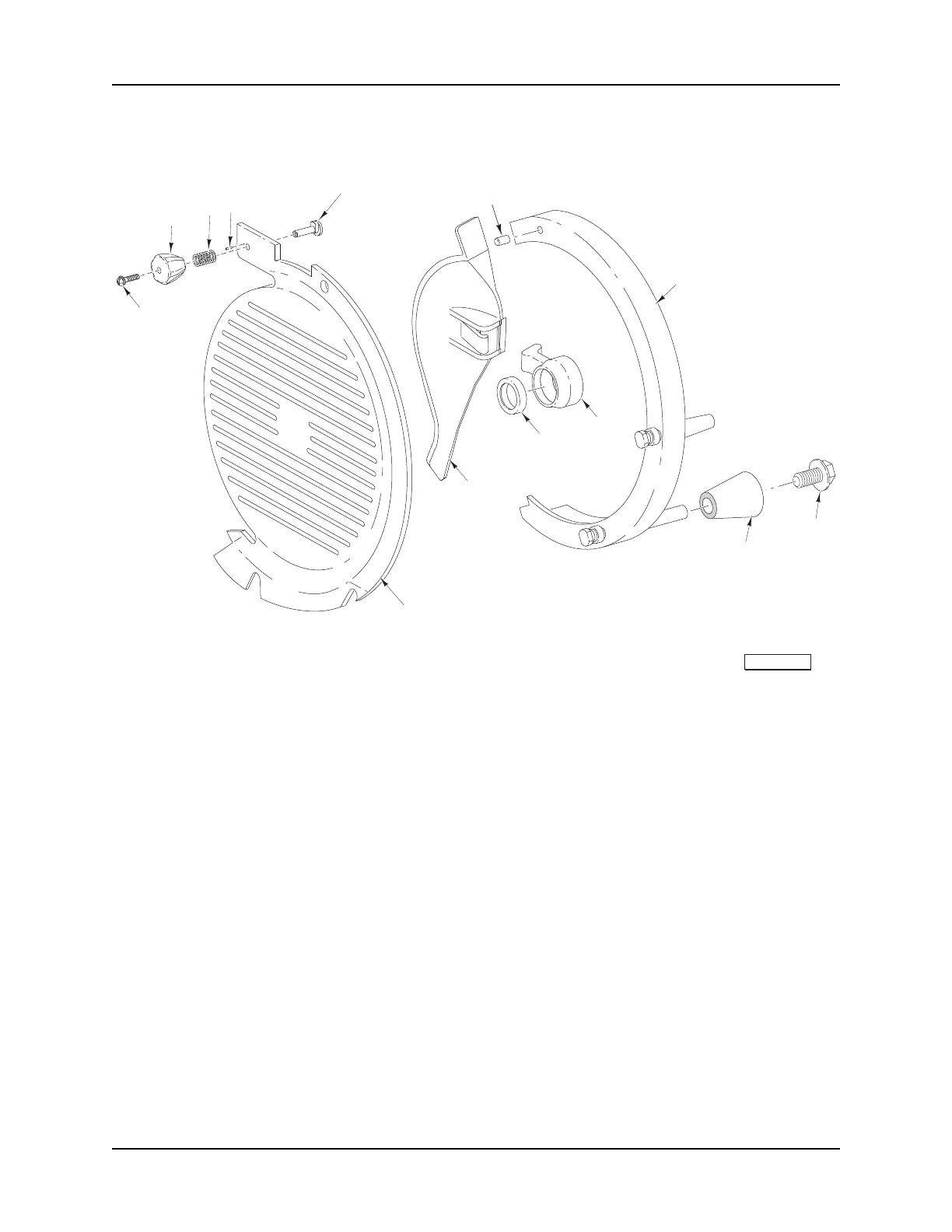

TOP COVER AND LOCK KNOB UNIT
ILLUS. PART NO. NAME OF PART AMT.
PL-57698
1 SC-130-53 Mach. Screw 4-40 x
3
/4 Tx. Button Hd. (Correctional) ................................................................ 1
2 SC-126-35 Mach. Screw 4-40 x
5
/8 Hex Hd. (2612PHS & 2712PHS) .......................................................... 1
3 SC-122-53 Mach. Screw 4-40 x
5
/8 Phil. Pan Hd. ......................................................................................... 1
4 WL-013-02 Lockwasher #4 Internal Shakeproof ..........................................................................................1
5 00-915167 Knob – Locking Top Cover ......................................................................................................... 1
6 00-437994 Spring – Top Cover .................................................................................................................... 1
7 PG-011-30 Pin – Grooved (
3
/32) (SST) .......................................................................................................... 1
8 00-875265 Stud – Locking Top Cover .......................................................................................................... 1
9 PG-006-27 Pin – Grooved (
1
/4) (SST) ........................................................................................................... 1
10 00-438920-00003 Guard Assy. – Knife Ring ........................................................................................................... 1
11 SD-038-14 Self-Tapping Screw
1
/4-20 x
7
/8 Hex Washer Hd., Type RL .........................................................2
12 00-875341 Ferrule – Ring Guard ................................................................................................................. 2
13 00-875340 Mount – Defl ector ...................................................................................................................... 1
14 SD-038-19 Self-Tapping Screw 8-18 x
3
/8 Hex Washer Hd. ......................................................................... 3
15 00-875343 Knife Shaft Ring ......................................................................................................................... 1
16 00-875355 Defl ector – Product ....................................................................................................................1
17 00-873784 Cover – Top & Lock Knob Assy. (2612PHS & 2712PHS) (Incls. Items 2 & 4 thru 8) .................1
18 00-873830-00006 Cover – Top & Lock Knob Assy. (Incls. Items 3 thru 8) ..............................................................1
19 00-873830-00007 Cover – Top & Lock Knob Assy. (Correctional) (Incls. Items 1 & 4 thru 8) .................................1
9
5
6
7
8
PL-57698
10
1 THRU 4
11
12
15
16
17-18-19
13-14
2912 Slicer Technical Manual Page 24 of 72
