MODEL 2000 SERIES SLICER REPLACEMENT PARTS
F-43081 Rev. D (September 2010)

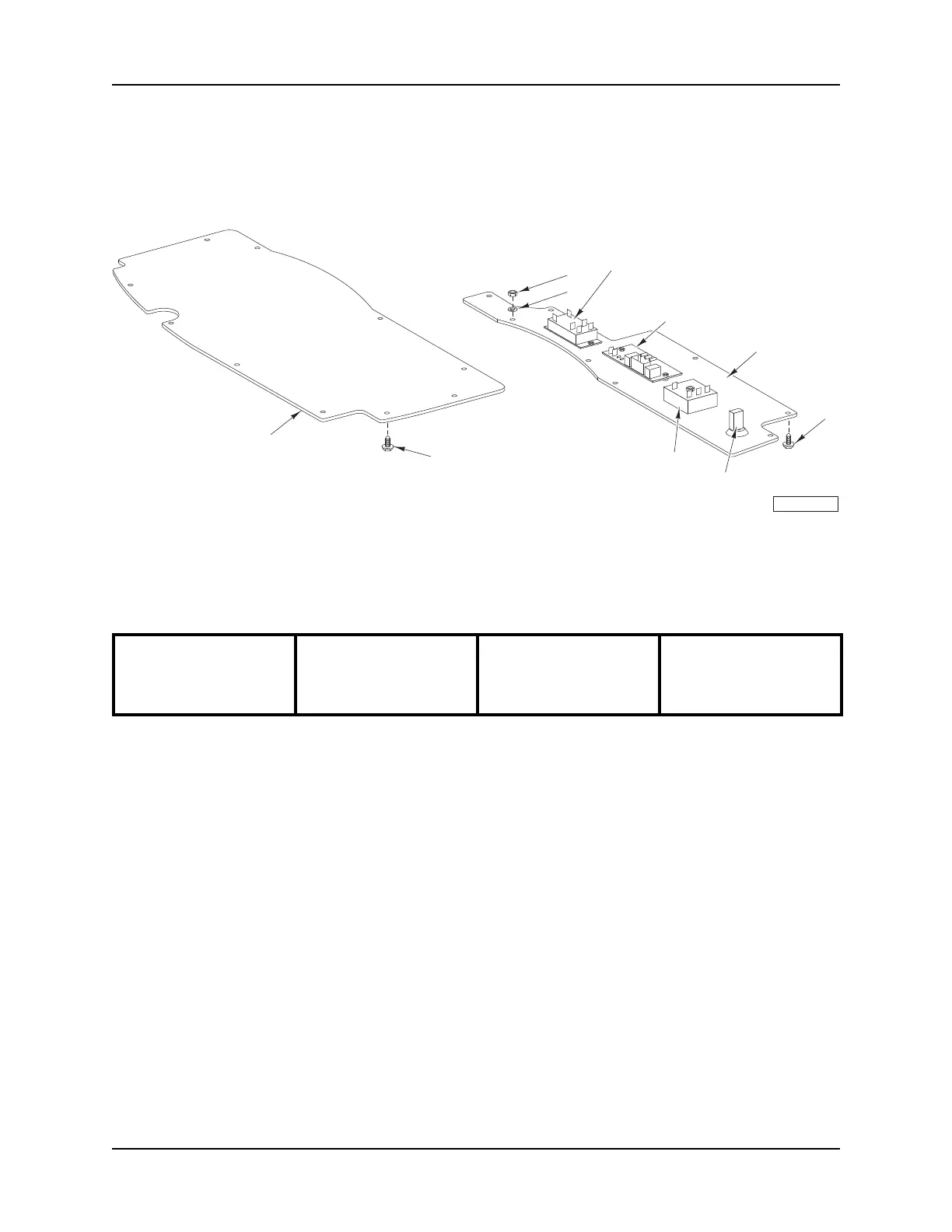

ELECTRICAL COVER ASSEMBLY
ILLUS. PART NO. NAME OF PART AMT.
PL-57015
1 NL-011-12 Nut 8-32 Hex (SST) ...................................................................................................................1
2 WL-014-05 Lockwasher #8 External (SST) ..................................................................................................1
3 00-087714-042-1 Relay (2-Pole) (115 V.) ............................................................................................................... 1
4 00-087714-042-3 Relay (2-Pole) (240 V.) ..............................................................................................................1
5 WS-023-22 Washer .......................................................................................................................................2
6 WL-007-01 Lockwasher #6 External Shakeproof .........................................................................................2
7 NS-009-07 Nut 6-32 Hex ..............................................................................................................................2
8 00-479708 Board – Printed Circuit ...............................................................................................................1
9 00-478392 Spacer – Nylon ..........................................................................................................................2
10 WS-023-22 Washer .......................................................................................................................................2
11 WL-007-01 Lockwasher #6 External Shakeproof .........................................................................................2
12 NS-009-07 Nut 6-32 Hex .............................................................................................................................. 2
13 00-873485-00001 Cover – Electrical (Without Auto Shutoff)...................................................................................1
14 00-873485-00002 Cover – Electrical (With Auto Shutoff)........................................................................................1
15 SD-038-16 Self-Tapping Screw 6-32 x
3
/8 Hex Washer Hd., Type RL .......................................................... 8
16 00-088196-00028 Breaker – 2 Amp. Thermal Overload .........................................................................................1
17 00-087714-069-1 Timer – Relay (115 V.) (Auto Shutoff Only) ................................................................................1
18 WS-022-01 Washer (2912 & 2912C) ............................................................................................................ 1
19 WL-014-07 Lockwasher #10 External Shakeproof (SST) ............................................................................. 1
20 NS-011-18 Nut 10-24 Hex (SST) (2912 & 2912C) .......................................................................................1
21 SD-038-16 Self-Tapping Screw 6-32 x
3
/8 Hex Washer Hd., Type RL ......................................................... 10
22 00-478034-00001 Cover – Bottom ..........................................................................................................................1
3 THRU 7
8 THRU 12
22
21
15
13-14
16
17 THRU 20
PL-57015
2
1
2712
2712C
2712PHS
ML-134235
ML-134237
ML-134238
2912
2912
2912
2912
ML-134245
ML-136111
ML-136113
ML-136153
2912
2912
2912
2912
ML-136154
ML-136188
ML-136189
ML-104996
2912C
2912C
ML-134248
ML-136174
