MODEL 2000 SERIES SLICER REPLACEMENT PARTS
F-43081 Rev. D (September 2010)

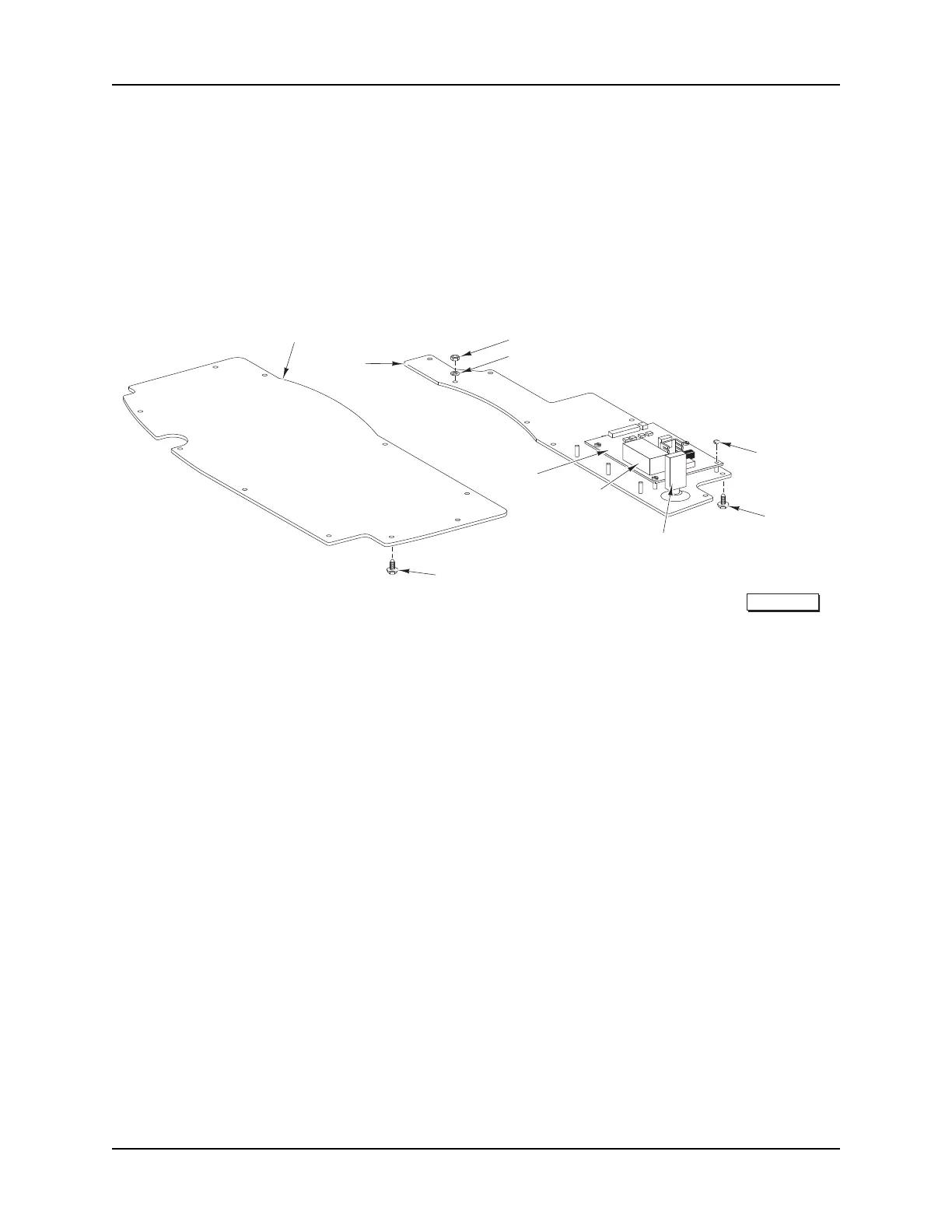

ELECTRICAL COVER ASSEMBLY
(2912B, ML-134251)
ILLUS. PART NO. NAME OF PART AMT.
PL-57690
1 WL-007-01 Lockwasher #6 External Shakeproof .........................................................................................5
2 WS-031-32 Washer .......................................................................................................................................5
3 NS-009-07 Nut 6-32 Hex ..............................................................................................................................5
4 00-478285-00002 Standoff...................................................................................................................................... 5
5 SD-038-16 Self-Tapping Screw 6-32 x
3
/8 Hex Washer Hd., Type RL .......................................................... 8
6 00-088196-00028 Breaker – Thermal Overload (2 Amp.) .......................................................................................1
7 00-087714-042-1 Relay (2-Pole) (115 V.) ............................................................................................................... 1
8 00-873633 PCB Assy. – Slicer Control Board ..............................................................................................1
9 00-873485-00003 Cover – Electrical (115 V.) .........................................................................................................1
10 WL-014-05 Lockwasher #8 External (SST) ..................................................................................................1
11 NS-011-12 Nut 8-32 Hex (SST) ................................................................................................................... 1
12 00-478034-00001 Cover – Bottom ..........................................................................................................................1
13 SD-038-16 Self-Tapping Screw 6-32 x
3
/8 Hex Washer Hd., Type RL ......................................................... 10
10
11
13
7
8
5
1 THRU 4
9
12
6
PL-57690
2912 Slicer Technical Manual Page 54 of 72
