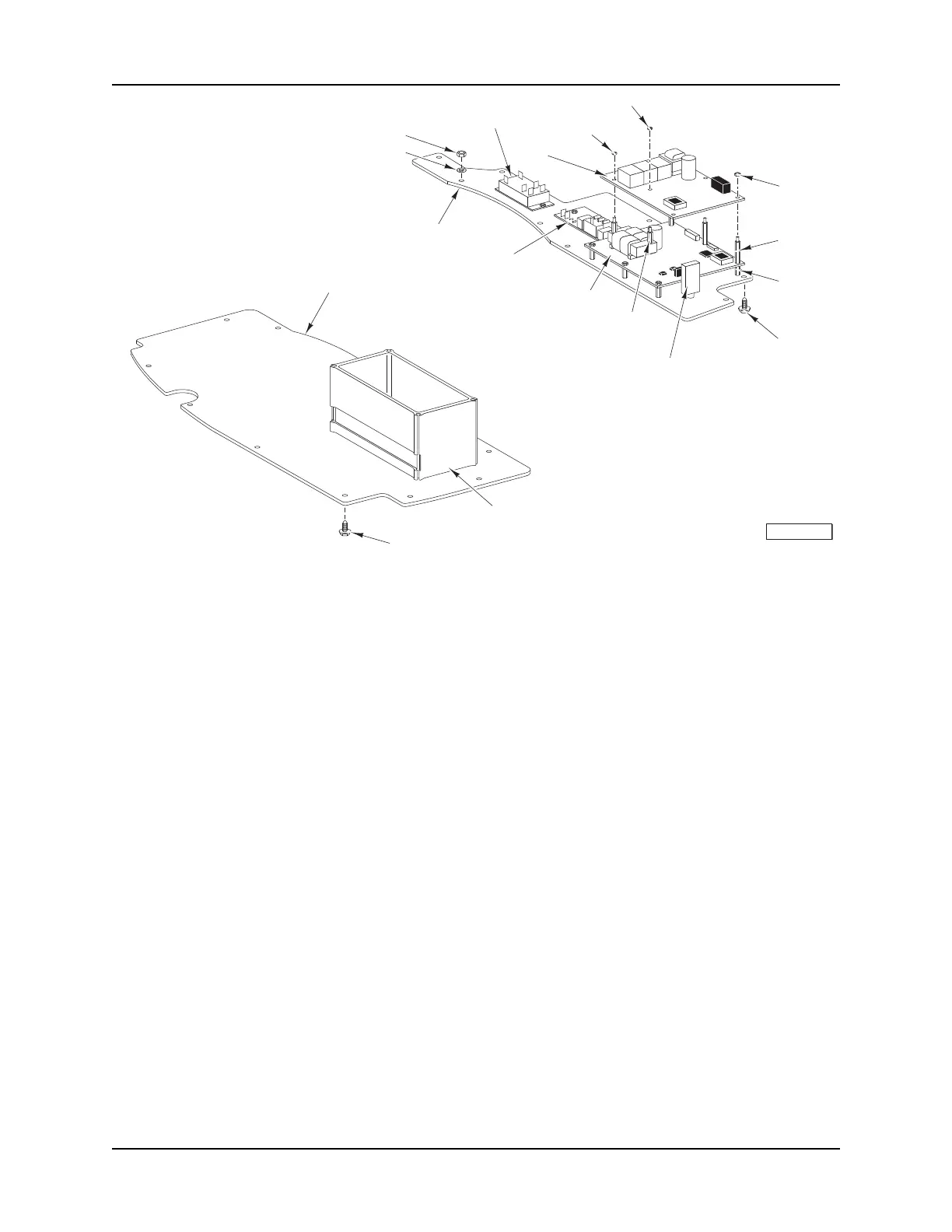

MODEL 2000 SERIES SLICER REPLACEMENT PARTS
F-43081 Rev. D (September 2010)
ELECTRICAL COVER ASSEMBLY
(2912PS, ML-134247 & ML-136175)
ILLUS. PART NO. NAME OF PART AMT.
PL-57089
1 WL-007-01 Lockwasher #6 External Shakeproof .........................................................................................3
2 WS-031-32 Washer .......................................................................................................................................3
3 NS-009-07 Nut 6-32 Hex ..............................................................................................................................3
4 00-478285-00003 Standoff...................................................................................................................................... 3
5 00-478285-00002 Standoff...................................................................................................................................... 6
6 SD-038-16 Self-Tapping Screw 6-32 x
3
/8 Hex Washer Hd., Type RL .......................................................... 8
7 00-088196-00028 Breaker – 2 Amp. Thermal Overload ......................................................................................... 1
8 00-478285-00002 Standoff ..................................................................................................................................... 2
9 SC-018-60 Mach. Screw 6-32 x 1
1
/8 ............................................................................................................. 2
10 00-873169 PCB Assy. – Scale .....................................................................................................................1
11 00-479708 Board – Printed Circuit ............................................................................................................... 1
12 00-478392 Spacer – Nylon ..........................................................................................................................2
13 WS-023-22 Washer .......................................................................................................................................2
14 WL-007-01 Lockwasher #6 External Shakeproof .........................................................................................2
15 NS-009-07 Nut 6-32 Hex .............................................................................................................................. 2
16 00-873485-00001 Cover – Electrical (Without Auto Shutoff)...................................................................................1
17 00-873485-00002 Cover – Electrical (With Auto Shutoff)........................................................................................1
18 NS-009-07 Nut 6-32 Hex .............................................................................................................................. 1
19 NS-009-07 Nut 6-32 Hex .............................................................................................................................. 1
20 WS-023-22 Washer .......................................................................................................................................1
21 WL-007-01 Lockwasher #6 External Shakeproof .........................................................................................1
22 00-873566 PCB Assy. – Slicer Control Board ..............................................................................................1
23 00-087714-042-1 Relay (2-Pole) (115 V.) ............................................................................................................... 1
24 WS-023-22 Washer .......................................................................................................................................2
25 WL-007-01 Lockwasher #6 External Shakeproof .........................................................................................2
26 NS-009-07 Nut 6-32 Hex .............................................................................................................................. 2
27 NS-011-12 Nut 8-32 Hex (SST) ................................................................................................................... 1
28 WL-014-05 Lockwasher #8 External (SST) ..................................................................................................1
29 00-478034-00002 Cover – Bottom ..........................................................................................................................1
30 00-478452 Chute – Load Cell Access .......................................................................................................... 1
31 SD-036-39 Self-Tapping Screw 10-24 x
3
/8 Truss Hd., Type TT ................................................................... 4
32 SD-038-16 Self-Tapping Screw 6-32 x
3
/8 Hex Washer Hd., Type RL ......................................................... 10
23 THRU 26
19-20-21
22
18
11 THRU 15
32
30-31
6
8-9
7
10
5
4
PL-57089
1-2-3
16-17
29
28
27
