Hobby Van Exclusive - Hanging Table

Interior Structure
06-11

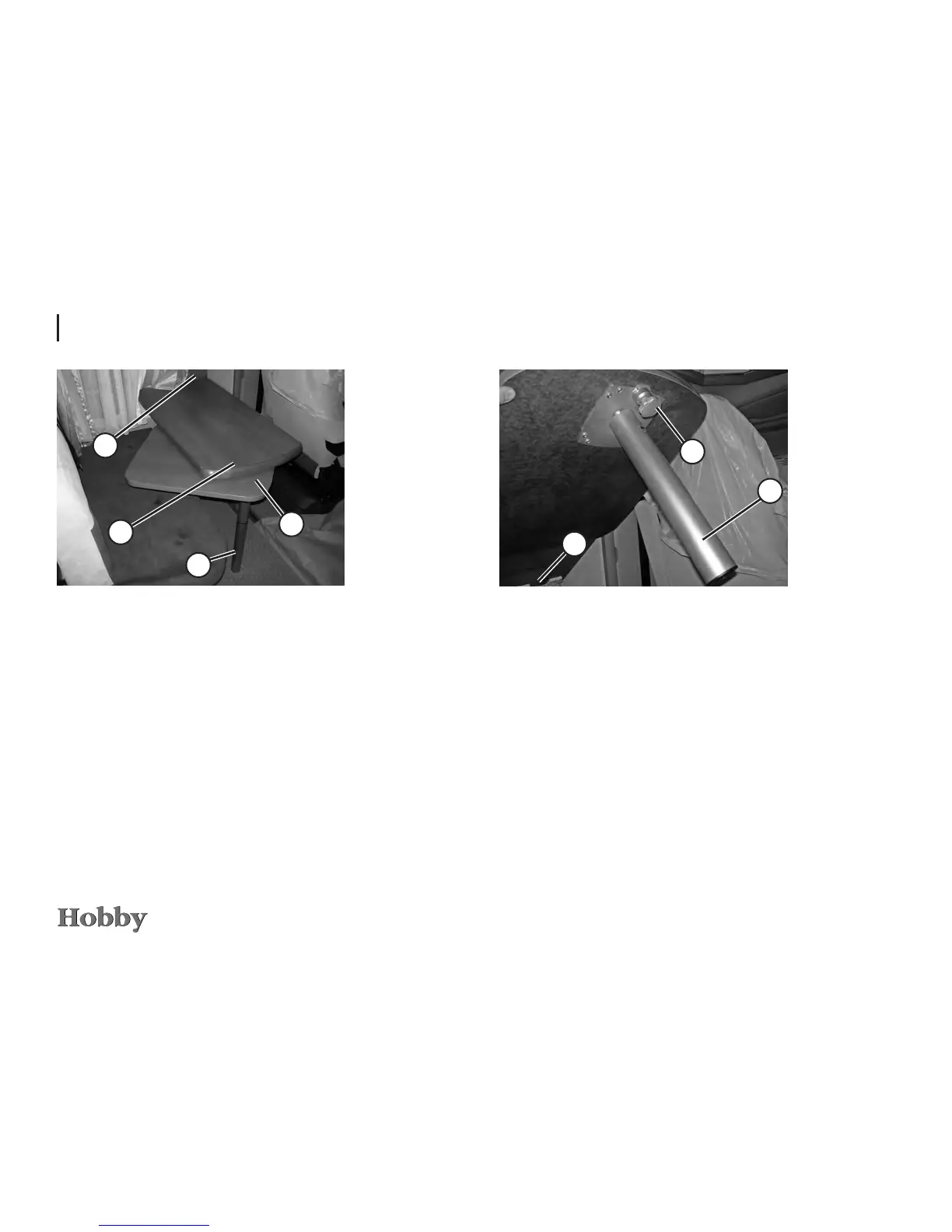

Hanging table
When lowered, the hanging table can be used as a base frame
for the bed.
To lower
• Fully retract the lower, pivotable table top
j
and use the
locking pin
k
to lock it.
• Raise the front end of the table top
l
by approx. 30°.
• Pull down the lower section of the table foot
m
and remove
it.
• Pull the table top out of the upper wall bracket
n
.
• Raise the front end of the table top by approx. 30° and hook
it into the lower wall bracket
o
.
• Place the shortened supporting leg
p
at the front edge of
the table top on the oor.
To swivel out
• Pull the locking pin
k
.
• Swivel the lower table top
j
to the desired position.
2
1
5
3
4
6
7
