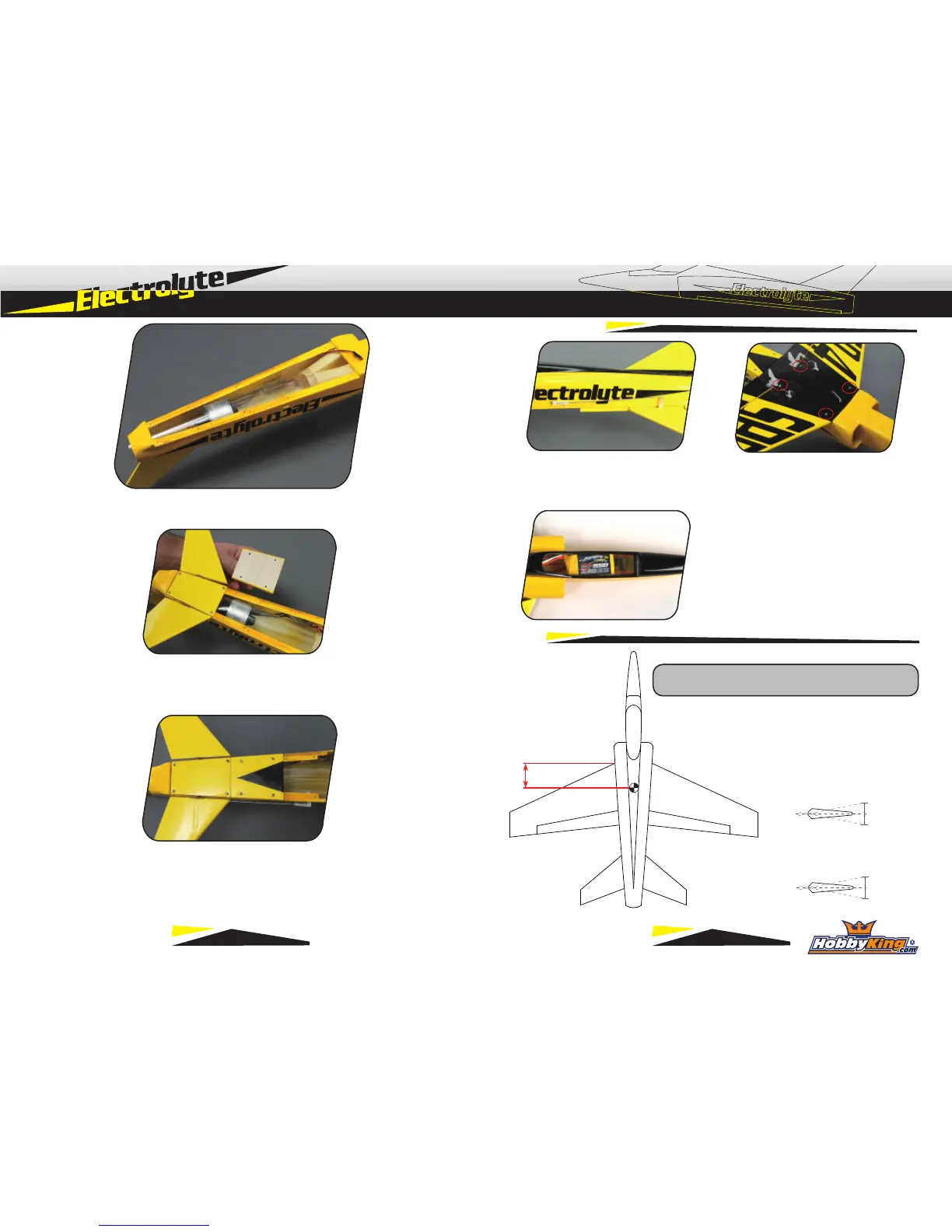

Setup
1) Attach elevator pushrod to servo and stabilizer
as shown. Secure clevis with set screw. See note
on page 11 for elevator setup.
2) Attach wing to fuselage using four screws.
Feed aileron, elevator, and ESC leads under
bifurcated inlet ducting into forward fuselage.
Elevator
2~4mm
2~4mm
Aileron
57mm (OnSpar)
5mm
5mm
3) Install receiver and battery, secure both with
velcro. Refer to final setup below for CG.
**Setup Note** 2mm aileron throw is general recommen-
dation. 4mm is ONLY for hand launching, no Bungee.
7) Carefully insert the full fan/ducting module into the model, spreading the fuselage to slip the fan
past. Once the whole module is inserted, slide it forward overlapping by 3~4mm on front ducting.
9) Apply 15 minute epoxy thickened with microballons to fan
where it contacts the fuselage sides. High temp RTV silicone
can be used as well should you need to remove the fan later
Final Assembly
10) Hatch installed on fuselage with 4 screws
9 10
