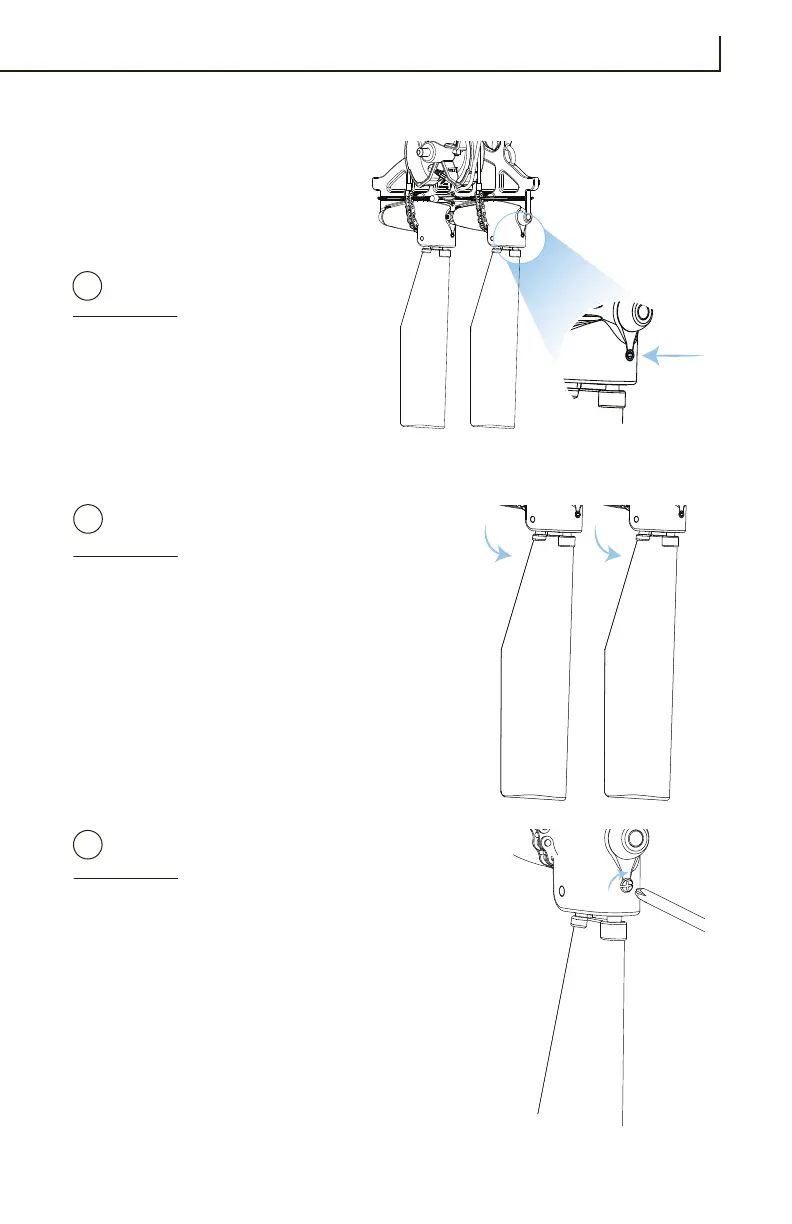

If the fins do not stay locked
into position and feel loose,
you’ll need to adjust the kick-
up set screw.
1
2
3
Kick Up Adjustment
Tighten the screw (Phillips
or Flat Head Screwdriver)
1/4 turn at a time until the
set screw just touches the
fin.
Test the fin by moving it
in and out of the kick-up
position to determine if it
needs to be tightened or
loosened.
Make sure that the fin is
completely engaged into
the sprocket.
The set screw is located in
the housing at the base of
the fin.
Kick-Up Adjustment

Hobie Mirage Lynx Specifications

General

Length	11' (3.35 m)
Width	36" (0.91 m)
Capacity	350 lbs (159 kg)
Drive	MirageDrive 180
Crew	1
Weight	57 lbs (25.9 kg)
Rudder System	Kick-Up Rudder
