I 0667 - 12GB
5.8 - UNBALANCE OPTIMIZATION
- This function serves to reduce the amount of weight to balance a wheel.
- It is suitable for static unbalance exceeding 30g.
- It improves also the residual eccentricity of the tyre.
This operation is required if no unbalance has been measured previously; other-
wise go to the next step

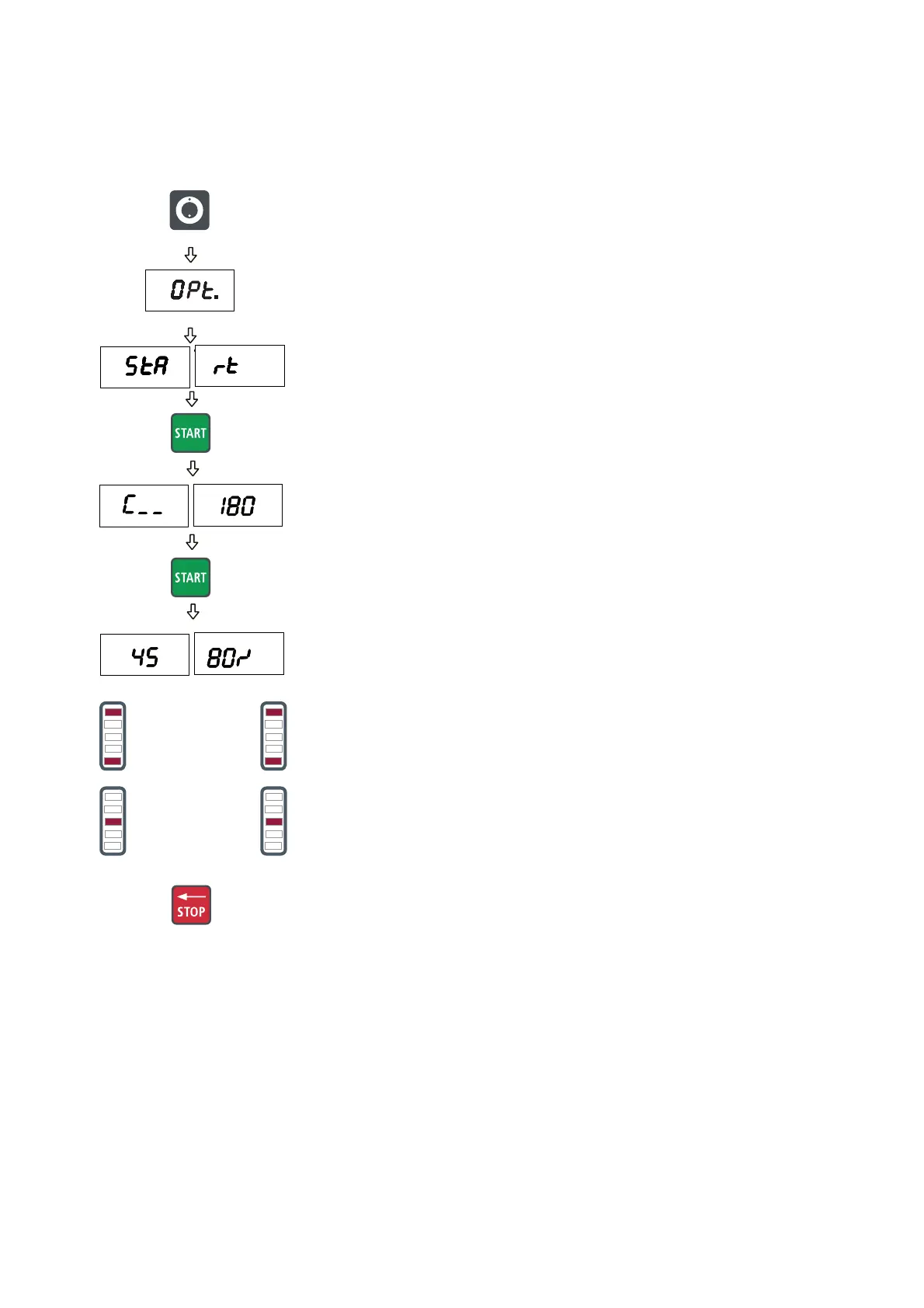

M ▪ ark with chalk a reference point on the adapter and rim
With the aid of a tyre changer, turn the rim on the tyre by 180° ▪
Refi t the wheel with the reference mark coinciding between rim and adapter ▪
RH di ▪ splay: percentage reduction
LH display: actual static unbalance which can be reduced by matching ▪
Mark the two positions of the rim and tyre, and turn the rim on the tyre until ▪
the positions correspond in order to obtain the optimization results shown on
the display.
CANCEL OPTIMISATION IN ANY PHASE.
TYRE
POSITION
RIM POSITION
The LED besides the button lights when the static unbalance is more then 30 g
