Hoggi BINGO Evolution - 4-Point Lap Belt; Five-Point Harness

34

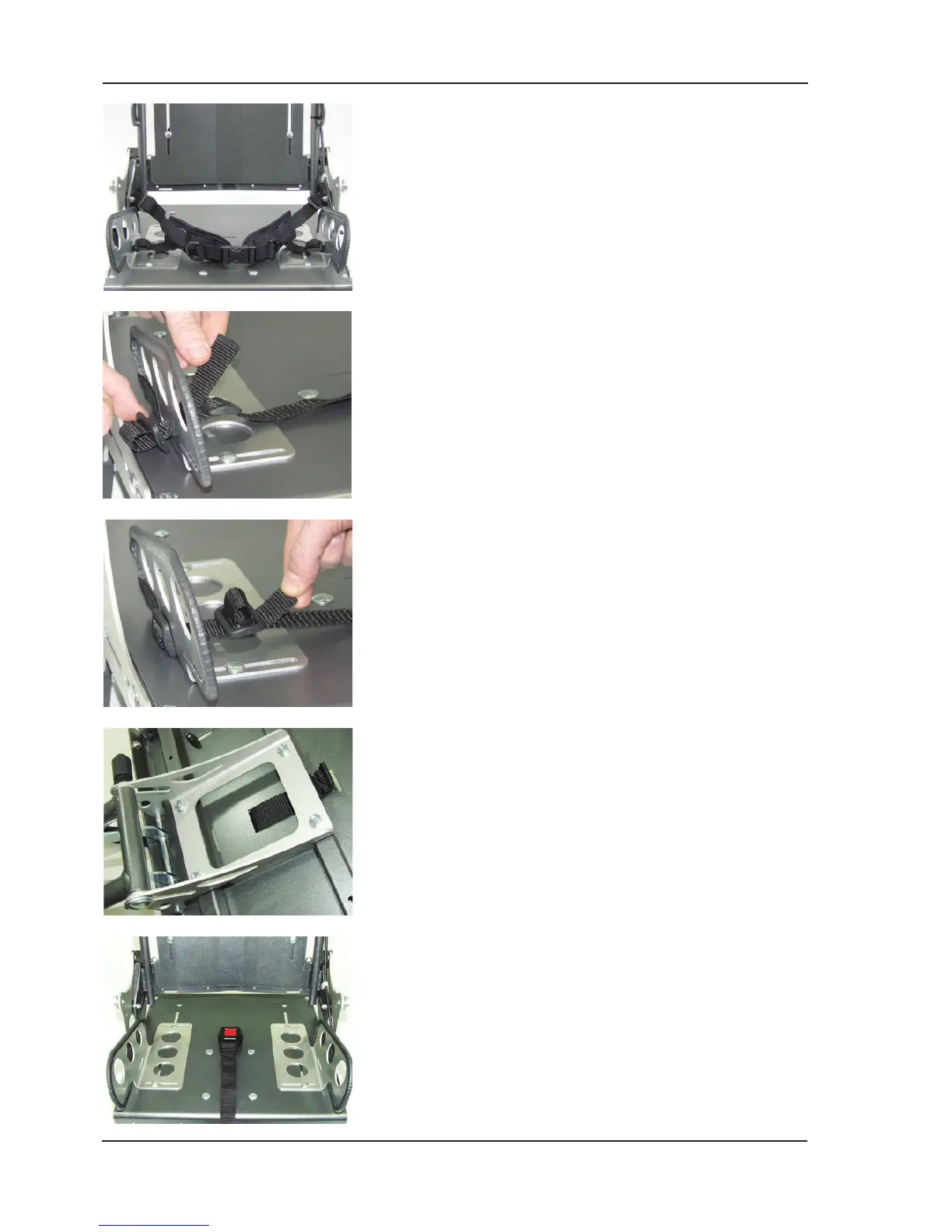

•Removethebelthousingandthetrigliderst.
•Guidethebeltendthroughtheseatplateandtheseatframetubeuntil
thearresterandguideittothesurfacethroughthechoosenlonghole.
•Fixtheseatcushionandguidethebeltupwardsthroughtheslotinthe
cushion.
•Toattachthestraptothebuckleproceedasdescribedin6.9lapbelt.
•Thenthreadthebeltendsthroughthetriglidesasshown.
Thelapendsandthetensionbeltsofthe4-pointlapbeltgetmounted
andpreadjusted(length)asdescribedunder6.9lapbelt.
6.11 Five-point harness
Theve-pointharnessshouldbeinstalledbyauthorizeddealersor
trainedtechnicians.Taketheseatupholsteryoffrstandturntheseat
unit.
Intheseatplatearelongholes.Chooseafteradjustingtheseatdepth
onelongholetoguidethebelt.Thepositionshouldbeclosetothebody
butnotunderneaththebottom.
•Firsttheseatupholsteryhavetoberemoved.Thenguidethetriglides
forthetensionbeltsasshownthroughthelongholesofthethigh
supports.
6.104-pointlapbelt
Theassemblyshouldbeperformedbytrainedtechnicians.
Bypressingtheplugendsthelapbeltopens.
Atthebeltbucklethelapbeltcanbereadjustedbyadductingthe
lapends(netuning).
