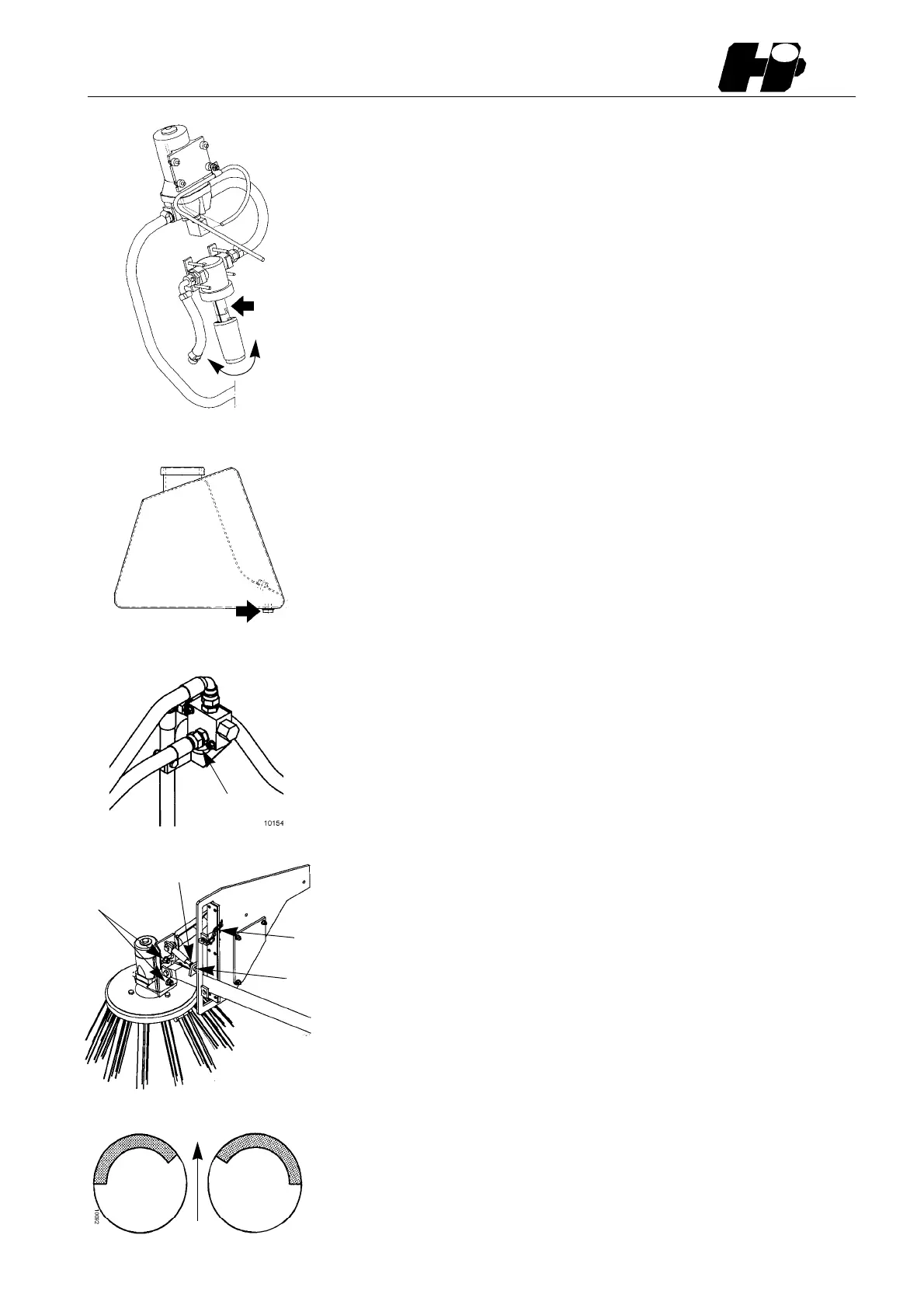

7. Water filter
8. Bottom plug
Dust control
• The pump shall not operate dry too long. When running
out of water the pump is to be shut-off.
• The machine is equipped with a water filter to avoid dirt
coming into the system. This can be cleaned and reused.
See picture 7.
• When temperature below 0°C empty the water-tank,
pump and hoses. Begin with emptying the tank, then start
the pump for 20-30 seconds until it is empty. The water-
tank is designed with the pump hose end above the bottom
of the tank in order to get bigger particles to stay at the
bottom of the tank. When emptying the tank, remove the
bottom plug. See picture 8.
Side brush (extra equipment)
Holms 300 / 300L can be equipped with an extra side
brush to obtain even better result close to kerbstones etc. It
can be mounted on the left or the right side.
When the side brush is not used, lift it up and lock it with
the pin, see picture 9b.
The side brush is driven hydraulically and connected in
series with the right or left sweeper roll motor, see page 21.
The rotation speed can be adjusted as required by means
of the adjusting knob, see picture 9a.
Setting
The forward angling of the brush is set by loosening the
two nuts (A), put the brush in position and tighten the nuts.
The side angling is set by loosening the screw (B), and
then unscrew or tighten the rigging screw to obtain the right
angle.
By letting the brush rotate a short while against the ground
and then lift it up, the brush pattern can be checked. It’s
only the front-outer part that shall have ground contact, see
picture 10.
9b. Side brush
A
B
Rigging
Pin
10. Brush pattern
screw
Left
mounted
Right
mounted
9a. Hydraulic flow valve
Adjusting knob
