HOLMS 300
Change of brushes
1. Loosen the screws and take away the sweeper roll end
ring.
.
2. Put shackels in the two holes for the brush core
mountingscrews and put a lifting wire loop through the
shackles.
3. Lift the sweeper roll in vertical position by using a
traverse crane or similar equipment.
4. Lift up the roll from the floor and pull down the brush
sections and the distance rings. Lower the sweeper roll.
5. Check the core free from damage.
6. Fasten one end ring with screws on the core, see
picture15.
7. Lift up the sweeper core with the end ring downwards.
8. Place one brush element with the brush element pins
into the grooves of the brush core.
9. Place one distance ring.
10. Place one brush element turned acc. to picture 16 and
then another distance ring.
11. Place alternating brush elements and distance rings.
Please notice that the brush rings shall be turned
alternatively, so the result will be acc.to picture 17.
12. To get the whole core "dressed" a thinner distance ring
alt. double brushes without distance ring is necessary at
the end in order to receive agreement of length.
13. Fasten the other end ring with screws.

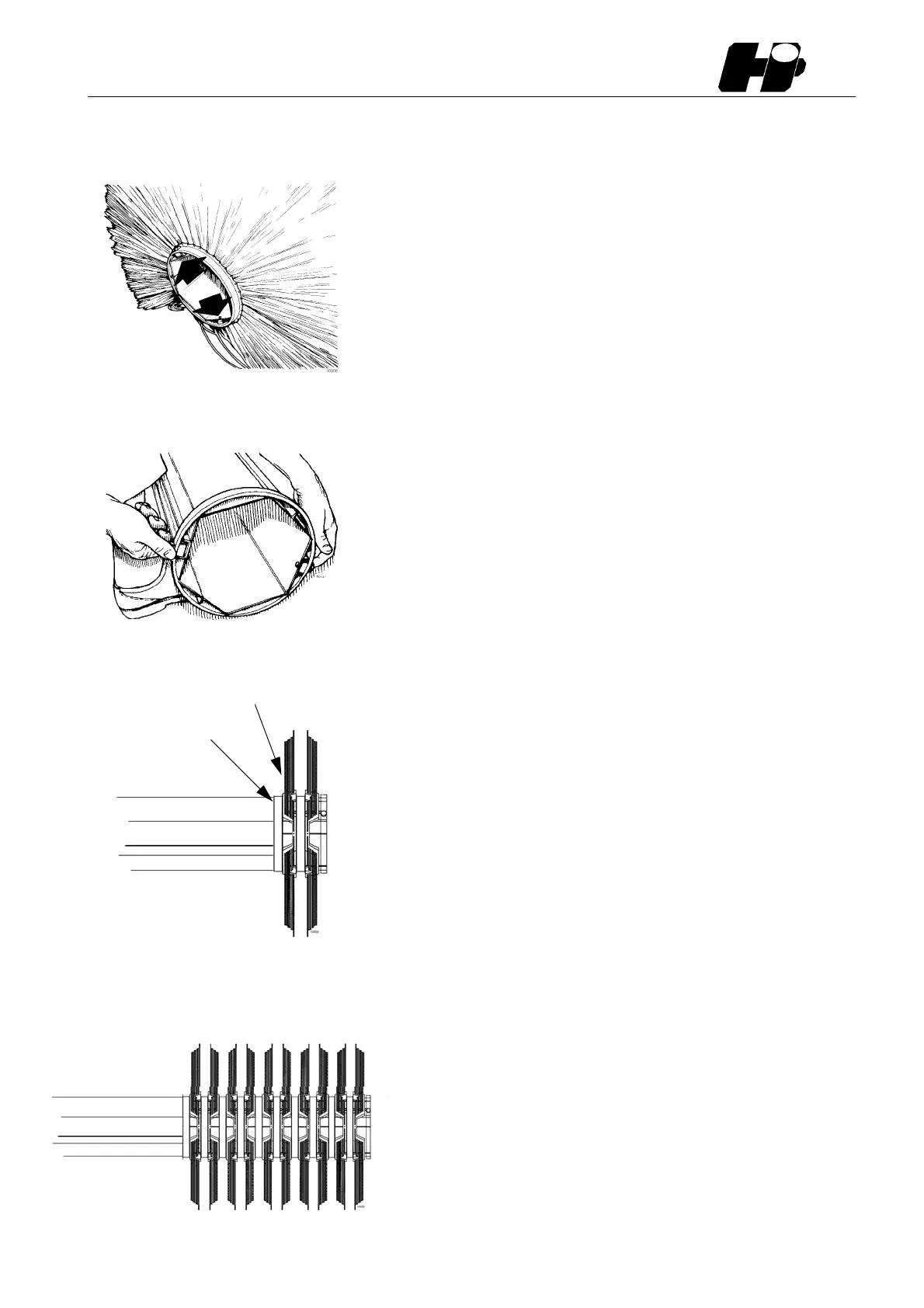

14. End ring screws
15. End ring mounting
16. Mounting of brush element
17. Correct mounting
Brush element
Distance ring
