Operating instructions
Connection to carrier
Connect the sweeper to the carrier as follows:

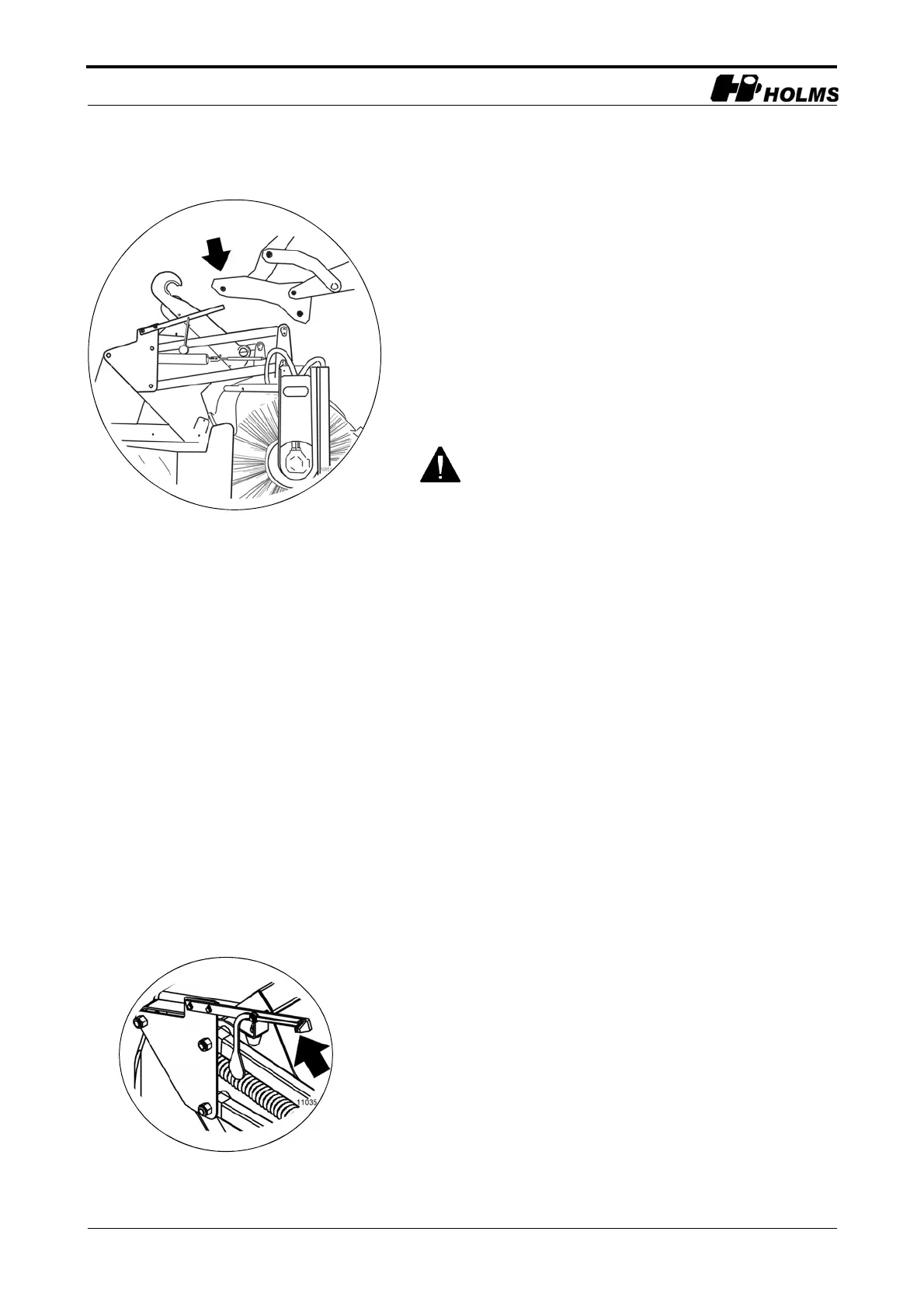

1. Tilt the machine attachment as far forward as possible
(see figure 3), connect the hook part, lift and tilt back.
This is important as, otherwise, the sweeper may be
damaged by the loader arms. The machine can then be
locked. See Instruction Manual for respective carrier.
2. Connect the quick-couplings on the drive hoses to the
third function hydraulic outlet, or to the hydraulic
motor circuit on the carrier.
3. Connect the electric cable on the water pump to the
carrier.
4. Start the sweeper roller by moving the lever for the
third hydraulic function to its locked position, or
activate the hydraulic motor circuit.
5. Check that the sweeper roller is rotating in the right
direction. If the sweeper roller is rotating in the wrong
direction in the locked position, change the locked
position for the lever or loosen the lever lock and
change the quick-couplings for the third hydraulic
function.
Operator settings
The following operator settings must be selected:
• vertical position and tilt
• adjustment of height indicator to compensate for
brush wear
• ground pressure, see “Setting the ground pressure” on
page 13.
Setting the vertical position and tilt of the machine
Set the machine's vertical position and tilt as follows:
1. Lift the sweeper. Raise and secure the supports in the
operating position.
2. Start the sweeper brush via the third hydraulic
function or via the hydraulic motor circuit.
It is extremely important that the hydraulic
couplings are clean. Allowing dirt into the
hydraulic system would severely impair sweeper
functionality.
3.Connection and disconnection
