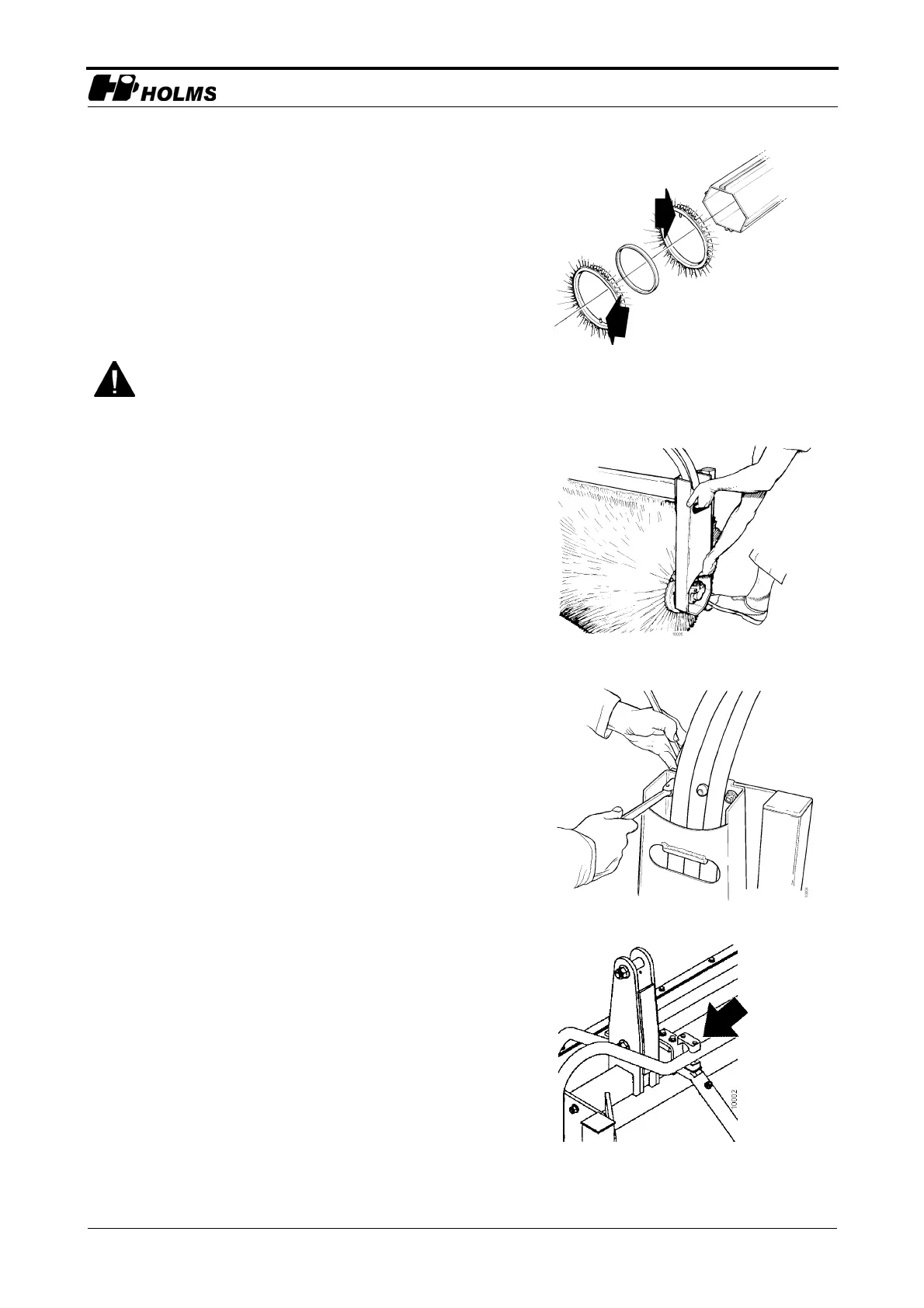

Fitting the brush roller
1. Lift the machine and roll in the brush. Lower the
machine.
2. Push the brush roller into place on the motor at the
fixed end.
3. Raise the end onto the two guide pins using the
hydraulic motor and carrier. Hold down the bar tube
with your foot. See figure 19.
4. Fit the four fixing screws on the end. Ensure no brush
hairs become trapped. See figure 20.
5. Fit the attachments of the hydraulic hoses on the bar
tube. See figure 21.
Risk of crushing!
18.Placement of the brush ring's
pins
21.Attachment for hydraulic
hoses
