Discovery QDR Series Technical Manual
3-22

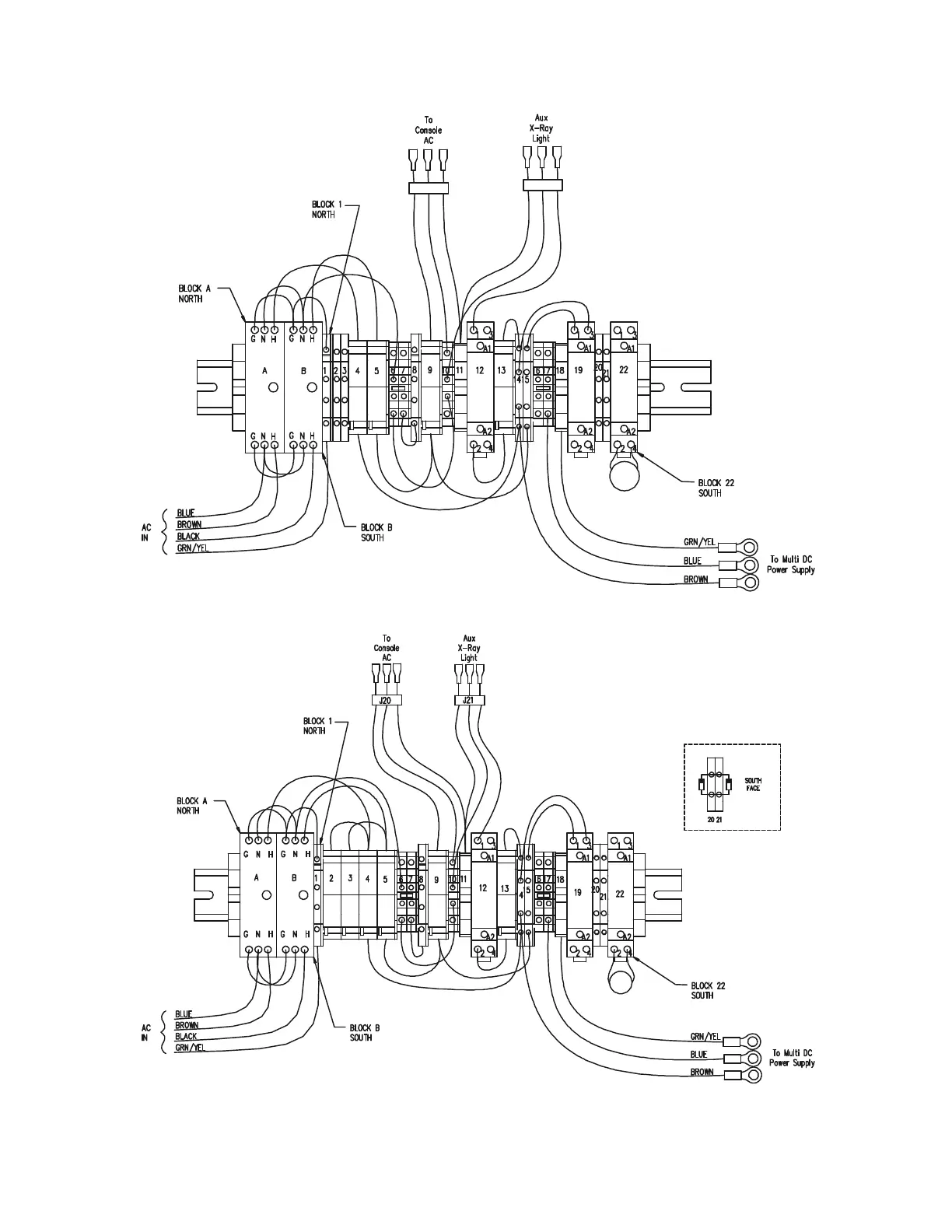

Figure 3-22. DISCOVERY-C and W DIN Rail AC Input/Output Wiring Diagram
Figure 3-23. Discovery-A and SL DIN Rail AC Input/Output Wiring Diagram
