HX25/25W/27W Service Repair Manual Component Testing and Replacement
Turbine and Compressor Housings
4:6

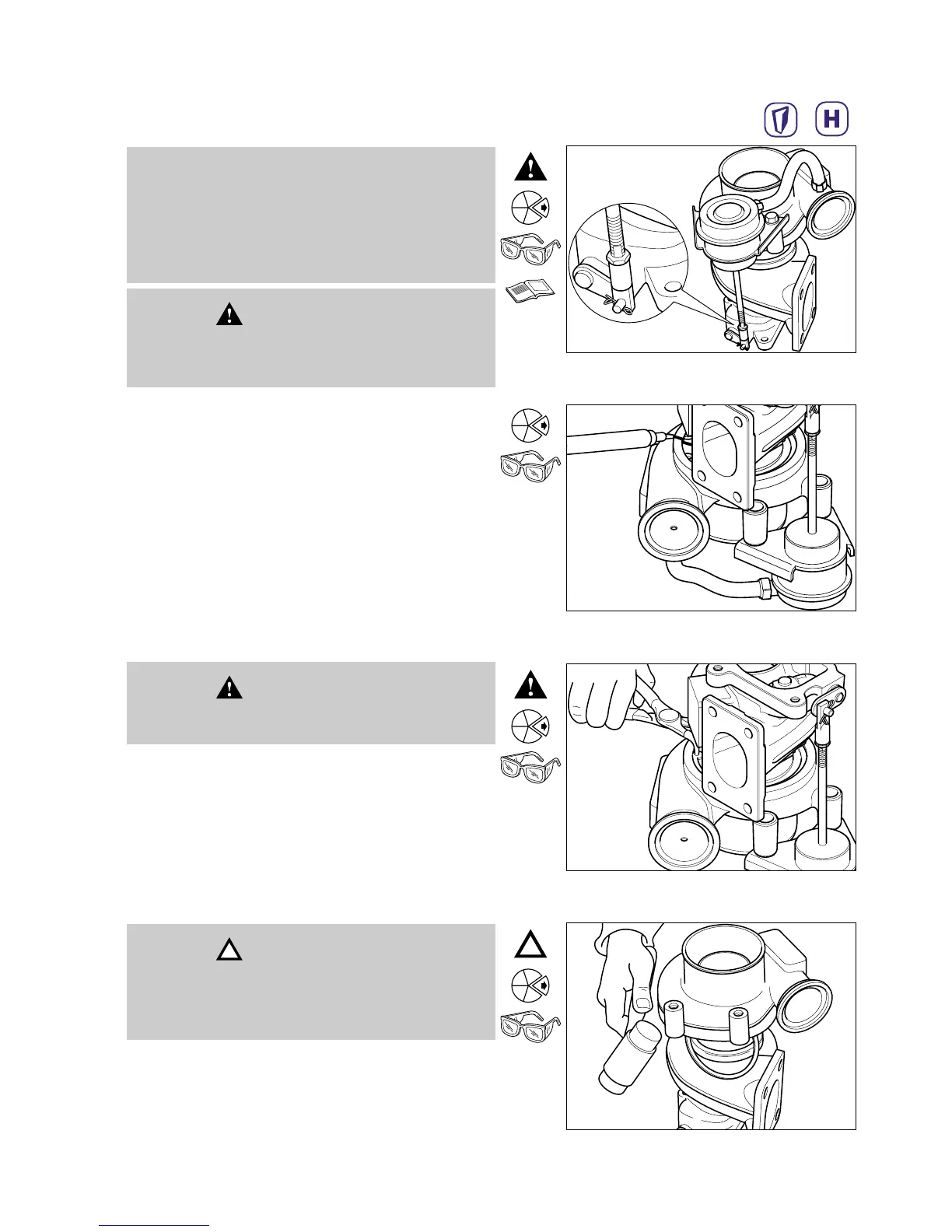

Compressor Housing
Mark compressor housing, bearing housing and
retaining ring to record correct orientation. This action
assists in re-assembling the pinned components and
defines orientation of the retaining ring.
Remove retaining ring, compressor housing using
suitable circlip pliers.
Using a soft hammer, gently tap the compressor
housing off the bearing housing.
Warning
Always wear safety glasses when removing retaining
ring.
Caution
Compressor blades can be damaged easily when the
compressor housing is removed. Do not bend the
locating pin that aligns bearing housing and
compressor housing.
Note
Where fitted, it is necessary to remove the wastegate
actuator before removing turbine or compressor
housings. Always ensure the end link is locked in
the correct pre-set position before removal. Refer to
Wastegate Actuator Removal for removal process.
Warning
The actuator rod may retract very quickly when freed
from the lever arm. Keep fingers away from
mechanism.
