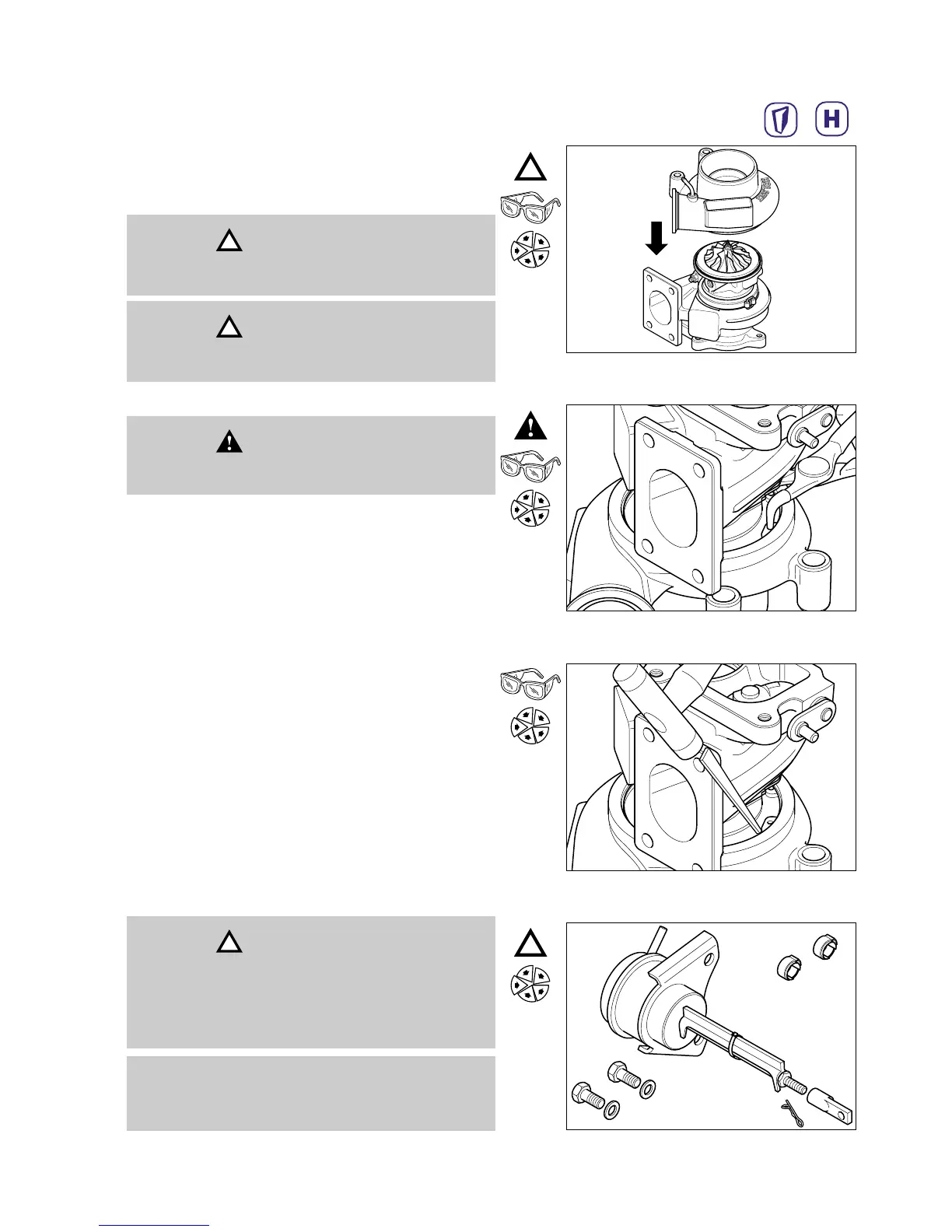

Place retaining ring, compressor housing (91) around
bearing housing. Carefully locate the compressor
housing over the compressor wheel and locate on the
bearing housing spigot.
HX25/25W/27W Service Repair Manual Turbocharger Service and Overhaul
5:19
Caution
The compressor wheel blades can be easily damaged
when the compressor housing is installed.
Caution
Do not bend location pin fitted in compressor housing
during assembly.
Carefully turn the loose assembly on to the compressor
housing inlet face.
Locate retaining ring over CHRA. Using suitable circlip
pliers, fit the retaining ring.
Tap ends of retaining ring lightly with hammer and drift
to ensure that the retaining ring is properly located into
its groove in the bearing housing.
Warning
Always wear safety glasses when refitting retaining
rings.
Pre-set Wastegate Actuator Reassembly
Caution
Contact your local approved dealer for the correct
replacement actuator kit (74). It is important to quote
the correct turbocharger assembly number, serial
number and type to ensure the supply of the correct
pre-set actuator.
Note
When refitting existing actuator the end link (76) will
be locked in the correct setting.
