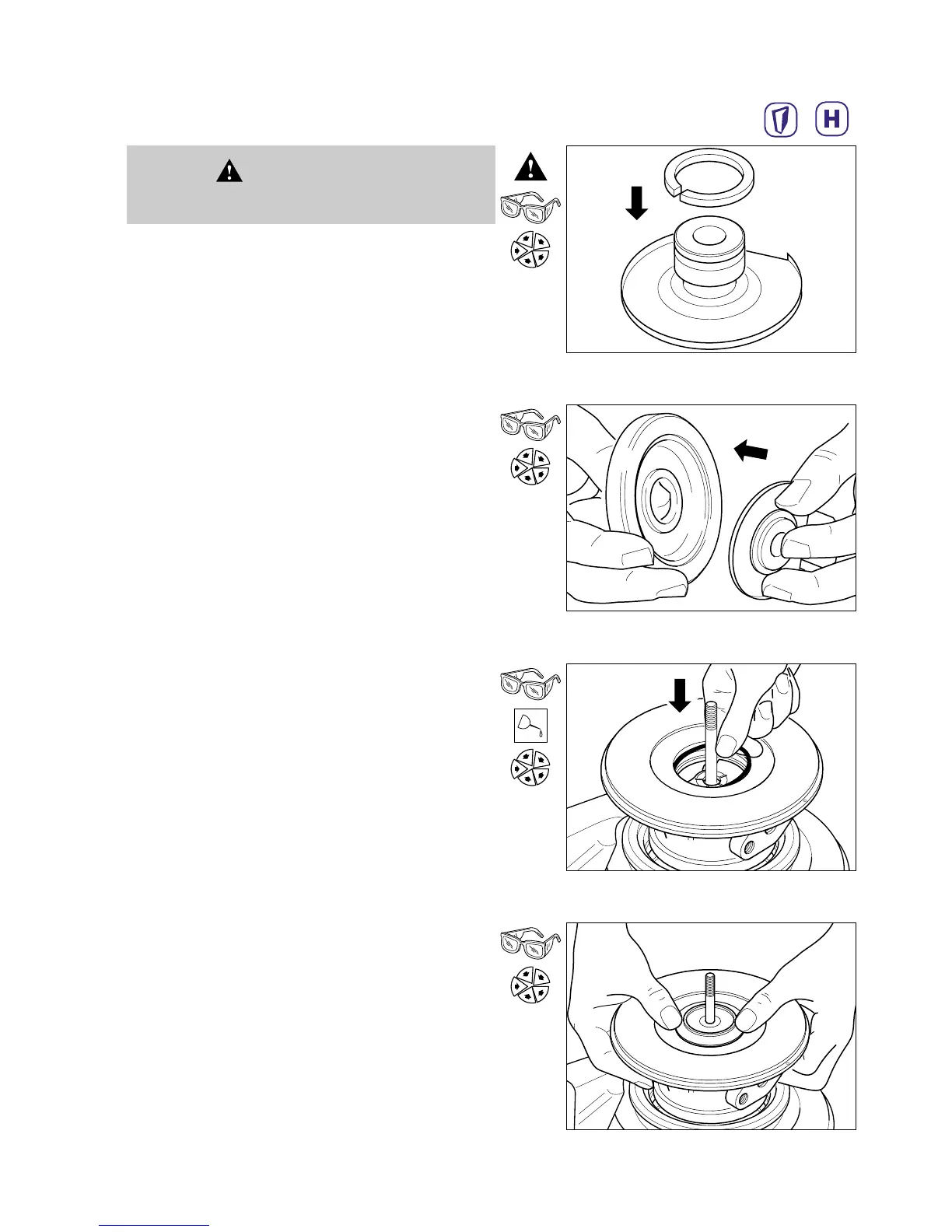

Loosely assemble oil baffle (33) to oil slinger (31).
Complete sub-assembly by fitting new split ring seal,
turbine (13)
*
to oil slinger/ oil baffle loose assembly.
HX25/25W/27W Service Repair Manual Turbocharger Service and Overhaul
5:15
Insert oil slinger assembly into oil seal plate (43).
Lightly oil the o-ring seal, bearing housing (32) and
insert.
The oil seal plate assembly will require finger pressure
to overcome o-ring pre-compression and achieve its
axial location.
Warning
Always wear safety glasses when refitting sealing
rings.
