9 Installation
9.1 Installation notes
Through high quality microelectronics SunCash is able to reach
a high standard of reliability. Only if the installation has been pro-
fessionally carried out can the device be guaranteed. During the
installation pay attention to …
● Onlyauthorisedandqualiedelectricianscarryouttheins-
tallation complying with the valid VDE regulations.
● For the electrical connection use only cable of the type
NYM-J 3x1,5 mm².
● The SunCash needs a protective conductor connection.
● Theoorcoveringisantistaticandconductorcapable,to
ensure a minimum of static charge and so reducing the
danger to the electronics.
● the SunCash cannot be operated in the case of damage to
the supply cable or to the SunCash itself.
9.2 Mounting notes
● TheSunCashisastandingdevice.Toassuresu󰀩cientsta-
bility the SunCash must be additionally anchored to a secu-
re wall (no light building bricks). Under the base-plate are
two drilled holes, which allow an additional securing of the
 base-platetotheoor.Thefoot-platecanberemovedby
the four countersunk screws.
● The SunCash must be mounted horizontally and vertically
 level,toguaranteeaawlessfunctionofthecoinreceiver
and mechanical door latch. That means the inclination
angle of the device can only be maximal 2°, forwards or
backwards as well as to the right or to the left.
9.3 Mounting instruction
● The SunCash is conforms to protection type IP 20 and may
only be used in dry rooms.
● The SunCash should be mounted with the help of a water
level.
The angle of inclination may be a maximum of 2°only.
With the door wide open mark the 4 drilled holes, which
are shown under position 2.2 with the number 3
● Drill the Ø12 mm holes and insert suitable dowels. Fit the
electrical supply cable through the appropriate holes, un-
der position 2.2 number 8. The SunCash can then, with
 theappropriatescrews,besecuredrmly.SunCashisme-
 anttobemountedtolimestonewallsorcementedoors.
 Withallothertypesofwalls/oors,themountingmethod
must be strengthened. Light building bricks are not suitable
for clamp SunCash.


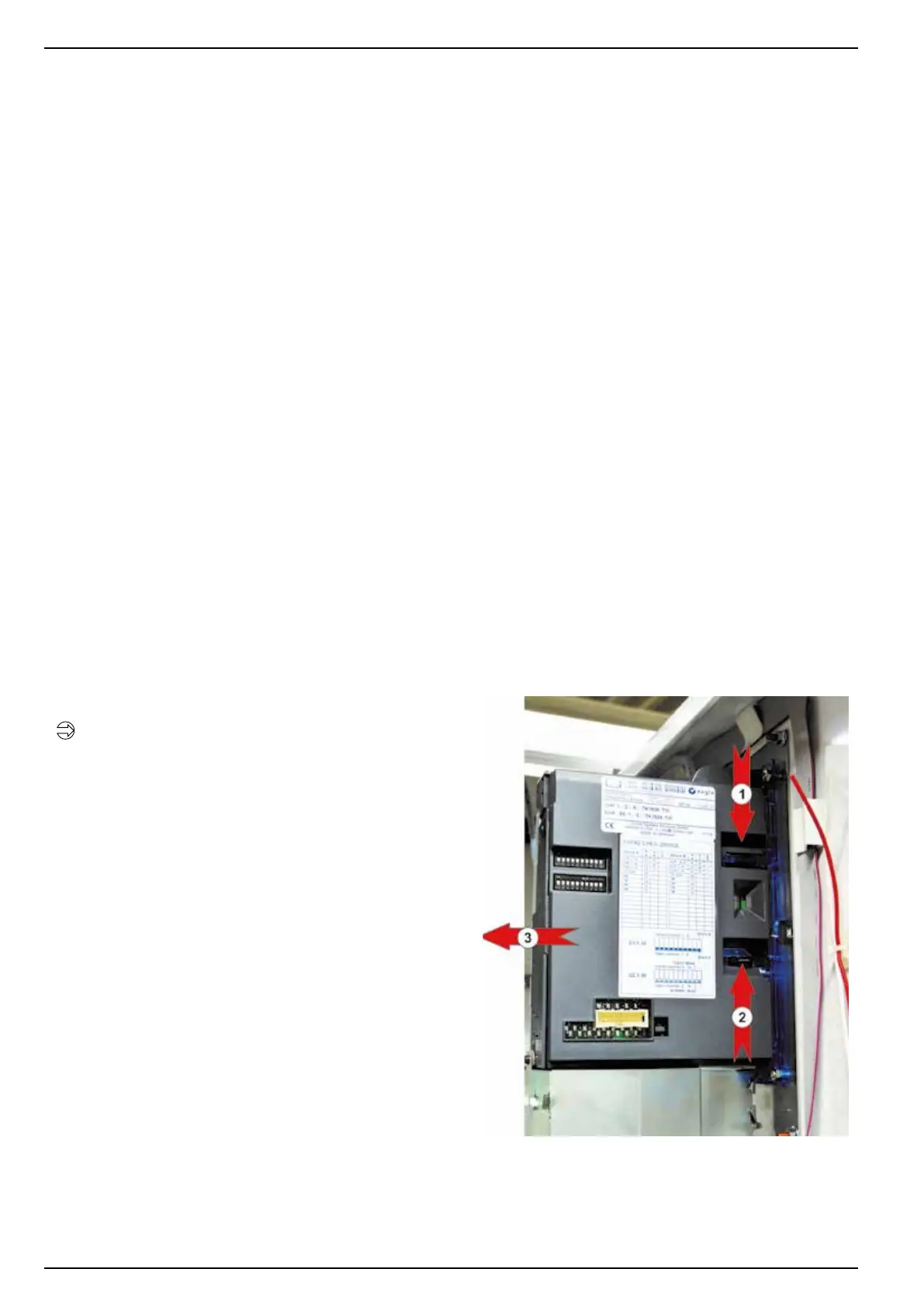

9.4 Mounting draft for the electronic multiple
coin tester
Installation and removal is very easy and can be done, only when
the operating voltage is out. Proceed according to the numbers.
Press the two clamps to the middle (1+2), hold it and pull the coin
tester after behind from the holder (3)
