Holtkamp Electronics SUNCASH engl. techn. Stand 04.2016 4047_04.2016 V09.2019
- 8 -

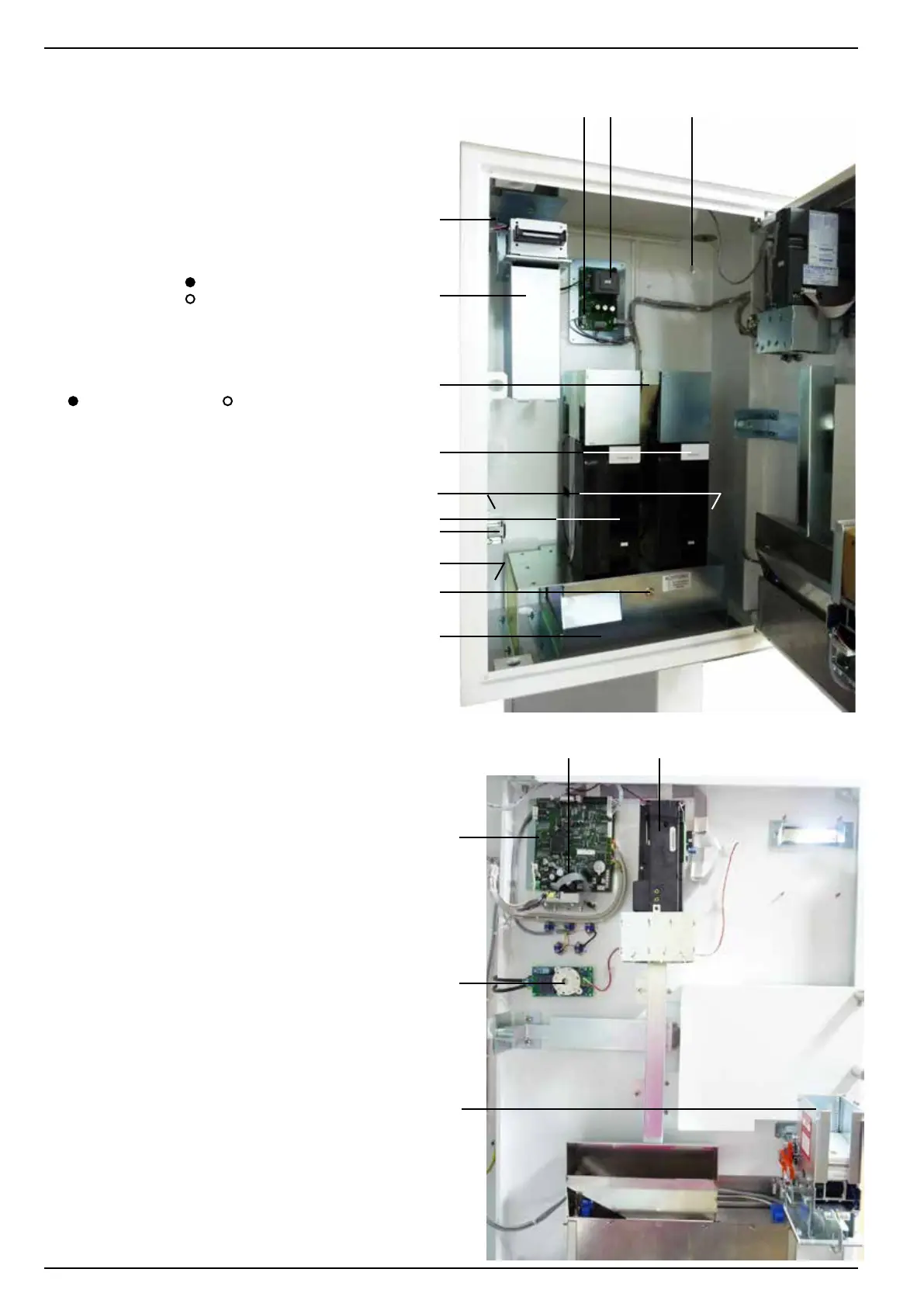

7.2 Illustration of the interior
123
3
3
4
5
6
7
9
10
11
1 RESET button for chip card dispenser
2 Fuse 315 mAT/2AT
3 Mounting holes
4 Electronic multiple banknote reader
5 Funnel to mixed coins, cash box
6 Coin hopper 1
7 Coin hopper 2
8 IEC connector 230 V connection
9 Power switch
10 Lock for cash drawer
11 Cash drawer
Standard optional
7.3 Illustration of the interior of the door
12
3
4
5
1 Circuit board
2 Chip card contact unit
3 Elektronic multiple coin tester
4 Tamper protection
5 Chip card dispenser
