HOLUX M-1000 Bluetooth GPS Receiver Manual
10

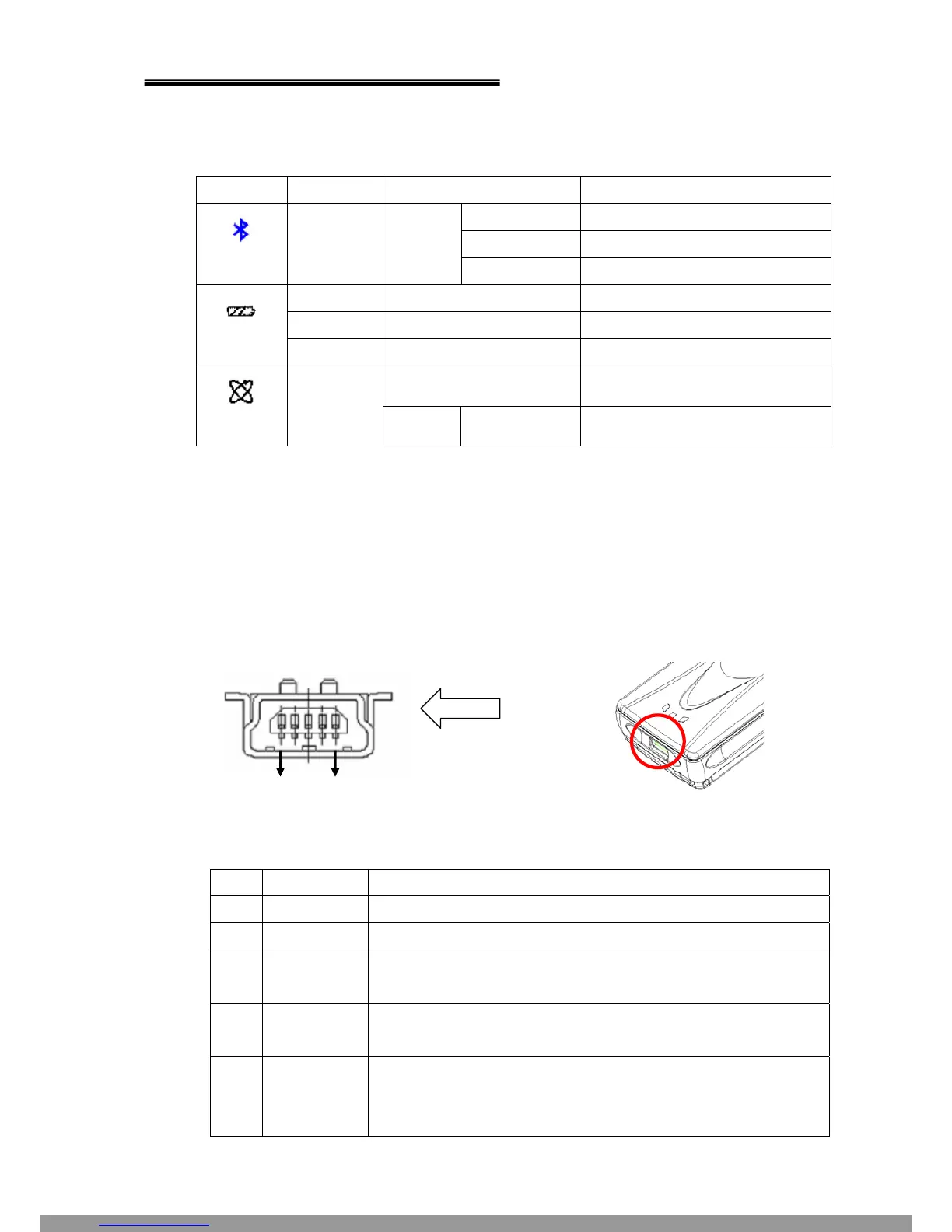

2). LED status :
SYMBOL COLOR STATUS DESCRIPTION
1 times / 1 sec Search Bluetooth Device
3). Power Switch :
a. Power on, Orange light is on.
b. Power off, Orange light is off.
4). Power Jack & Data Port, see Fig.3
Jack type: Mating face of 5 pin Mini USB Type B female.
Pin definition see table 1.
(Fig.3)
Table 1
Pin Pin Name Signal and description
1 GND Signal ground, Battery charging ground.
2 NC
3 TXD
Transmit Data. From organizer to peripheral.(Voltage Level
is 3.3V ~ 5.0V).
4 RXD
Receive Data. Form peripheral to organizer.(Voltage level
is 3.3V ~ 5.0V).
5 VCHARG
Positive terminal of DC adaptor that powers the internal
charging circuit of Li-Ion battery. The approved power
supply is 5.0V +/- 5%@800mA.
1 time / 1 sec Standby Mode
Bluetooth
Blue Blinking
1 time / 3 sec Transferring Data
Red Light on Power too low
Green Light on In charging
Battery
N/A Light off Battery full or Not in charging
Light on Acquiring Satellites
GPS
Orange
Blinking 1 time / 1 sec Position Fixed
5
1
This Manual: http://www.manuallib.com/file/2551106

Holux M-1000 Specifications

General

Product color	Black
WAAS capability	Yes
Channels quantity	32 channels
GPS accuracy - position	2.2, 5 m
GPS accuracy - velocity	0.1 m/s
Bluetooth version	1.2
Battery capacity	50 mAh
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	43 mm
Width	65 mm
Height	17.6 mm
Weight	53 g
