Holux M-1000 User Manual

HOLUX M-1000 Bluetooth GPS Receiver Manual
3
1. Overview

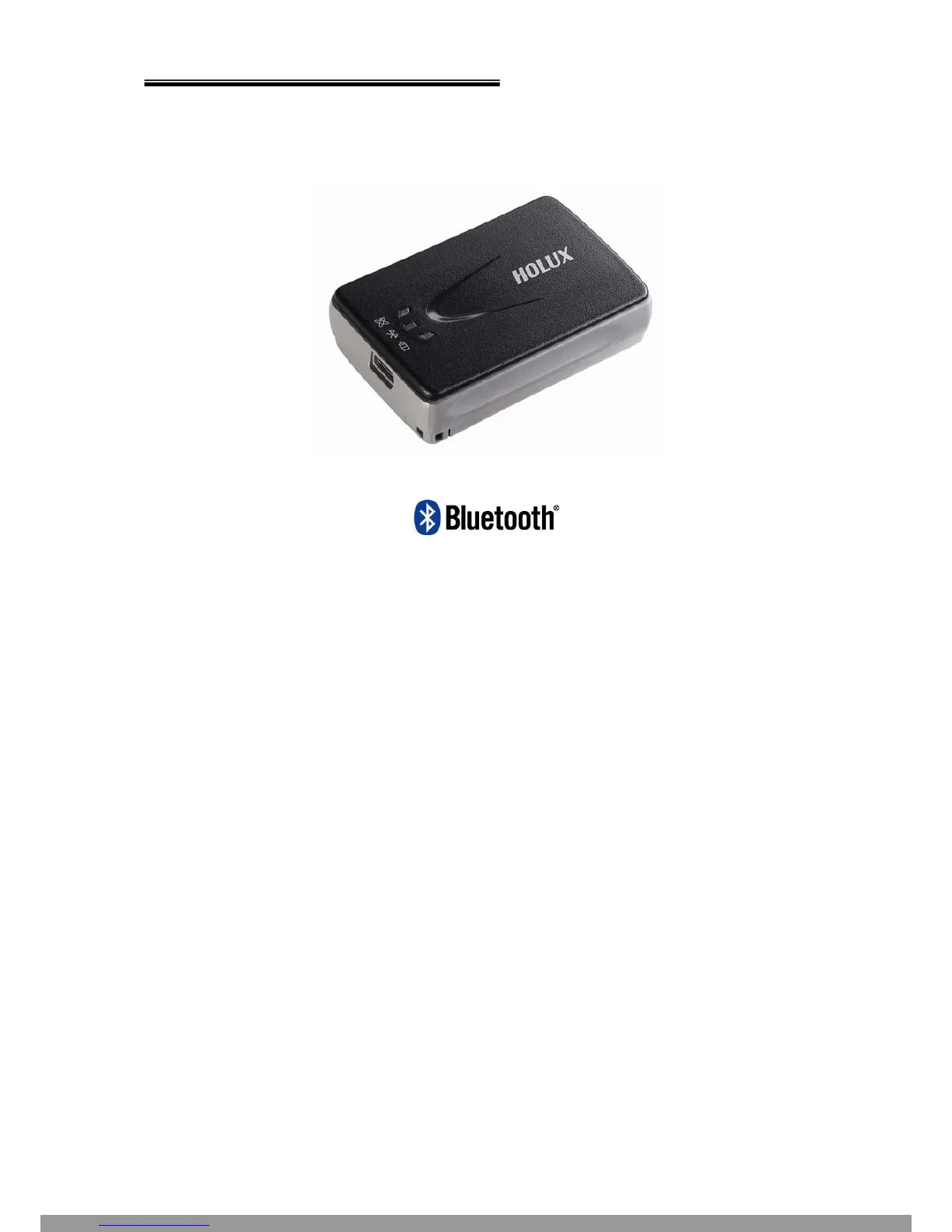

(Fig.1)
The HOLUX M-1000 Bluetooth GPS Receiver (Fig. 1) is a total solution GPS
receiver with Bluetooth, UART interface and built-in rechargeable battery for high
sensitivity to tracking signal. M-1000 design is based on Media Tek Inc.(MTK) GPS
solution-MT3318 low power Architecture.
M-1000 is a dual-function GPS receiver. Not only transmit satellite information
through the PDA or Notebook by Bluetooth interfaces but also is a G-Mouse GPS
receiver through a HOLUX designed data cable (Optional cable, see chapter 6 ) to
deliver satellite signal to the device without Bluetooth interface.
M-1000 meets the requirement of field application, such as car navigation, mapping,
agriculture surveying and security use under clear view of sky. M-1000 contacts to other
device through Bluetooth interface, and built-in rechargeable Li-ion battery to save
satellite information such as the status of satellite signal, the previous available location,
date and time.
With the advanced technology, M-1000 can track up to 32 satellites simultaneously,
re-acquires satellite signals in 0.1 microsecond and updates position data per second.
This Manual: http://www.manuallib.com/file/2551106

Holux M-1000 Specifications

General

Product color	Black
WAAS capability	Yes
Channels quantity	32 channels
GPS accuracy - position	2.2, 5 m
GPS accuracy - velocity	0.1 m/s
Bluetooth version	1.2
Battery capacity	50 mAh
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	43 mm
Width	65 mm
Height	17.6 mm
Weight	53 g
