Holux M-1000 User Manual

HOLUX M-1000 Bluetooth GPS Receiver Manual
14

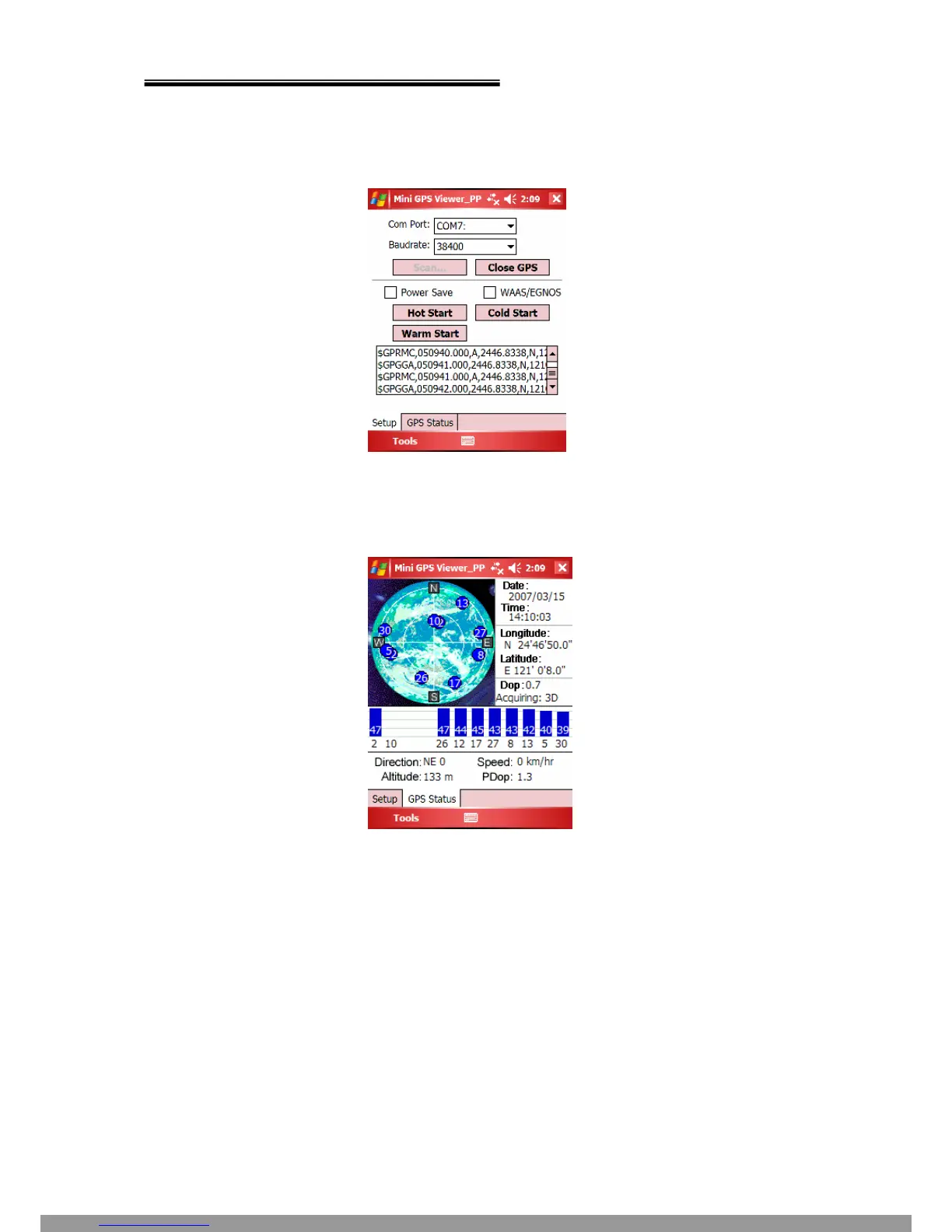

2) Setup the Baud rate : 38400, then tap “Scan” button to scan your COM Port.
Select your COM Port respectively, then tap “Open GPS” button. Check log
screen below if the satellite data is receiving correctly.
(Fig. 6)
3) Select “GPS Status” panel to observe the GPS information status , see Fig. 7.
(Fig. 7)
4) In “setup” panel you can see “Hot Start”、“Warm Start”、“Cold Start”、which allow
you to re-acquisition of Ephemeris and Almanac. Basically the satellites are
always moving in the sky, if Ephemeris and Almanac data in GPS receiver can’t
meet real satellites status upon you if GPS receiver is over 0.5 hour power off but
you are no longer in the previous position , it takes more time for the GPS receiver
to get GPS position fix soon. We suggest you can click “Cold Start” or “Warm
start” to re-acquisition. Or you can remove the battery for 3 seconds and reinsert it,
this operation is the same with “Cold Start”.
This Manual: http://www.manuallib.com/file/2551106

Holux M-1000 Specifications

General

Product color	Black
WAAS capability	Yes
Channels quantity	32 channels
GPS accuracy - position	2.2, 5 m
GPS accuracy - velocity	0.1 m/s
Bluetooth version	1.2
Battery capacity	50 mAh
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	43 mm
Width	65 mm
Height	17.6 mm
Weight	53 g
