5. Getting Started
STEP 1. Charge Battery
Please charge battery till LED off for the first time.
Power cable plug in Power cable connect to power socket
↓
Charge Battery
Battery indicator light:
Power too low -------- Red LED
Charging -------------- Green LED
Full or Not in charging -- LED off

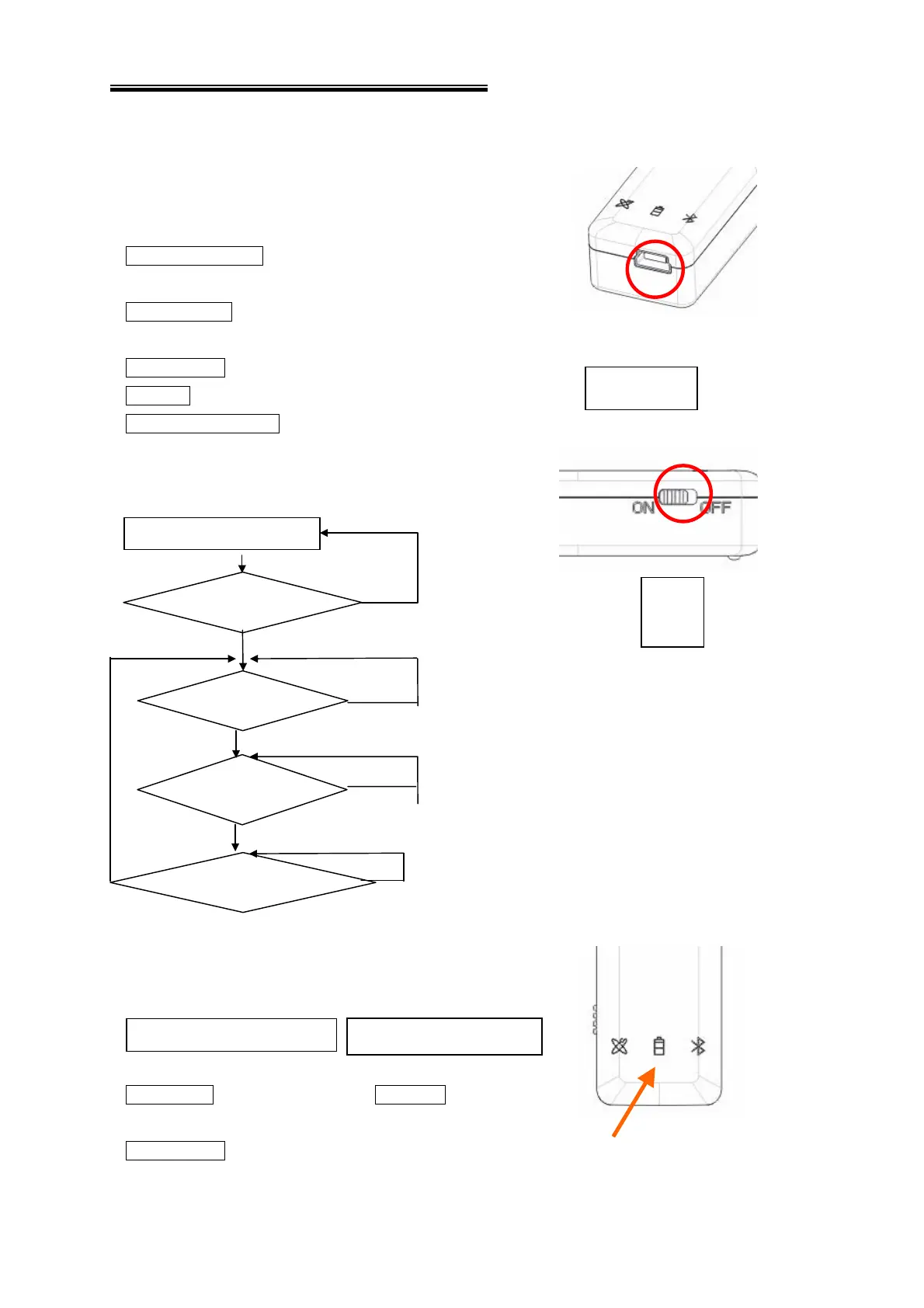

STEP 2. Turn on the power
Bluetooth Status –
Note:
Some PDAs have to re-open
Bluetooth manager for
Bluetooth device
re-connection.
GPS Status ---
Put
M-1200XX in clear view of the sky without any obstruction
for better satellite acquiring.
↓ ↓
Search GPS -- Power Off --
↓
Position Fixed --
Power
switch
Turn on M-
1200
power
Blue LED blinking
(1time / 1sec)
Transferring…
Blue LED blinking
(1time / 3 sec)
Waiting for
reconnection…
Blue LED blinking
(1time / 1sec)
No
Searching
Bluetooth device
Stop data
transferring?
Data
is transferrin
g
?
Reconnect
Bluetooth device?
No
No
No
Yes
Yes
Yes
Yes
Turn on M-
1200
power
Turn off M-
1200
power
Steady orange
LED on
Orange
LED blinking
Orange
LED off
Mini USB socket
