Holzmann TS 250 - Screw the Suction Hose Adapter; Assemble Rip Fence; Table Mount Bracket Plates

ASSEMBLY
HOLZMANN Maschinen Austria www.holzmann-maschinen.at Seite 41
Tischkreissäge / table saw TS 200 / TS 250

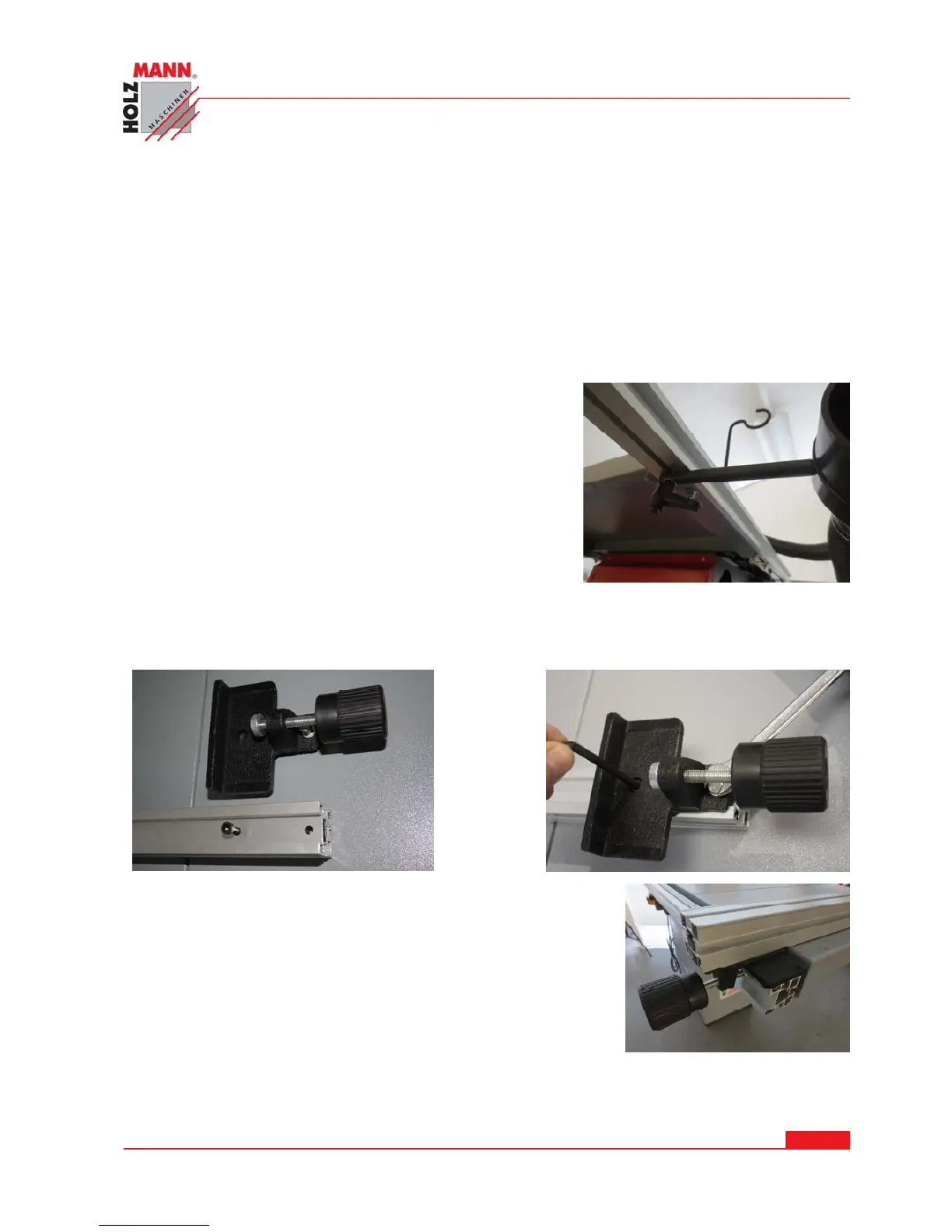

13.3.10 Table mount bracket plates
 Loosen the screws on the table kicker plate so far that they can be moved left and right in the
groove of the aluminum profile.
CAUTION:
 After insertion of the first plate, the suction hose bracket can be mounted. -see 6.2.11 -
 Otherwise, follow up on the 2nd plate and tighten all screws.
13.3.11 Screw the suction hose adapter
 The suction hose adapter here, or inserted elsewhere in
the groove of the aluminum profile.
13.3.12 Assemble rip fence
Screw the adapter as shown on the aluminum profile and slide it
into the rip fence guide profile.
