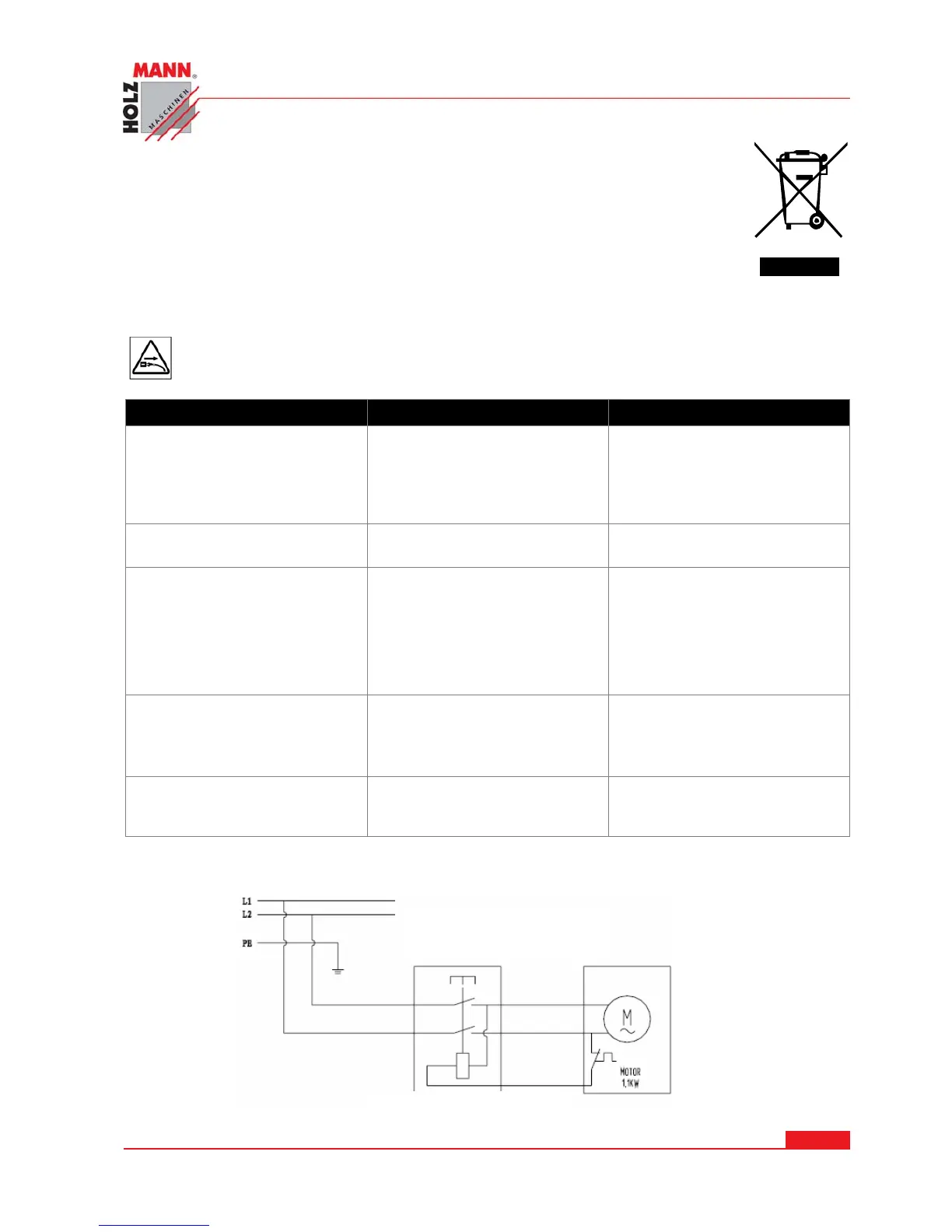

Holzmann TS 250 - 17 TROUBLESHOOTING; Troubleshooting Table; 18 ELEKTRISCHE SCHALTUNGEN; ELECTRIC DIAGRAM; Electric Diagram

TROUBLESHOOTING
HOLZMANN Maschinen Austria www.holzmann-maschinen.at Seite 48
Tischkreissäge / table saw TS 200 / TS 250
16.4 Disposal
Do not dispose of the TS 200 / 250 in residual waste. Contact your local authorities
for information regarding the available disposal options. When you buy at your
local dealer for a replacement unit, the latter is obliged to exchange your old
17 TROUBLESHOOTING
Disconnect the machine from the power supply prior to any checks performed
at the machine itself !
Trouble Possible cause Solution
Machine does not start  Emergency stop switch to
switch off
 switch is broken
 Turn the emergency OFF
switch to the right to unlock
to
 Repair the the switch
Burn marks on the work-
piece
 The blade is blunt  Replace the blade
The finished size of the
machined workpiece does
not correspond to the set
cutting width on rip fence
 Adjusted measurement
scale for the cutting width
display
 Setting dimension scale: cut
workpiece on the rip fence,
measure the workpiece and
the measuring scale move
so that the measured aver-
age width is shown at the
edge of the ruler
Workpiece clamped in ad-
vancing
 dull blade
 Riving knife thickness does
not match the used blade
 Replace with sharp blade
 Splitting wedge thickness
must be greater than or
equal to blade thickness.
Broken edges on the
workpiece
 The scoring saw is not on
the same line with the main
saw
 Set the scoring saw a new
18 ELEKTRISCHE SCHALTUNGEN / ELECTRIC DIAGRAM
elektromagnetischer
Sc
h
a
l
te
r
electromagnetic switch
