Spare parts
KGZ Series | Version 2.02 | EN 31
13.2Spare parts drawing KGZ 210 E
The following drawings should help in case of service to identify necessary spare parts. To order, send a copy of the part
drawing with the marked components to your authorized dealer.

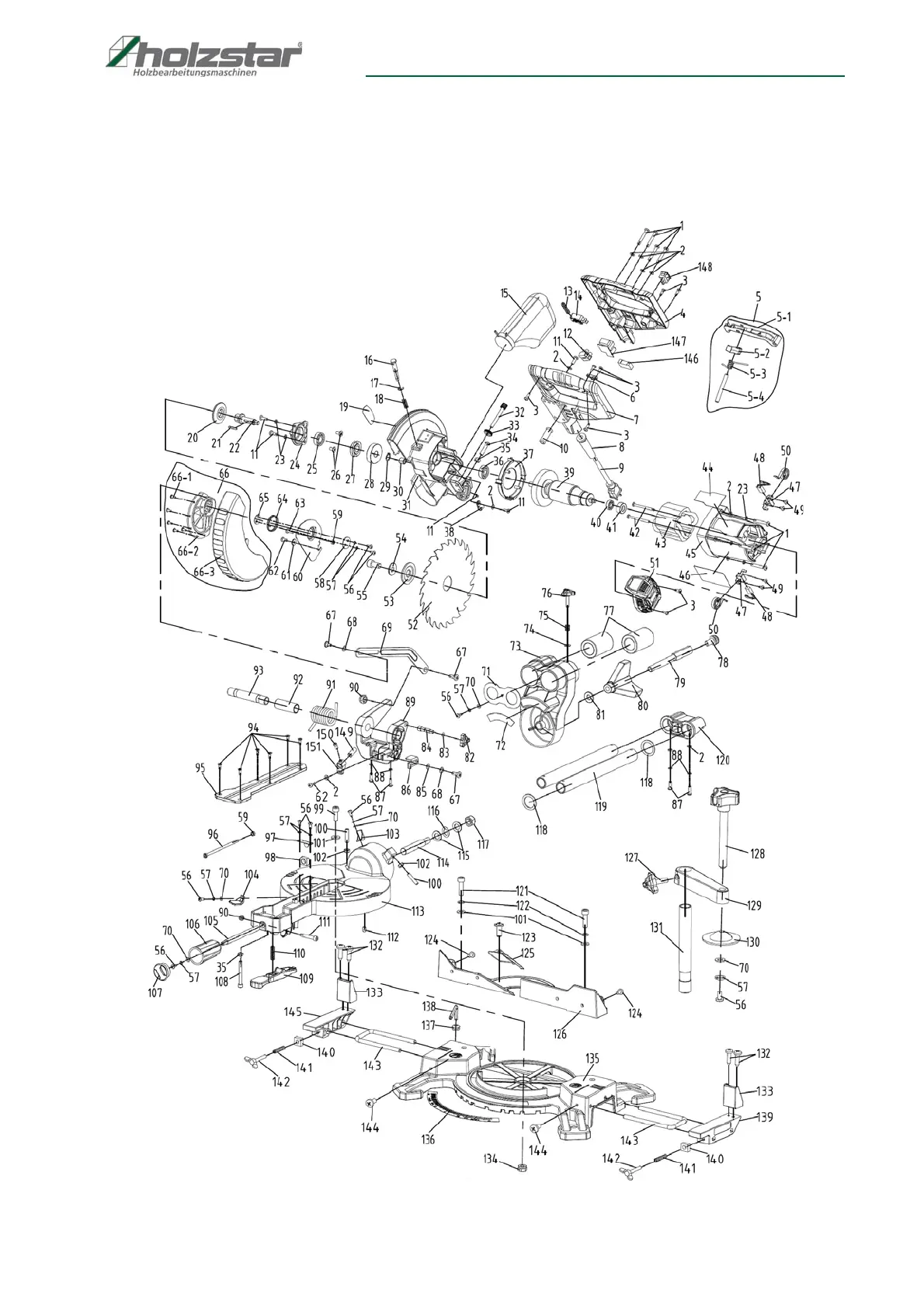

Fig. 22: Spare parts drawing KGZ 210 E
