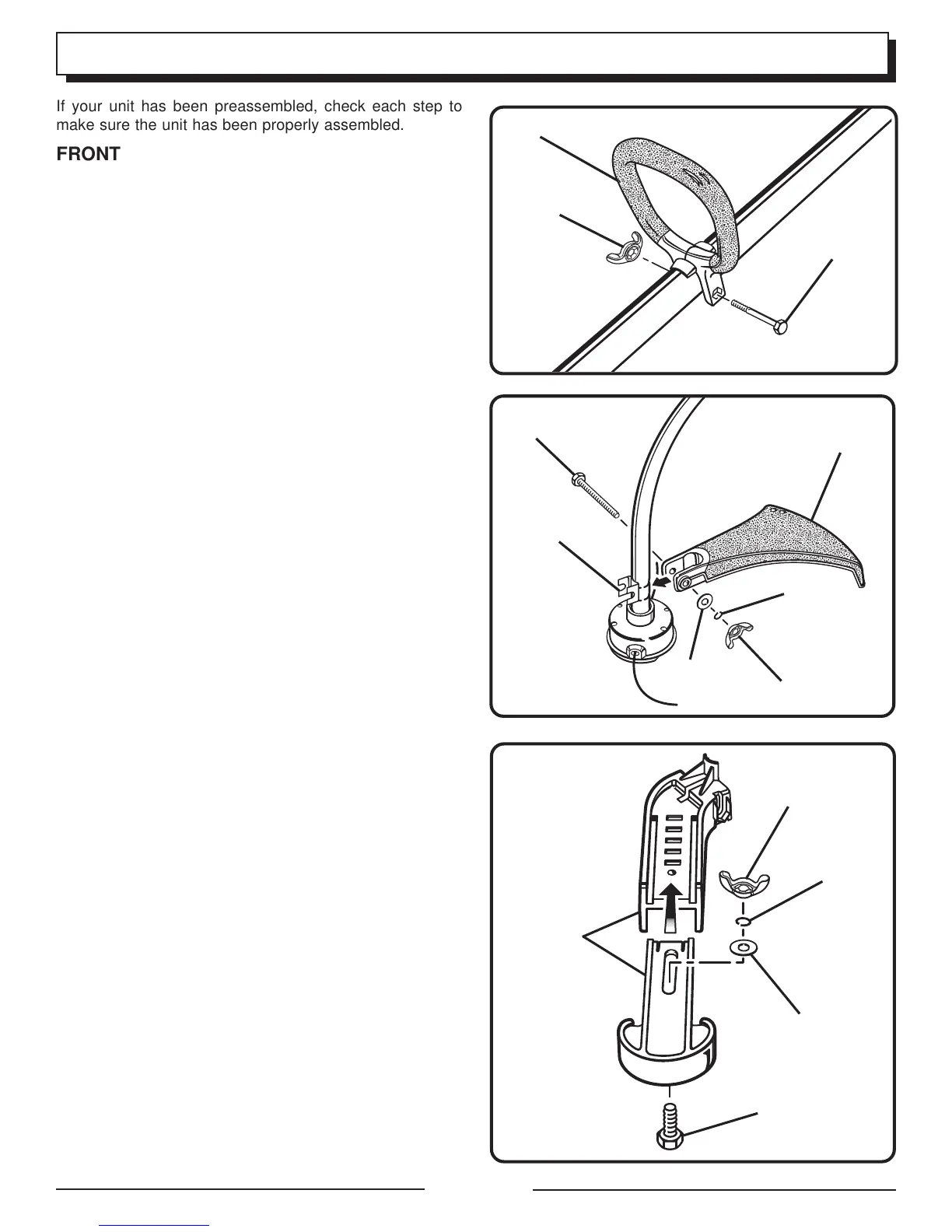

Page 10
If your unit has been preassembled, check each step to
make sure the unit has been properly assembled.
FRONT HANDLE
See Figure 2.
1. Remove the front handle, bolt, and wing nut from the
Owner’s Kit.
2. Install the front handle onto the top side of the drive
shaft housing and move it to a comfortable position.
3. Place the bolt through the front handle as shown, then
install the wing nut.
4. Tighten wing nut securely.
CURVED SHAFT GRASS DEFLECTOR WITH-
OUT EDGER GUIDE - TRIMLITE AND TRIM ‘N
EDGE
See Figure 3.
1. Remove wing nut, flat washer, lock washer, and bolt
from the Owner’s Kit.
2. Place curved shaft grass deflector over shaft and
bracket.
3. Install bolt through the slots in the tabs on grass
deflector and bracket on shaft housing.
4. Install flat washer, lock washer and wing nut.
5. Tighten Securely.
CURVED SHAFT GRASS DEFLECTOR WITH
EDGER GUIDE - TRIM ‘N EDGE ONLY
EDGER GUIDE ASSEMBLY
See Figure 4.
1. Assemble the two plastic pieces of the edger guide
together using the short bolt, flat washer, lock washer
and wing nut.
2. Slide the edger guide to adjust it to the desired trim-
ming length.
3. Tighten the wing nut securely.
GRASS
DEFLECTOR
BRACKET
BOLT
WING NUT
Fig. 3
WING NUT
FRONT HANDLE
BOLT
Fig. 2
FLAT
WASHER
LOCK WASHER
ASSEMBLY
EDGER GUIDE
PIECES
SHORT BOLT
FLAT WASHER
LOCK
WASHER
WING NUT
Fig. 4
