Homelite WF10MSP User Manual

18
ASSEMBLY

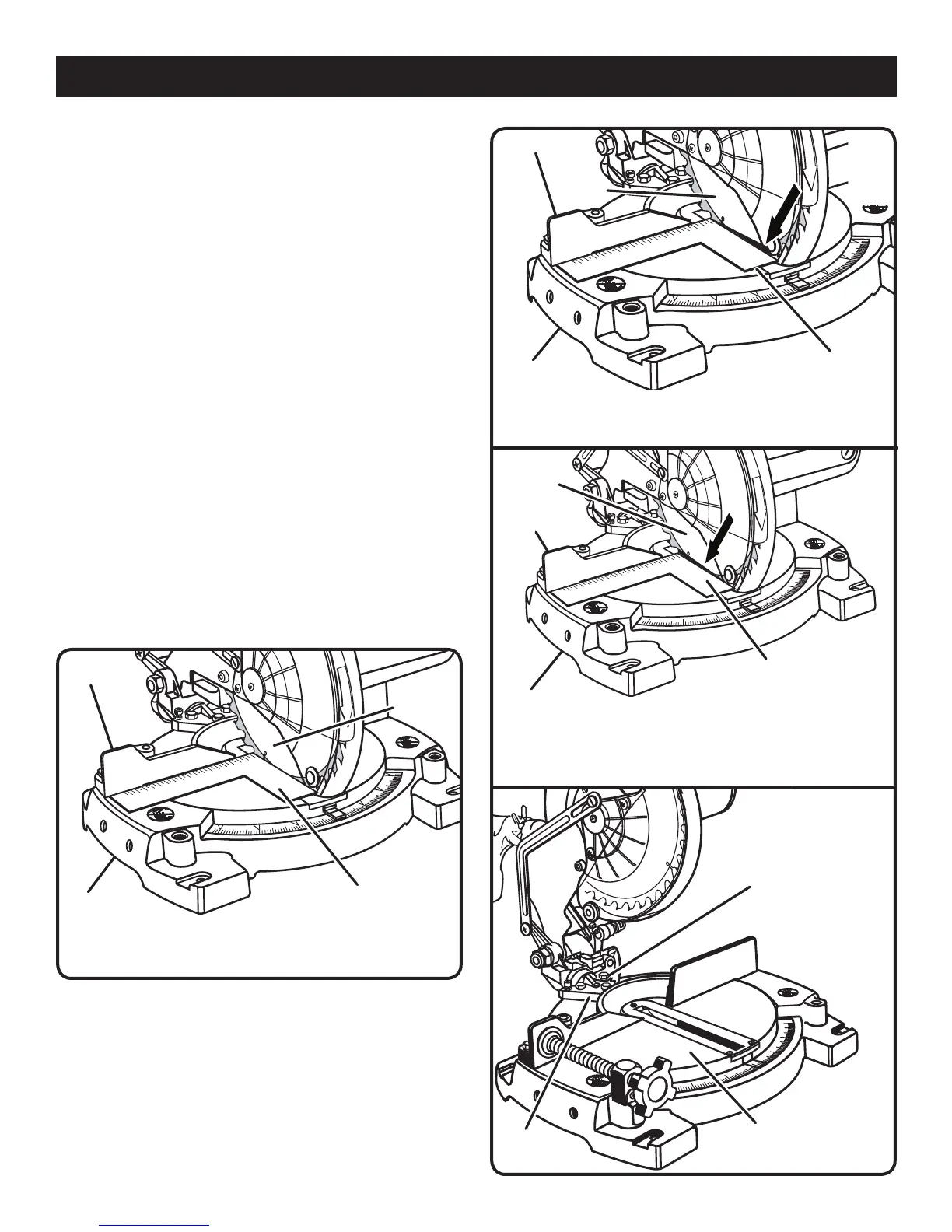

SQUARING THE SAW BLADE TO THE FENCE
See Figures 16 - 19.
 Unplug your saw.
 Pull the saw arm all the way down and engage the lock
pin to hold the saw arm in transport position.
 Loosen the miter lock levers.
 Rotate the miter table until the pointer is positioned
at 0
°
.
 Securely tighten the miter lock levers.
 Lay a framing square flat on the miter table. Place one
leg of the square against the fence. Slide the other leg
of the square against the flat part of saw blade.
NOTE: Make sure that the square contacts the flat part
of the saw blade, not the blade teeth.
 The edge of the square and the saw blade should be
parallel as shown in figure 16.
 If the front or back edge of the saw blade angles away
from the square as shown in figures 17 and 18, adjust-
ments are needed.
 Using a 14 mm wrench, loosen the hex head screws that
secure the mounting bracket to the miter table.
 Rotate the mounting bracket left or right until the saw
blade is parallel with the square.
 Retighten the screws securely and recheck the blade-to-
fence alignment.
VIEW OF BLADE NOT SQUARE WITH FENCE,
ADJUSTMENTS ARE REQUIRED
Fig. 18
Fig. 17
VIEW OF BLADE NOT SQUARE WITH FENCE,
ADJUSTMENTS ARE REQUIRED
Fig. 16
BASE
VIEW OF BLADE
SQUARE WITH FENCE
BLADE
FENCE
FRAMING
SQUARE
BASE
BLADE
FENCE
FRAMING
SQUARE
BASE
BLADE
FENCE
FRAMING
SQUARE
Fig. 19
MOUNTING
BRACKET
MITER
T
ABLE
HEX HEAD
SCREW(S)
